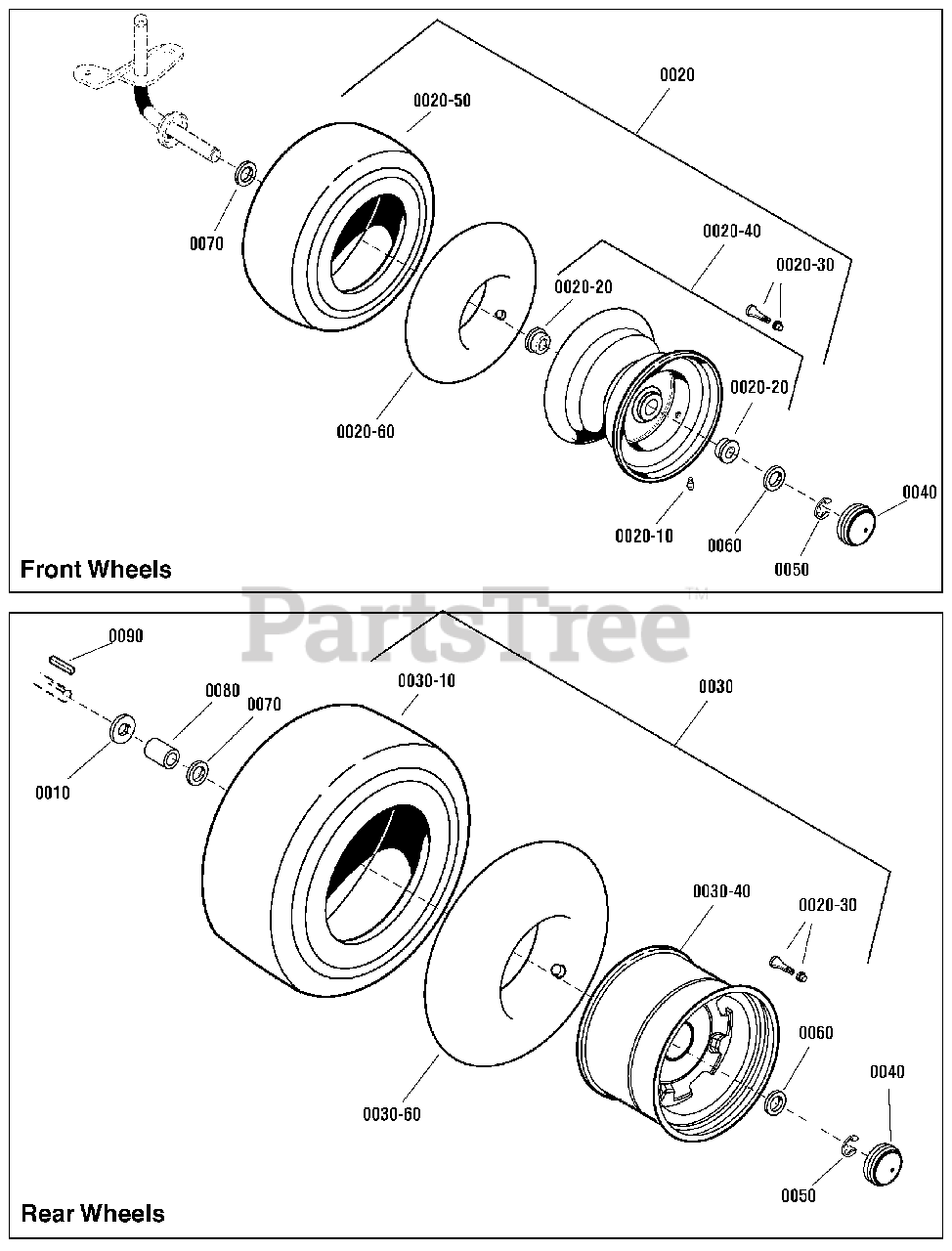

MF 2000 (2691221-00) - Massey Ferguson Lawn Tractor, 22hp Briggs & Stratton Wheels & Tires Group Parts Diagram

Lawn Tractor, 22hp Briggs & Stratton

Wheels & Tires Group Parts Diagram

  • Title

0010

Simplicity 2860202SM

WASHER, 3/4 x 1-5/8 OD x 1/8 Thick

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 1729708SM

WHEEL & TIRE ASSEMBLY, Front

$168.99

$

Usually ships in 2-12 days

0

0020-10

Simplicity 2812808SM

FITTING, Lube, 1/4

$4.49

$

In Stock, Qty 20+

0

0020-20

Simplicity 1742259YP

BEARING 3/4" ID Hard
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0020-30

Simplicity 2172353YP

VALVE STEM & CAP, Air .453 Dia 0.88 Long
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0020-40

Simplicity 1726301SM

WHEEL & BUSHINGS ASSEMBLY, Front

$82.99

$

In Stock, only 1 left!

0

0020-50

Simplicity 1731951SM

TIRE, 15 x 6 - 6, Turf Rider

$131.99

$

In Stock, Qty 8

0

0020-60

Simplicity 1664090SM

TUBE

$26.99

$

In Stock, only 3 left!

0

0030

Simplicity 7101560YP

WHEEL & TIRE ASSEMBLY, 20 x 8.0-8

Note: (42" Models Only)

$274.99

$

In Stock, only 1 left!

0

0030-10

Simplicity 7101559YP

TIRE, 20 x 8-8, K358

Note: (42" Models Only)

$222.99

$

Usually ships in 2-12 days

0

0030-40

* RIM

Note: (All Models)

$

$

Not available

0030-60

Simplicity 2164247SM

TUBE

Note: (42" & 46" Models Only)

$40.99

$

Usually ships in 2-12 days

0

0040

Simplicity 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

0050

Simplicity 0011X3MA

E-RING, 3/4D, 1/2T

$5.49

$

In Stock, Qty 20+

0

0060

Simplicity 17X195MA

WASHER, Flat

$4.99

$

In Stock, only 4 left!

0

0070

Simplicity 17X160MA

WASHER, Flat, 3/4 x 1-1/4 x 16

$4.99

$

In Stock, Qty 20+

0

0080

Simplicity 1730181SM

SPACER, 3/4 ID x 1-1/4 OD x 1.65

$9.49

$

In Stock, only 2 left!

0

0090

Simplicity 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0
