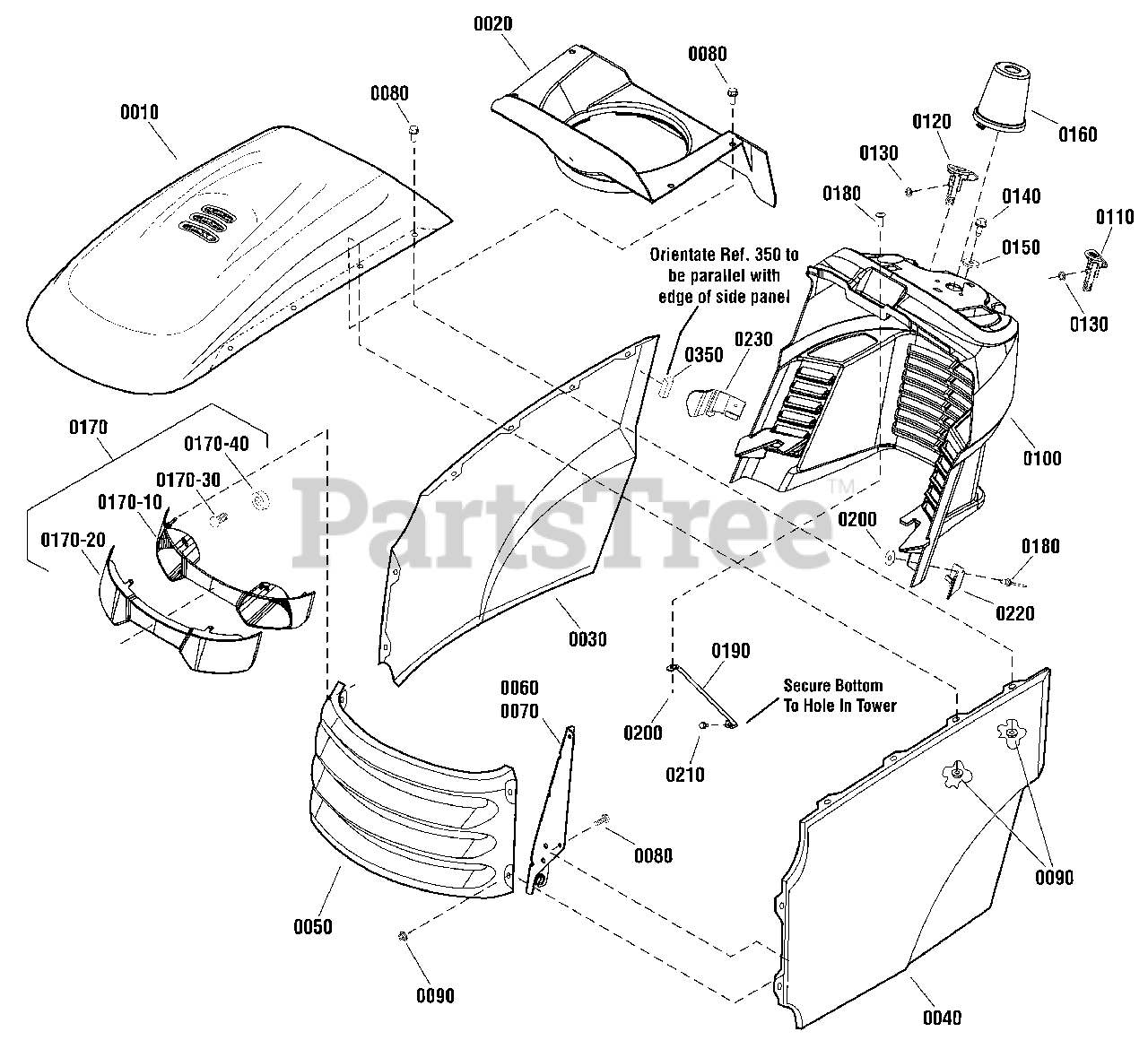

MF 2000 (2691189-00) - Massey Ferguson 42" Lawn Tractor, 22hp Briggs & Stratton Hood, Grille & Dash Group Parts Diagram

42" Lawn Tractor, 22hp Briggs & Stratton

Hood, Grille & Dash Group Parts Diagram

  • Title
0010

Simplicity 1728031DSM

HOOD, with Scoop

$311.99

$

In Stock, only 1 left!

0

0020

Simplicity 7102326YP

AIR DUCT, Plenum

$131.99

$

In Stock, only 1 left!

0

0030

Simplicity 1728029DSM

PANEL, Hood RH Side

$108.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1728030DSM

PANEL, Hood LH Side

$100.99

$

Usually ships in 2-12 days

0

0050

$116.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1727279BMYP

HINGE, Hood, L.H.

$20.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1727280BMYP

HINGE, Hood RH

$

$

Not available

0080

Simplicity 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0090

Simplicity 703161

NUT, 1/4-20, Hex Flange Whiz Lock, G5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0100

$202.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1728089SM

KNOB, Brake Lock

$7.49

$

In Stock, only 4 left!

0

0120

Simplicity 1728090SM

KNOB, Cruise Lock

$7.49

$

In Stock, Qty 10

0

0130

Simplicity 703826

NUT, Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 703235

SCREW, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0160

Simplicity 1727999SM

COVER, Steering Shaft

$17.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1727296SM

HEADLIGHT ASSEMBLY

$237.99

$

In Stock, Qty 7

0

0170-10

Simplicity 1728973SM

REFLECTOR
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

0170-20

Simplicity 1728974SM

LENS
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

0170-30

Simplicity 1677371SM

BULB, 1141-12V 21CP

$30.99

$

In Stock, only 1 left!

0

0170-40

Simplicity 1723451SM

SOCKET ASSEMBLY

$28.99

$

In Stock, only 1 left!

0

0180

Simplicity 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1723123SM

ROD, Dash Support, 10"

$11.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703412

NUT, Nylock, #10-24, GR2

$4.49

$

In Stock, only 2 left!

0

0210

Simplicity 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 7

0

0220

Simplicity 1732030SM

GUIDE, Hood, L.H.

$7.49

$

In Stock, only 2 left!

0

0230

Simplicity 1732031SM

GUIDE, Hood, R.H.

$7.49

$

In Stock, Qty 5

0

0350

Simplicity 1754094YP

POSITIONER, Hood

$8.49

$

Usually ships in 2-12 days

0
