MF 2000 (2691189-00) - Massey Ferguson 42" Lawn Tractor, 22hp Briggs & Stratton Controls Group Parts Diagram

42" Lawn Tractor, 22hp Briggs & Stratton

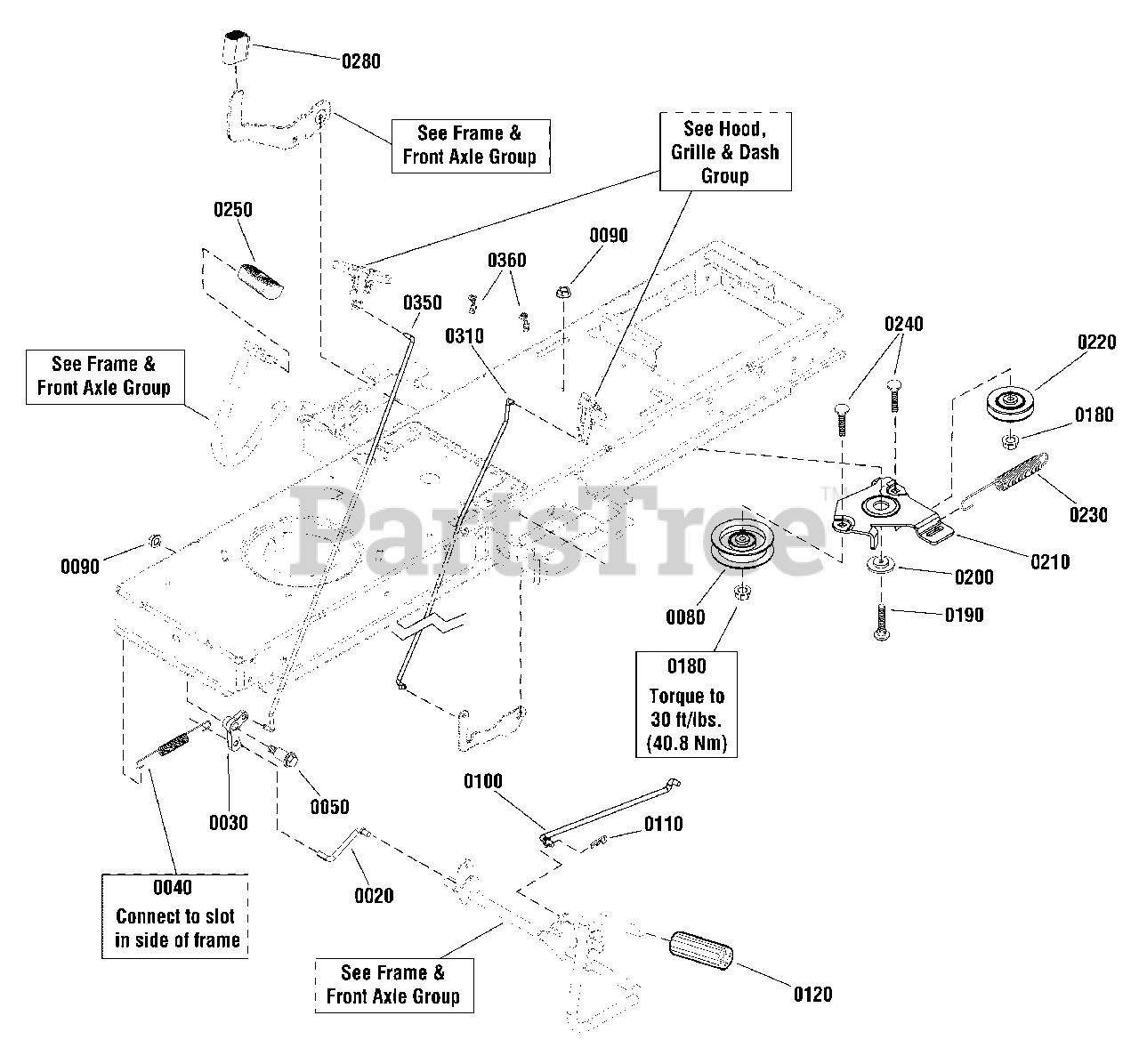

Controls Group Parts Diagram

  • Title
0020

Simplicity 1727899SM

ROD, Cruise Latch, 2.83 LG

$7.49

$

Usually ships in 2-12 days

0

0030

Simplicity 1727897SM

LATCH, Cruise

$9.99

$

Usually ships in 2-12 days

0

0040

Simplicity 2159181SM

SPRING, Tension, Clutch

$7.49

$

In Stock, only 1 left!

0

0050

Simplicity 1728976SM

BOLT, Shoulder, 5/16-18 G5

$6.49

$

In Stock, only 2 left!

0

0080

Simplicity 1728000SM

PULLEY, Idler

$18.99

$

In Stock, Qty 20+

0

0090

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0100

Simplicity 1727254SM

ROD, Brake Return

$15.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0120

Simplicity 1727261SM

PEDAL, Brake Rubber

$9.99

$

In Stock, only 4 left!

0

0180

Simplicity 703158

NUT, Hex Flange, ESNA, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0190

Simplicity 703800

BOLT, Carriage, 5/16-18 x 1

$3.99

$

In Stock, Qty 7

0

0200

Simplicity 1727935SM

SPACER, Pivot 0.330ID 1.76OD .37TH

$5.99

$

In Stock, only 1 left!

0

0210

Simplicity 1727894SM

BRACKET, Idler

$32.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1728001SM

PULLEY, 3 OD Plastic

$18.99

$

In Stock, Qty 20+

0

0230

Simplicity 1729620SM

SPRING, Extension 07.52

$8.49

$

In Stock, only 1 left!

0

0240

Simplicity 1931352SM

BOLT, Carriage, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 5

0

0250

Simplicity 1721675SM

PAD, Foot Pedal Forward

$

$

Not available

0280

Simplicity 1727259SM

PAD, Foot Pedal Reverse

$8.49

$

Usually ships in 2-12 days

0

0310

Simplicity 1727267SM

ROD, Parking Brake, 16.38 LG

$15.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1738760YP

ROD, Cruise Latch, 16.97 LG

$16.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1728111SM

CLIP, Linkage, Black

$6.99

$

In Stock, only 1 left!

0
