MF 2000 (2691189-00) - Massey Ferguson 42" Lawn Tractor, 22hp Briggs & Stratton 42" Mower Deck - Housing, Arbor & Blades Group Parts Diagram

42" Lawn Tractor, 22hp Briggs & Stratton

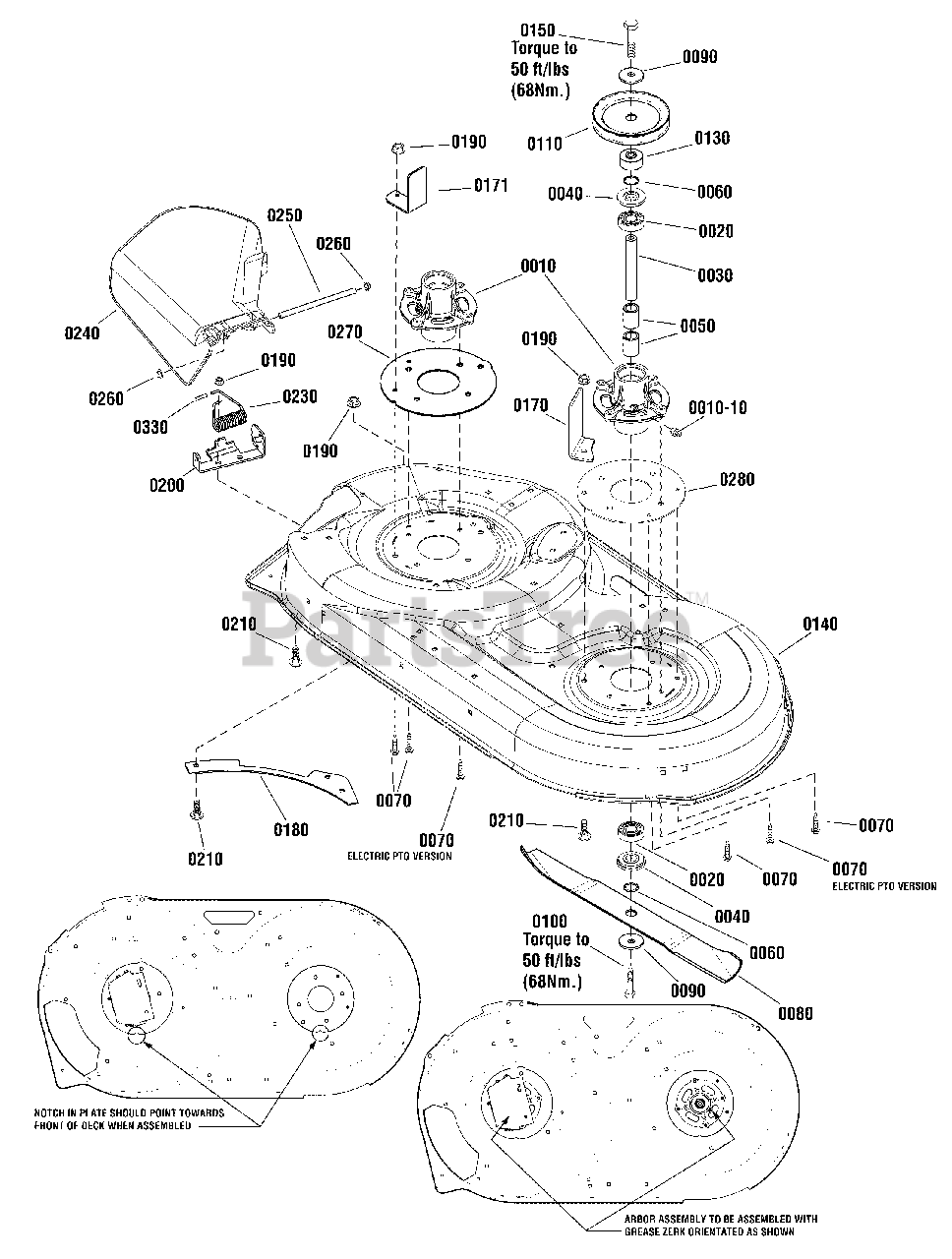

42" Mower Deck - Housing, Arbor & Blades Group Parts Diagram

  • Title

0010

Simplicity 1735573SM

HOUSING, Spindle

$

$

Not available

0010-10

Simplicity 1704314SM

FITTING, Lubrication
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0020

Simplicity 1735399SM

BEARING, Ball, 20mm
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

0030

Simplicity 1735326SM

SHAFT,Spindle, 20mm Dia. x 134.6mm
(Superseded to 1735326YP)

$27.99

$

In Stock, only 2 left!

0

0040

Simplicity 1735323SM

SHIELD, Arbor, 2-1/16 OD
(Superseded to 1735323YP)

$6.99

$

In Stock, only 3 left!

0

0050

Simplicity 1735328SM

SPACER, Bearing
(Superseded to 1735328YP)

$6.49

$

In Stock, only 1 left!

0

0060

Simplicity 1960766SM

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0080

Simplicity 1737816SM

BLADE

$

$

Not available

0090

Simplicity 1656916SM

WASHER, Spring, 15/32 ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0100

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 x 1, GR5

$5.49

$

In Stock, Qty 16

0

0110

Simplicity 1737835SM

PULLEY, V, Deep Groove

$

$

Not available

0130

Simplicity 1737457SM

SPACER, Pulley

$

$

Not available

0140

Simplicity 1736504DYP

HOUSING KIT, 42" Mower Deck, Red
(Superseded to 1687779YP)

$461.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1736504CYP

HOUSING KIT, 42" Mower Deck, Orange
(Superseded to 1687780YP)

$555.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1923027SM

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, GR5
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

0170

Simplicity 1737845ASM

BRACKET, Upstop

$

$

Not available

0171

Simplicity 1757824BMYP

BRACKET, Upstop

$15.99

$

Usually ships in 2-12 days

0

0180

Simplicity 721083BM

PLATE, Rear
(Superseded to 092426E701MA)

$10.99

$

In Stock, only 1 left!

0

0190

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0200

Simplicity 721369BM

BRACKET, Hinge
(Superseded to 094956E701MA)

$22.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

0240

Simplicity 094707MA

DEFLECTOR & SUPPORT ASSEMBLY, Chute

$108.99

$

In Stock, only 3 left!

0

0250

Simplicity 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

0260

Simplicity 1960093SM

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0270

Simplicity 1750457BMYP

PLATE, Spindle RH

$28.99

$

In Stock, only 1 left!

0

0280

Simplicity 1750458BMYP

PLATE, Spindle LH

$28.99

$

Usually ships in 2-12 days

0

0330

Simplicity 5023489SM

CAP, PROTECTOR, .120 ID

$3.99

$

Usually ships in 2-12 days

0

--

Simplicity 1687771

KIT, Blade, Set of 3
(Superseded to 1687865)

Note: (Optional Accessory - Not Included)

$70.99

$

In Stock, only 1 left!

0
