MD 20475 FC (7800325) - Murray 20" Walk-Behind Mower, Canada (2008) Deck & Engine Group Parts Diagram

20" Walk-Behind Mower, Canada

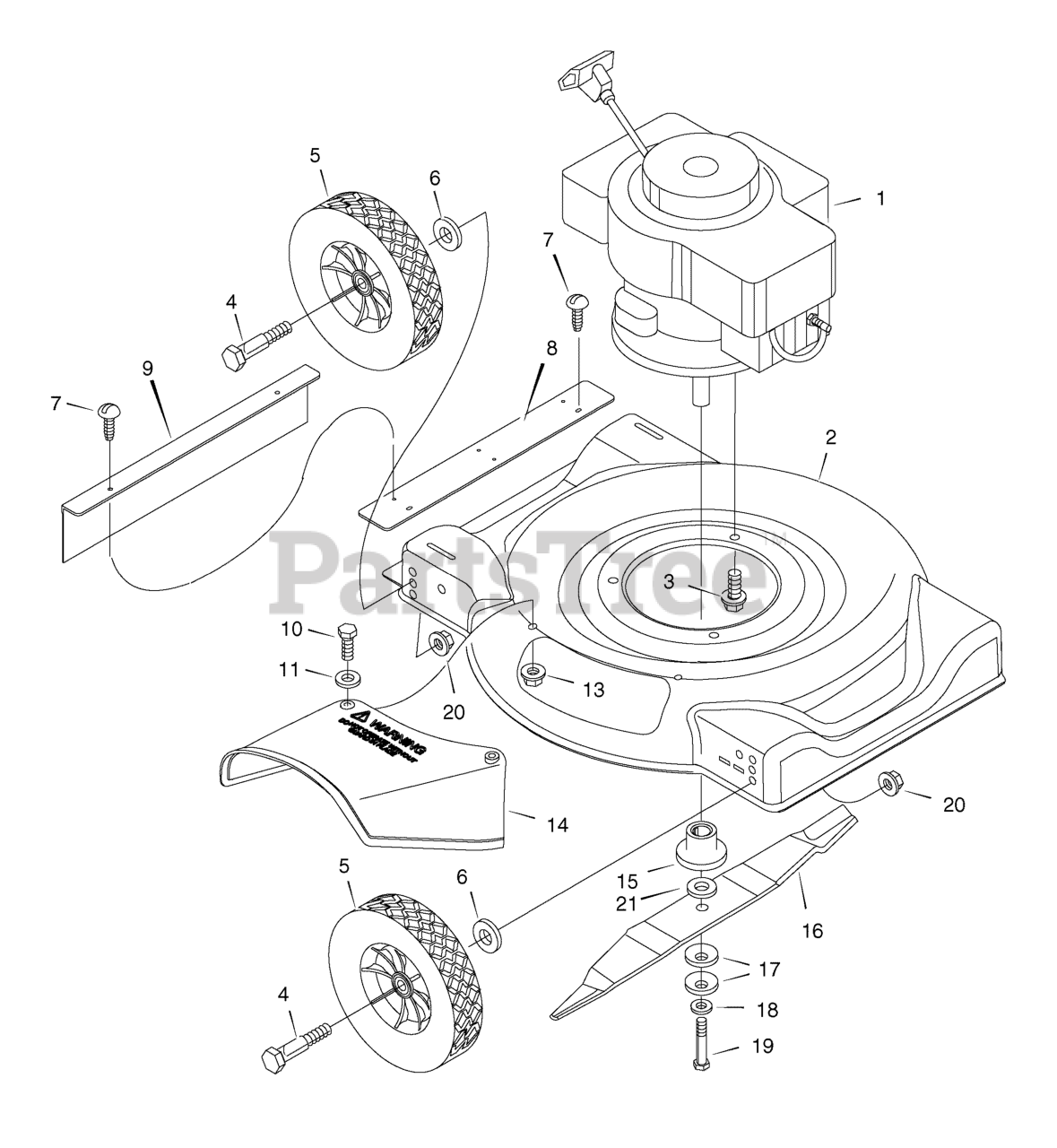

Deck & Engine Group Parts Diagram

  • Title

1

* ENGINE, 35 B&S CLASSIC, Mod. 09T702-0118-B1

$

$

Not available

2

Murray 7300711YP

HOUSING, 20"

$106.99

$

Usually ships in 2-12 days

0

3

Murray 7090324SM

BOLT, HWST, 3/8C X1 BZ
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

4

Murray 009X10MA

BOLT, SHOULDER, 3/8-16 X 2.02

$

$

Not available

5

Murray 7102068YP

WHEEL, 7 X 1.50 DIAMOND-GRAY

$24.99

$

Usually ships in 2-12 days

0

6

Murray 845MA

WASHER, FLAT .390X1.25X.119Z
(Superseded to 17X168ZMA)

$6.49

$

Usually ships in 2-12 days

0

7

Murray 26X245MA

SCREW, HWH SEMS, #10 X .50"

$4.49

$

In Stock, Qty 6

0

8

Murray 7300714YP

EXTENSION, 20" SD, EXPORT

$7.99

$

Usually ships in 2-12 days

0

9

Murray 671912MA

GUARD, REAR, 20" PUSH

$14.99

$

In Stock, only 2 left!

0

10

Murray 01X121MA

BOLT, HEX, .25-20X0.75 ZINC
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

11

Murray 017X37MA

WASHER, 1/4" PLAIN
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

13

Murray 15X116MA

NUT, HEX LOCK, 1/4-20 BZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Murray 671929MA

DEFLECTOR, CHUTE 20" OPP

$27.99

$

Usually ships in 2-12 days

0

15

Murray 071056MA

ADAPTER, BLADE

$10.99

$

Usually ships in 2-12 days

0

16

Murray 7101730YP

BLADE, 20"
(Superseded to 042785E701MA)

$23.99

$

Usually ships in 2-12 days

0

17

Murray 17X137MA

WASHER, BLADE

$5.49

$

Usually ships in 2-12 days

0

18

Murray 17X124MA

WASHER, FLAT, .40.81 16G ZP&O

$4.49

$

Usually ships in 2-12 days

0

19

Murray 01X142MA

BOLT, HEX, 3/8-24 NF X 1-1/2"

$8.49

$

In Stock, only 2 left!

0

20

Murray 015X68MA

NUT, FLANGE LOCK, 3/8-16 NC
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

21

Murray 17X191MA

WASHER, PLAIN, .406 X 2.25

$3.99

$

Usually ships in 2-12 days

0

--

Murray 7102447

MANUAL, OPERATORS, 20" WBM, MURRAY (not shown)

$

$

Currently unavailable
