MCRS 215014KWV (84332) - Snapper 21" Walk-Behind Mower, 5hp Front Wheel Bracket (Swivel Wheel Model) Parts Diagram

21" Walk-Behind Mower, 5hp

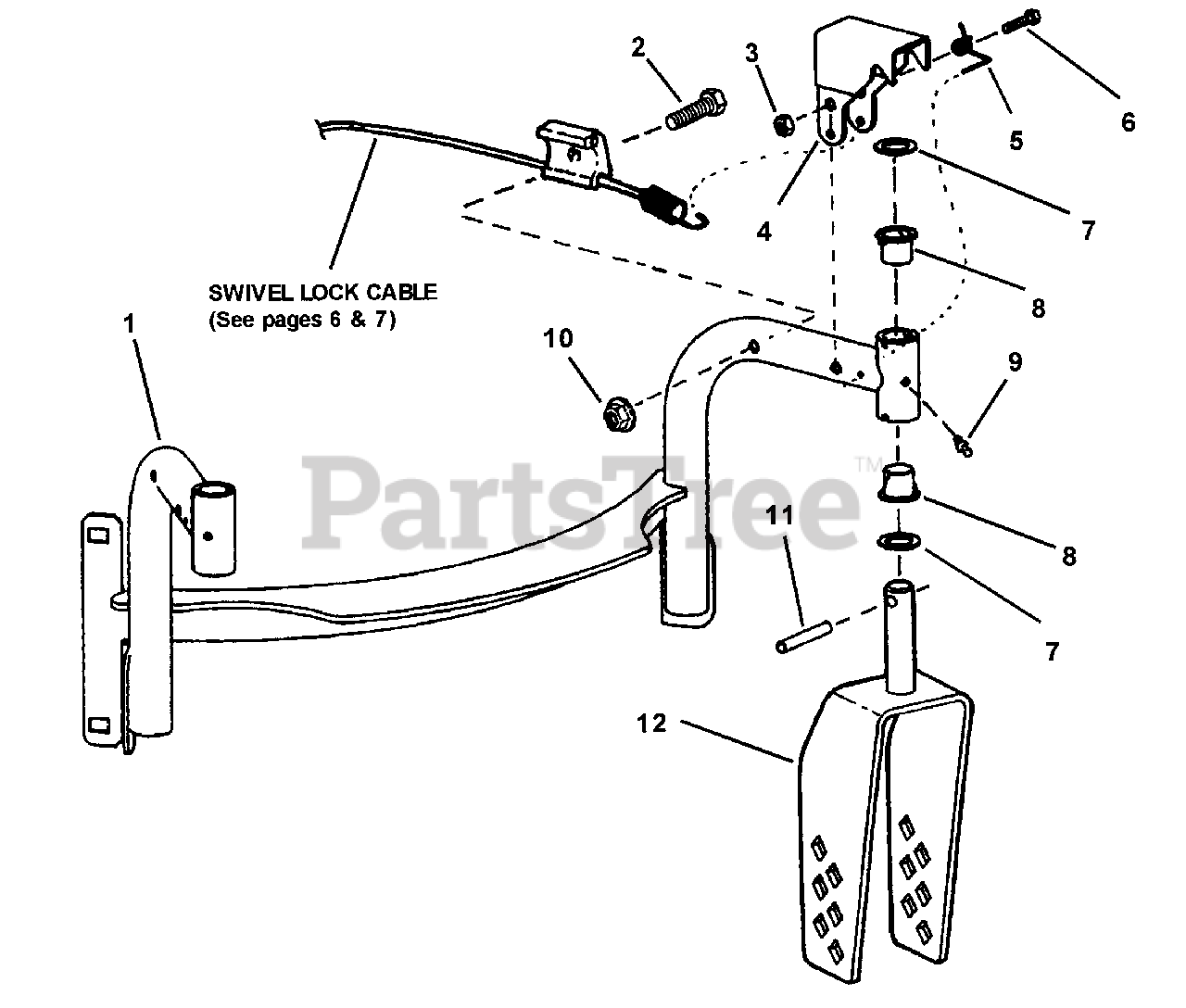

Front Wheel Bracket (Swivel Wheel Model) Parts Diagram

  • Title

1

Snapper 7057782

WELDMENT, Front Bracket
(Superseded to 7057782YP)

$276.99

$

Usually ships in 2-12 days

0

2

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Cap, Grade 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

3

Snapper 7090372

NUT, 1/4-20 Hex Lock
(Superseded to 703954)

$

$

Not available

4

Snapper 7046629

BRACKET, Swivel Lock
(Superseded to 7046629YP)

$31.99

$

Usually ships in 2-12 days

0

5

Snapper 7046668

SPRING, Torsion
(Superseded to 7046668YP)

$7.49

$

Usually ships in 2-12 days

0

6

Snapper 7090505

BOLT, 1/4-20 x 2" Hex, Grade 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7027344

WASHER, 41/64" Flat
(Superseded to 7027344SM)

Note: Was 15992

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7046628

BUSHING, 5/8" Nylon
(Superseded to 7046628YP)

$4.99

$

In Stock, only 3 left!

0

9

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

10

Snapper 7076978

NUT, 1/4-20 Hex Nylok
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7014106

PIN, 1 /4 x 1-3/4" Roll
(Superseded to 7014106YP)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7057781

WELDMENT, L.H. Swivel Bracket

$

$

Not available

Snapper 7072230

WELDMENT, R.H. Swivel Bracket
(Superseded to 7072230YP)

Note: Was 57789 (Not Shown)

$58.99

$

Usually ships in 2-12 days

0
