MCE 1640-A - Murray 16" Chainsaw, 40cc (2014) Engine Group (MCE1640) Parts Diagram

16" Chainsaw, 40cc

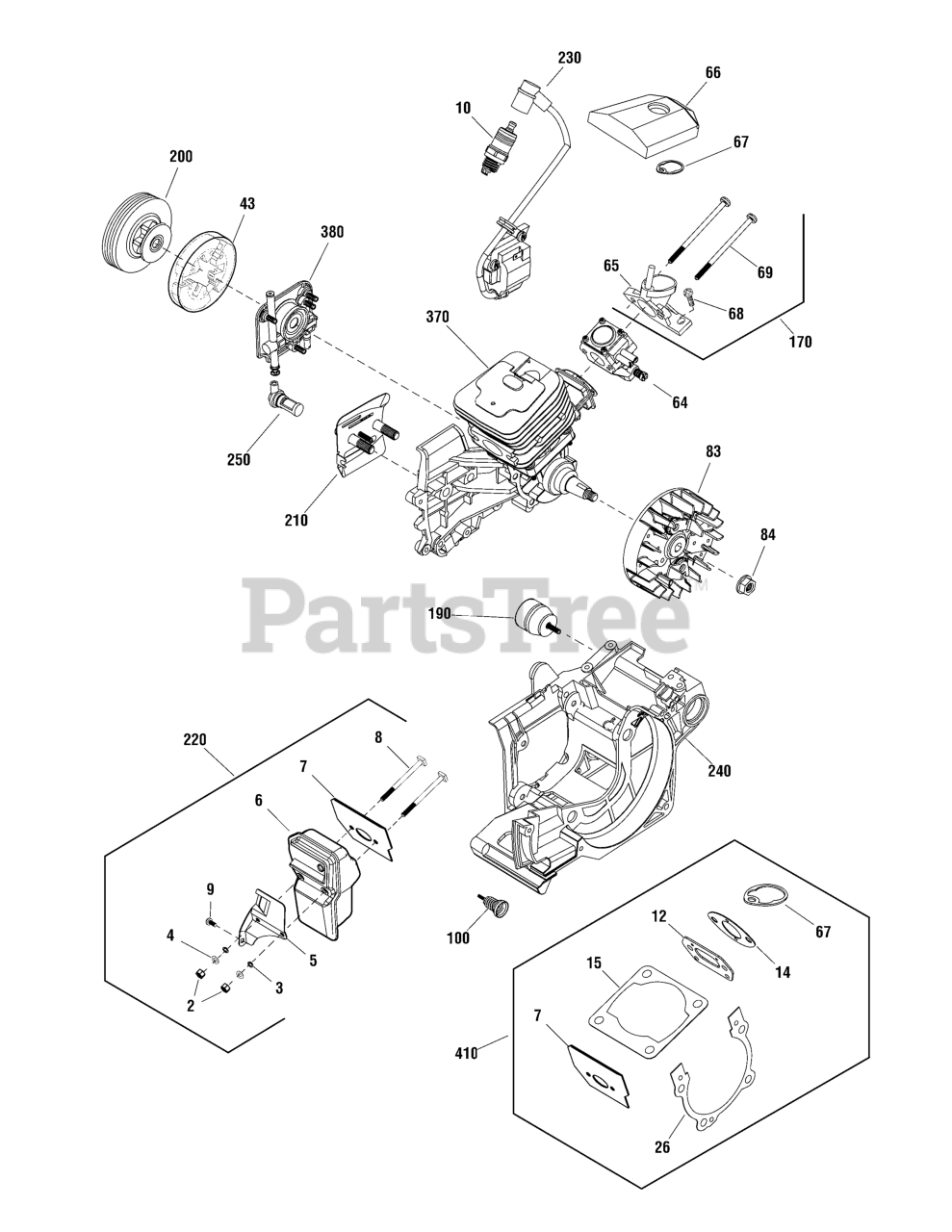

Engine Group (MCE1640) Parts Diagram

  • Title

2

NUT, M5

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

3

WASHER, Split Lock, 5

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

4

WASHER, 5

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

5

PLATE, Silencer

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

6

MUFFLER

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

7

GASKET, Muffler

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

8

SCREW, Muffler

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

9

SCREW, M5 x 12

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

10

Murray RCJ7Y

SPARK PLUG, Champion
(Superseded to 706759)

$20.99

$

Usually ships in 2-12 days

0

12

GASKET, Air Intake

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

14

GASKET, Carburetor

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

15

GASKET, Cylinder

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

26

GASKET, Crank Case

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

43

Murray CS00369A

CLUTCH
(Superseded to 706678)

$7.99

$

Usually ships in 2-12 days

0

64

Murray CS00317A

CARBURETOR, Walboro WT-840A
(Superseded to 706665)

$95.99

$

Usually ships in 2-12 days

0

65

SOCKET, Air Intake

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

66

Murray CS00260A

AIR FILTER
(Superseded to 706649)

$7.99

$

Usually ships in 2-12 days

0

67

GASKET, Air Filter

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

68

SCREW, ST4.8 x 16

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

69

SCREW, Carburetor

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

83

Murray CS00368A

FLYWHEEL
(Superseded to 706704)

$31.99

$

Usually ships in 2-12 days

0

84

Murray CS00175A

NUT, M8

$

$

Currently unavailable

100

Murray CS00401A

SPRING ASSEMBLY
(Superseded to 706763)

$13.99

$

Usually ships in 2-12 days

0

170

Murray CS00398A

INTAKE MANIFOLD ASSEMBLY
(Superseded to 706719)

$11.99

$

Usually ships in 2-12 days

0

190

Murray CS00393A

SHOCK SEAT ASSEMBLY
(Superseded to 706753)

$8.49

$

Usually ships in 2-12 days

0

200

Murray CS00408A

CLUTCH CUP ASSEMBLY
(Superseded to 706681)

$27.99

$

Usually ships in 2-12 days

0

210

Murray CS00406A

DAMPER ASSEMBLY
(Superseded to 706696)

$5.49

$

Usually ships in 2-12 days

0

220

Murray CS00403A

MUFFLER
(Superseded to 706732)

$17.99

$

Usually ships in 2-12 days

0

230

Murray CS00407A

IGNITION UNIT
(Superseded to 706716)

$43.99

$

Usually ships in 2-12 days

0

240

Murray CS00395A

BASE ASSEMBLY
(Superseded to 706659)

$29.99

$

Usually ships in 2-12 days

0

250

Murray CS00384A

FILTER, Oil
(Superseded to 706702)

$7.49

$

Usually ships in 2-12 days

0

370

Murray CS00404A

SHORT ENGINE, 40cc
(Superseded to 706755)

$245.99

$

Usually ships in 2-12 days

0

380

Murray CS00429A

OIL PUMP ASSEMBLY
(Superseded to 706739)

$42.99

$

Usually ships in 2-12 days

0

410

Murray CS00444A

KIT, Gaskets
(Superseded to 706722)

Note: (Includes Ref. Nos. 7, 12, 14, 15, 26 & 67)

$14.99

$

Usually ships in 2-12 days

0
