MC8000 (9807-0) - Generac Portable Generator Control Panel Parts Diagram

Portable Generator

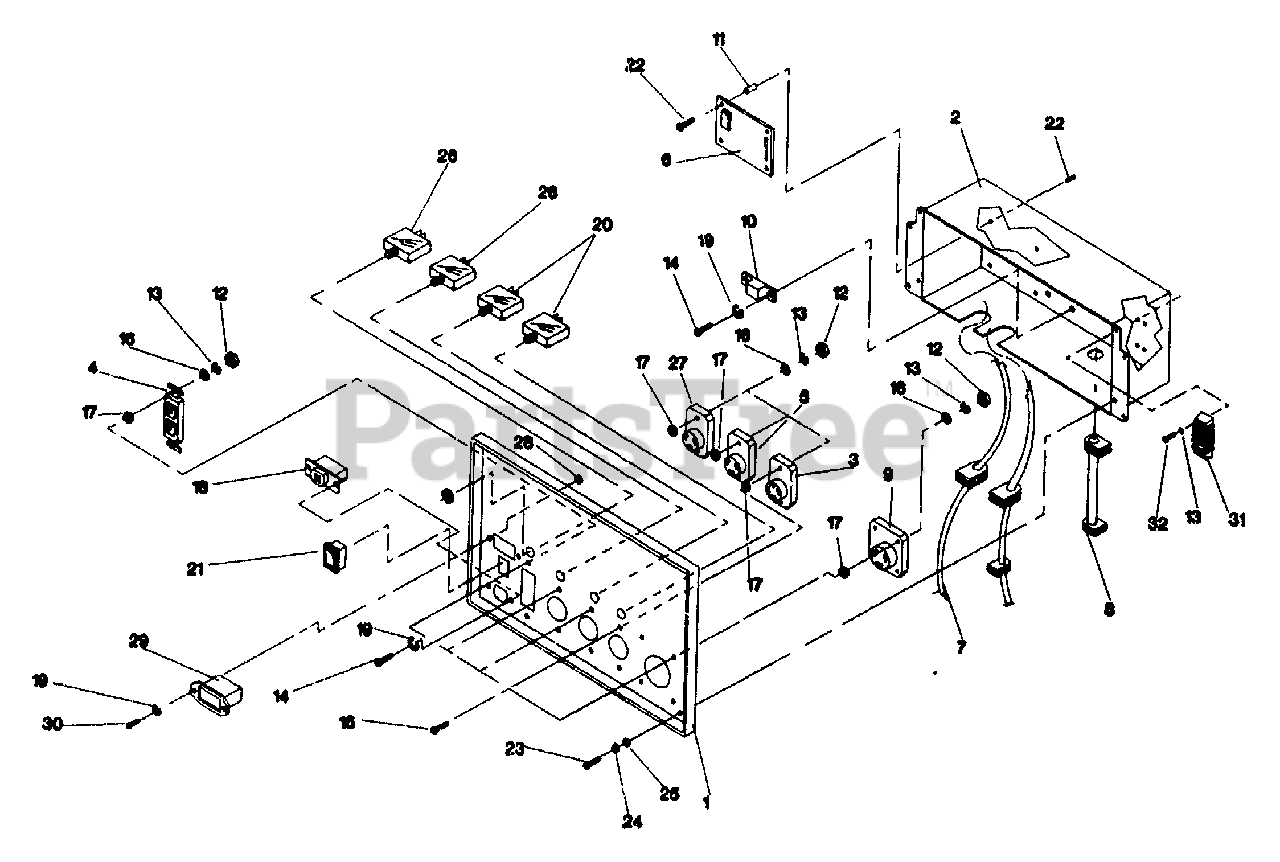

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 92380

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 92355

Control Box

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240V, 30 Amp Twistlock Outlet

$

$

Not available

4

Briggs & Stratton 80409

120 Volts, 20 Amp Duplex GFCI Outlet
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 68868

120 Volts 30 A Twistlock Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83970

System Control Board
(Superseded to 83970GS)

$

$

Not available

7

Briggs & Stratton 93043

Engine Harness Assm.
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 81434

Rubber Grommet Connector

$

$

Currently unavailable

9

Briggs & Stratton 74191

250v, 50 Amp Outlet
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962

Circuit Breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 68337

1" Hex Stand-off
(Superseded to 67547)

$5.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

#8 Lockwasher

$

$

Not available

14

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

16

Briggs & Stratton 38150

#8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 68822

12V DC Outlet & Bracket

$

$

Currently unavailable

19

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

20

75207A

30 Amp Circuit Breaker

$

$

Not available

21

Briggs & Stratton 78653

On-off Switch
(Superseded to 78653GS)

$

$

Not available

22

Briggs & Stratton 64526

#6-32 x 3/8" Screw

$

$

Not available

23

Briggs & Stratton 52749

M5-0.8 x 12mm Screw

$

$

Currently unavailable

24

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207

20 Amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

27

Briggs & Stratton 74190

120v/20A Twistlock Outlet

$

$

Not available

28

Briggs & Stratton 51714

M3-0.5 Hex Nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 77604

Hourmeter
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 55823

M3-0.5 Pan Head Screw
(Superseded to 55823GS)

$1.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 92953

50-amp, 3-terminal Block
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 75476

M4-0.7 x 16mm Screw
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0
