MC4000 (9802-1) - Generac Portable Generator Control Panel Parts Diagram

Portable Generator

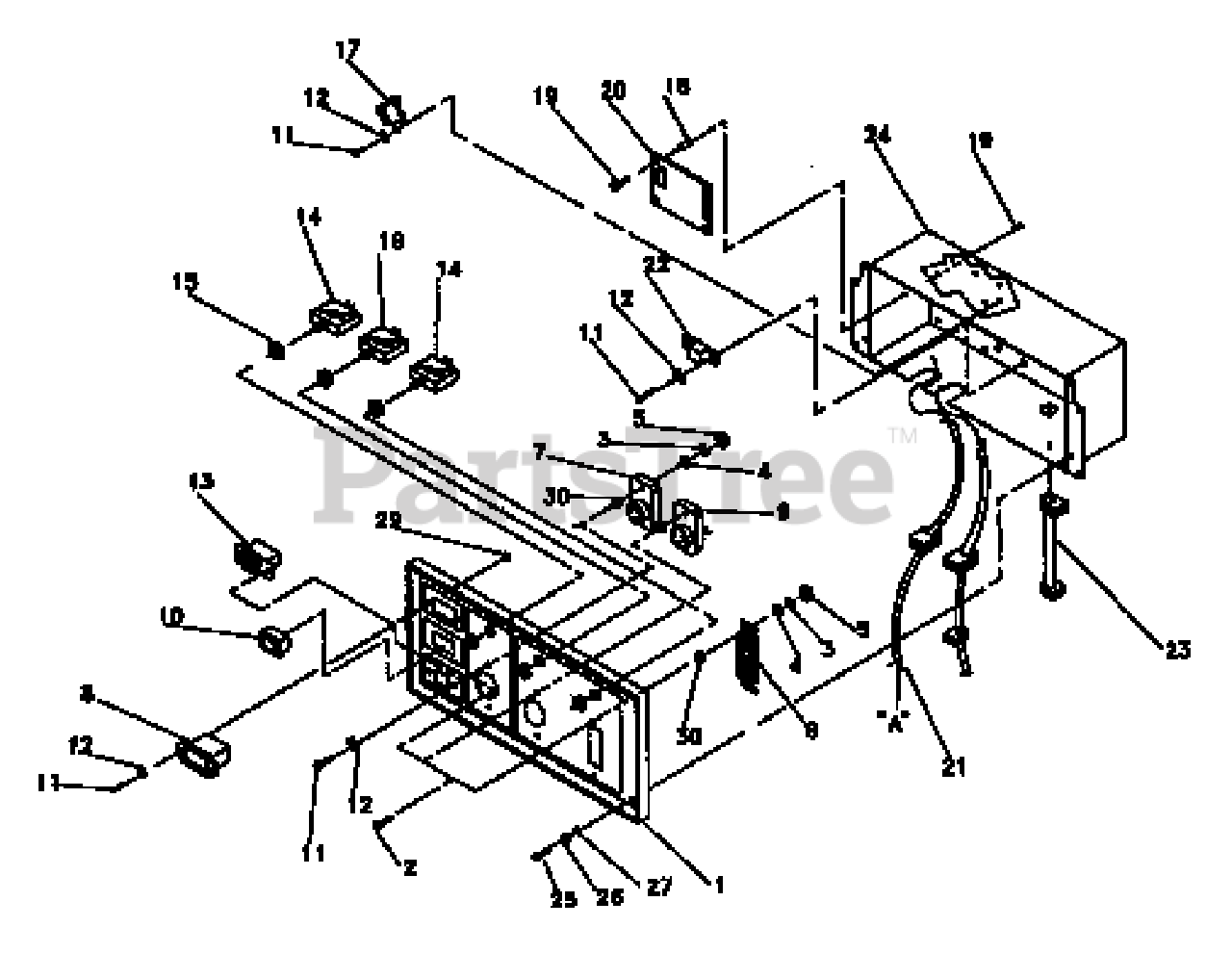

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 92811

PANEL, Control
(Superseded to 92811GS)

$

$

Not available

2

Briggs & Stratton 75475

SCREW, .7 X 10mm

$

$

Not available

3

Briggs & Stratton 22264

WASHER, M4 Lock

$

$

Not available

4

Briggs & Stratton 38150

WASHER, Flat
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 51715

NUT, M4 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 80409

RECEPTACLE, Dplx GFCI 20A
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

7

Briggs & Stratton 68867

OUTLET, 120/240 Volt, 20 Amp Locking
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 77604

METER, Hour
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 68868

OUTLET, 120 Volts, 30 Amp Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 82538

SWITCH, On/Off Rocker
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 43181

SCREW, .5 X 10mm
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 43182

WASHER, M3 Lock
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66822

OUTLET, 12 Volt DC
(Superseded to 66822GS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 75207

CIRCUIT BREAKER, 20 Amp
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

15

Briggs & Stratton 82881

WASHER, Internal Lock
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

16

75207A

CIRCUIT BREAKER, 30 Amp

$

$

Not available

17

Briggs & Stratton 84028

TRANSFORMER, Idle Control
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 64525

STANDOFF, 3/4" Hex

$

$

Currently unavailable

19

Briggs & Stratton 64526

SCREW, 32 X 3/8"

$

$

Not available

20

Briggs & Stratton 83970

CONTROL BOARD, System
(Superseded to 83970GS)

$

$

Not available

21

Briggs & Stratton 84335

WIRE HARNESS
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87692

CIRCUIT BREAKER, 10 Amp

$

$

Currently unavailable

23

Briggs & Stratton 84134

GROMMET, Rubber
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 87782

BOX, Control

$

$

Currently unavailable

25

Briggs & Stratton 91526

SCREW, .8 x 12mm

$

$

Not available

26

Briggs & Stratton 49226

WASHER, M5 Lock
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 23897

WASHER, M5 Flat
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51714

NUT, M3 Hex
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 23365

WASHER, Shakeproof
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0
