MC 2256 - Jonsered Brushcutter (2011-01) SHAFT Parts Diagram

Brushcutter

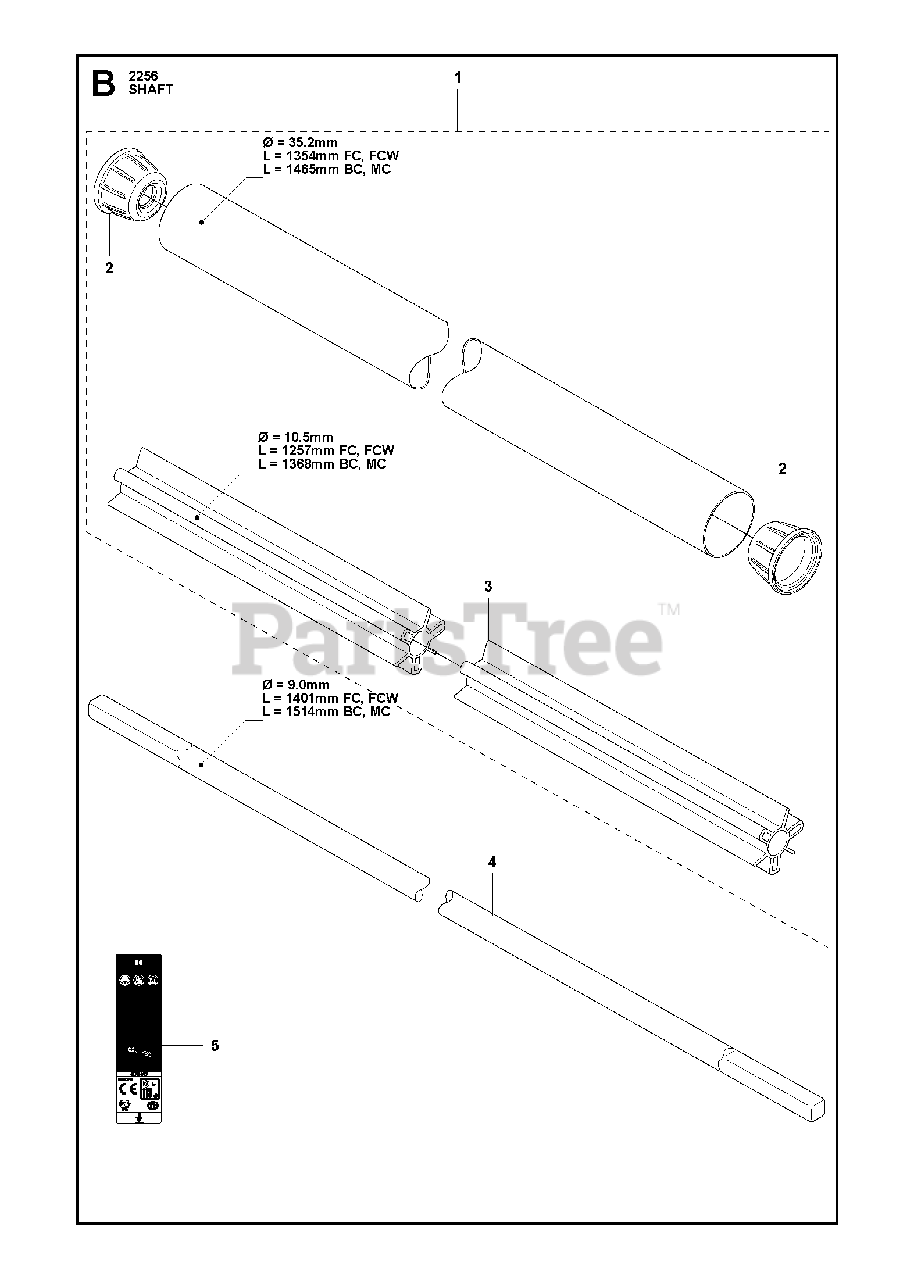

SHAFT Parts Diagram

  • Title

1

Jonsered 537357904

TUBE ASSY
(Superseded to 537357910)

Note: BC Incl Pos 2-3

$169.99

$

Usually ships in 3-10 days

0

1

Jonsered 510027803

No Description Available
(Superseded to 510027807)

Note: FC FCW Incl Pos 2-3 Reinforced

$

$

Not available

1

Jonsered 510027804

No Description Available
(Superseded to 510027808)

Note: MC Incl Pos 2-3

$

$

Not available

2

Jonsered 544320501

RP SPACER
(Superseded to 544320503)

Note: BC FC MC. 1

$5.99

$

In Stock, only 3 left!

0

3

Jonsered 544868502

BEARING SHAFT

Note: BC L 1368mm 10 5mm. 1

$

$

Not available

3

Jonsered 505131302

No Description Available

Note: MC L 1368mm 10 5mm. 1

$

$

Not available

3

Jonsered 505131301

No Description Available

Note: FC FCW L 1257mm 10 5mm. 1

$

$

Not available

4

Jonsered 544156702

DRIVE SHAFT

Note: BC MC L 1514mm 9 0mm

$

$

Not available

4

Jonsered 544156701

DRIVE SHAFT

Note: FC FCW L 1401mm 9 0mm

$74.99

$

Usually ships in 3-10 days

0

5

Jonsered 537294710

LABEL

$

$

Not available
