MC 2255 - Jonsered Brushcutter (2011-01) CARBURETOR Parts Diagram

Brushcutter

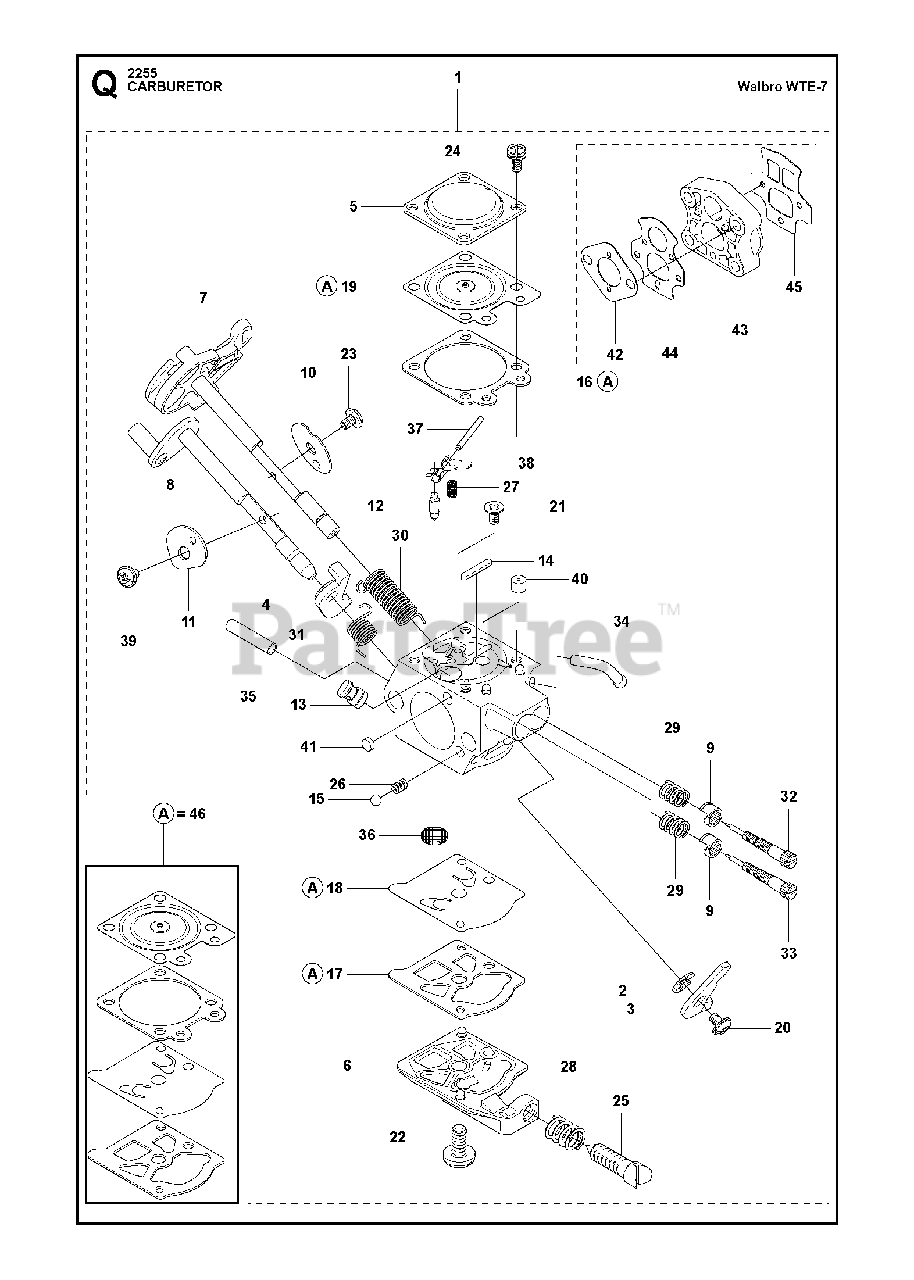

CARBURETOR Parts Diagram

  • Title
1

Jonsered 510242001

CARBURETOR
(Superseded to 505426801)

Note: Walbro WTE7 Incl Pos 2-45

$113.99

$

Usually ships in 3-10 days

0

2

Jonsered 505316736

E CLIP
(Superseded to 502119801)

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

3

Jonsered 544970701

LEVER

Note: . 1

$

$

Not available

4

Jonsered 544177701

LEVER

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

5

Jonsered 505316754

DIAPHRAGM COVER

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 503584301

COVER

Note: . 1

$6.99

$

Usually ships in 3-10 days

0

7

Jonsered 544043601

SHAFT

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

8

Jonsered 544044001

SHAFT

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

9

Jonsered 544970801

LIMITER CAP

Note: . 1

$8.99

$

In Stock, only 2 left!

0

10

Jonsered 505427101

VALVE

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

11

Jonsered 537109601

VALVE

Note: . 1

$

$

Not available

12

Jonsered 503563401

INLET NEEDLE

Note: . 1

$17.99

$

In Stock, Qty 10

0

13

Jonsered 502846801

NOZZLE ASSY

Note: . 1

$12.99

$

Usually ships in 3-10 days

0

14

Jonsered 502846901

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

15

Jonsered 501468501

No Description Available
(Superseded to 530035107)

Note: . 1

$

$

Not available

16

Jonsered 504350906

GASKET

Note: . 1 42

$11.99

$

In Stock, Qty 7

0

17

Jonsered 504130906

GASKET

Note: . 1 42

$11.99

$

In Stock, only 3 left!

0

18

Jonsered 502213601

DIAPHRAGM, FUEL PUMP
(Superseded to 504130807)

Note: . 1 42

$31.99

$

In Stock, Qty 6

0

19

Jonsered 502847001

DIAPHRAGM

Note: . 1 42

$62.99

$

Usually ships in 3-10 days

0

20

Jonsered 501468701

SCREW.

Note: . 1

$7.99

$

In Stock, only 1 left!

0

21

Jonsered 502847101

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

22

Jonsered 501466901

SCREW

Note: . 1

$9.49

$

In Stock, Qty 5

0

23

Jonsered 537003401

SCREW
(Superseded to 501468701)

Note: . 1

$7.99

$

In Stock, only 1 left!

0

24

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

Note: . 1

$4.99

$

In Stock, only 4 left!

0

25

Jonsered 537408201

SCREW

Note: . 1

$17.99

$

In Stock, only 1 left!

0

26

Jonsered 501468401

SPRING

Note: . 1

$7.99

$

In Stock, only 1 left!

0

27

Jonsered 501795901

SPRING

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

28

Jonsered 501667801

SPRING

Note: . 1

$

$

Not available

29

Jonsered 544971001

SPRING

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

30

Jonsered 544177601

SPRING

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

31

Jonsered 544971101

SPRING

Note: . 1

$

$

Not available

32

Jonsered 502847201

NEEDLE

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

33

Jonsered 502847301

NEEDLE

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

34

Jonsered 544971501

FITTING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 544971601

FITTING

Note: . 1

$

$

Not available

36

Jonsered 501666101

FUEL INLET SCREEN

Note: . 1

$14.99

$

In Stock, Qty 5

0

37

Jonsered 505520125

FULCRUM PIN

Note: . 1

$7.99

$

In Stock, only 3 left!

0

38

Jonsered 502847401

LEVER

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

39

Jonsered 544111501

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

40

Jonsered 505426901

JET

Note: . 1

$

$

Not available

41

Jonsered 503574301

PLUG WELCH

Note: . 1

$

$

Not available

42

Jonsered TBD

No Description Available

Note: Delivered with 510 24 20-01 Separate spare part see page J. 1

$

$

Not available

43

Jonsered TBD

No Description Available

Note: Delivered with 510 24 20-01 Separate spare part see page J. 1

$

$

Not available

44

Jonsered TBD

No Description Available

Note: Delivered with 510 24 20-01 Separate spare part see page J. 1

$

$

Not available

45

Jonsered TBD

No Description Available

Note: Delivered with 510 24 20-01 Separate spare part see page J. 1

$

$

Not available
