MB-580 - Echo Mister / Blower (SN: D02026001001 - D02026999999) Starter Parts Diagram

Mister / Blower

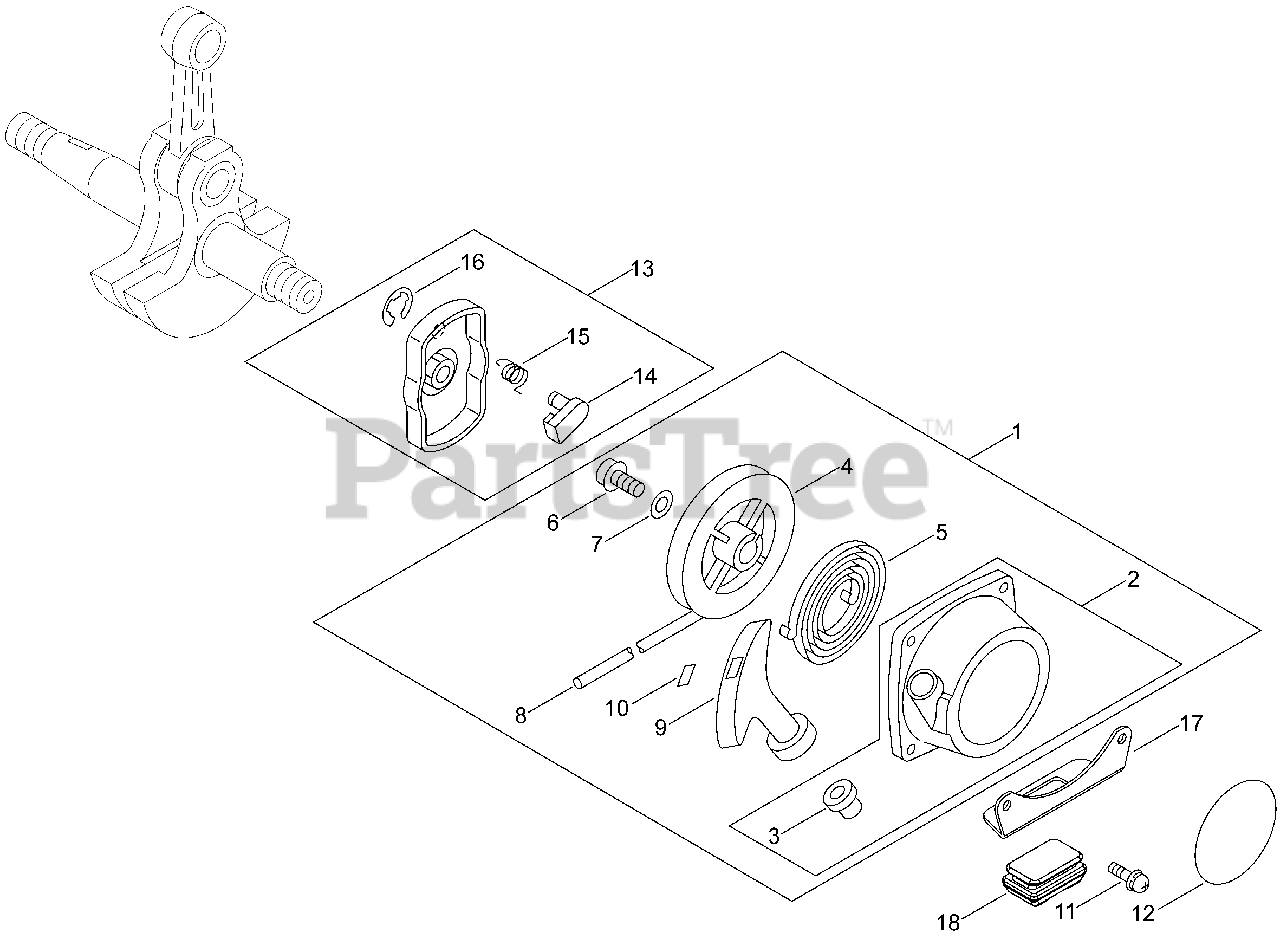

Starter Parts Diagram

  • Title

1

Echo 17720006210

STARTER ASSY, RECOIL

Note: Includes Items 2-10

$86.99

$

Usually ships in 2-4 days

0

2

Echo P022043970

CASE, STARTER

Note: Includes Item 3

$25.99

$

Usually ships in 2-4 days

0

3

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

4

Echo 17721511120

REEL, ROPE

$19.99

$

In Stock, Qty 8

0

5

Echo 17722011120

SPRING, RECOIL

$17.99

$

In Stock, only 4 left!

0

6

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

7

Echo P022022280

WASHER

$0.99

$

In Stock, Qty 6

0

8

Echo 17722611120

ROPE, STARTER 3.8×1400

$5.99

$

In Stock, Qty 14

0

9

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

10

Echo P022037670

RETAINER, ROPE

$2.49

$

In Stock, Qty 7

0

11

Echo 90029204018

SCREW 4×18

$1.99

$

Usually ships in 2-4 days

0

12

Echo X502000780

LABEL, ECHO

$3.99

$

Usually ships in 2-4 days

0

13

Echo 17720206210

PAWL ASSY, STARTER
(Superseded to A052000470)

Note: Includes Items 14-16

$5.99

$

In Stock, Qty 20+

0

14

Echo A514000120

PAWL
(Superseded to P022003120)

$3.49

$

In Stock, Qty 6

0

15

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

16

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

17

Echo V152002980

PLATE, ANGLE

$6.99

$

Usually ships in 2-4 days

0

18

Echo 30511703360

CUSHION

$3.49

$

In Stock, Qty 11

0
