MB 3202 (41BR322G077) - McCulloch Blower General Assembly Parts Diagram

Blower

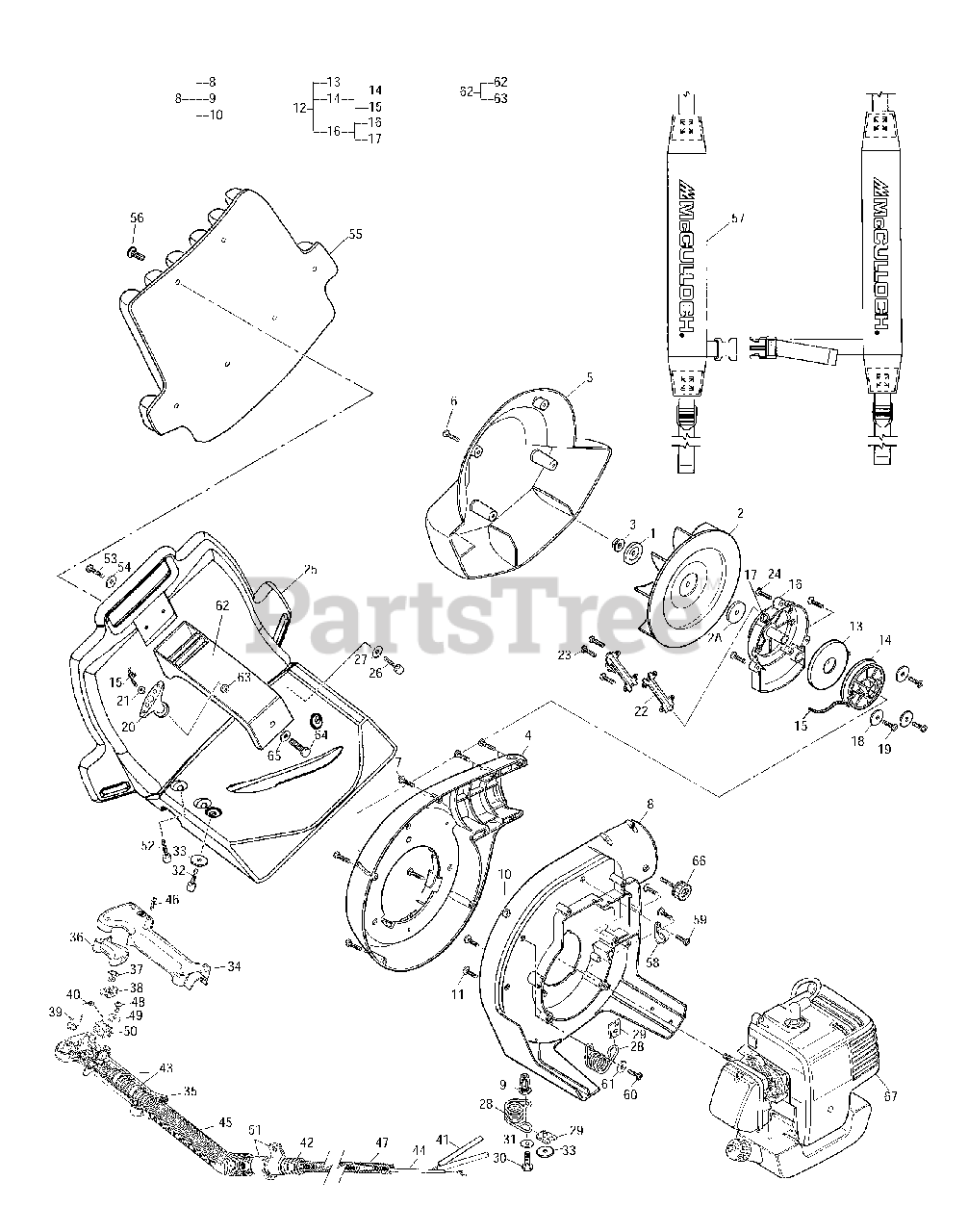

General Assembly Parts Diagram

  • Title

1

MTD MC-218655-00

Disc, Drive
(Superseded to MC-9122-320002)

$

$

Not available

2

MTD MC-540002-00

Kit, Impellar, Blower

$

$

Not available

2A

MTD MC-9122-320001

Disc, Drive

$16.99

$

Usually ships in 3-6 days

0

3

MTD MC-110961-00

Nut, Hx 5/16-24
(Superseded to MC-9NAB-5/16-24)

$

$

Not available

4

MTD MC-324834-60

Outer Housing

$

$

Currently unavailable

5

MTD MC-324214-00

Cover, Air Inlet

$

$

Not available

6

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

7

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

8

MTD MC-302868-00

Inner Housing Asy

$

$

Not available

9

Captive Nut

$

$

Not available

10

Rope Guide

$

$

Not available

11

MTD MC-111067-00

Screw, 10-24 x .63 Sl Torx Tp
(Superseded to 710-04287)

$

$

Not available

12

MTD MC-300795-00

Starter Housing Asy
(Superseded to MC-224710-00)

$

$

Not available

13

MTD MC-300475-00

Spring/Starter Rewind

$

$

Not available

14

MTD MC-300872-00

Drum Rope Asy

$

$

Not available

15

MTD MC-323131-00

Rope, Starter 46"

$

$

Not available

16

MTD MC-224710-00

Kit, Starter Housing

$

$

Not available

17

Rope Guide

$

$

Not available

18

MTD MC-322176-00

Washer, .2 ID x 7/8 in. OD

$

$

Not available

19

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

20

MTD MC-216792-00

Handle, Starter

$

$

Not available

21

MTD MC-218941-00

Washer, Nylon

$

$

Not available

22

MTD MC-322435-00

Cover, Rope

$

$

Not available

23

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

24

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

25

MTD MC-324201-00

Frame, Back

$

$

Not available

26

MTD MC-100882-00

Screw, Hx 1/4-20x.75
(Superseded to MC-9SXDB-06-19)

$

$

Not available

27

MTD MC-110990-00

Washer, .275x.680x.060

$

$

Not available

28

MTD MC-324218-00

Spring, Isolator

$

$

Not available

29

MTD MC-111306-00

Nut, 1/4-20 Type U

$

$

Not available

30

MTD MC-100882-00

Screw, Hx 1/4-20x.75
(Superseded to MC-9SXDB-06-19)

$

$

Not available

31

MTD MC-216646-00

Washer, Pl .250 ID

$

$

Not available

32

MTD MC-217943-00

Screw, Skt 1/4x20x1.0T

$

$

Not available

33

MTD MC-110990-00

Washer, .275x.68x.06

$

$

Not available

34

MTD MC-324204-00

Housing, Control RH

$

$

Not available

35

MTD MC-324205-00

Housing, Control LH

$

$

Not available

36

MTD MC-324206-00

Trigger, Throttle

$

$

Not available

37

MTD MC-324207-00

Knob, Lock

$

$

Not available

38

MTD MC-324213-00

Pin, Lock

$

$

Not available

39

MTD MC-111302-00

Spring, Trigger

$

$

Not available

40

MTD MC-111303-00

Spring, Lock

$

$

Not available

41

MTD MC-324212-00

Wire Asy, Terminal
(Superseded to MC-9010-320201)

$

$

Not available

42

MTD MC-324208-00

Housing, Flex

$

$

Not available

43

MTD MC-324209-00

Clamp, Band

$

$

Not available

44

MTD MC-324211-00

Cable, Throttle

$

$

Not available

45

MTD MC-324210-00

Sleeve, Flex, 22mm

$

$

Not available

46

MTD MC-111061-00

Screw, 6-19x.62Fl Hd Plast

$

$

Not available

47

MTD MC-324217-00

Sleeve, Flex, 9mm

$

$

Not available

48

MTD MC-218643-00

Screw, Tr 8-16x.5 Torx
(Superseded to 710-04546)

$

$

Not available

49

MTD MC-300297-00

Washer, .19 ID x .68 OD
(Superseded to MC-9WFB-4.9-17)

$

$

Not available

50

MTD MC-323429-00

Switch, Rocker
(Superseded to MC-9022-320201)

$

$

Not available

51

MTD MC-324219-00

Clamp, Arm

$

$

Not available

52

MTD MC-100882-00

Screw, Hx 1/4-20x.75
(Superseded to MC-9SXDB-06-19)

$

$

Not available

53

MTD MC-218644-00

Screw, Tr 10-14x.75 Torx
(Superseded to 710-04544)

$

$

Not available

54

MTD MC-100352-00

Washer, 10 Pl

$

$

Not available

55

MTD MC-324202-00

Cushion, Back

$

$

Not available

56

MTD MC-111304-00

Rivet, Ribbed 14.5
(Superseded to 728-04023)

$

$

Not available

57

MTD MC-324203-00

Harness, Torso
(Superseded to MC-9149-320201)

$

$

Not available

58

MTD MC-324225-00

Clamp, Cable 9/16

$

$

Not available

59

MTD MC-300294-00

Screw, 8-16x.75 Tr Hd Plast
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

60

MTD MC-218644-00

Screw, Tr 10-14x.75 Torx
(Superseded to 710-04544)

$

$

Not available

61

MTD MC-93469-00

Washer, .469 OD - .222 ID
(Superseded to MC-9WFB-5.64-12)

$

$

Not available

62

MTD MC-302867-00

Bracket, Isolator, Upper

$

$

Currently unavailable

63

Guide, Rope

$

$

Not available

64

MTD MC-100882-00

Screw, Hx 1/4-20x.75
(Superseded to MC-9SXDB-06-19)

$

$

Not available

65

MTD MC-216646-00

Washer, Pl .25 ID

$

$

Not available

66

MTD MC-302746-00

Knob, Screw Asy

$

$

Currently unavailable

67

Powerhead Asy

Note: See "Powerhead Assembly"

$

$

Not available
