MB 3202 (41AR322G077) - McCulloch Blower Powerhead Assembly Parts Diagram

Blower

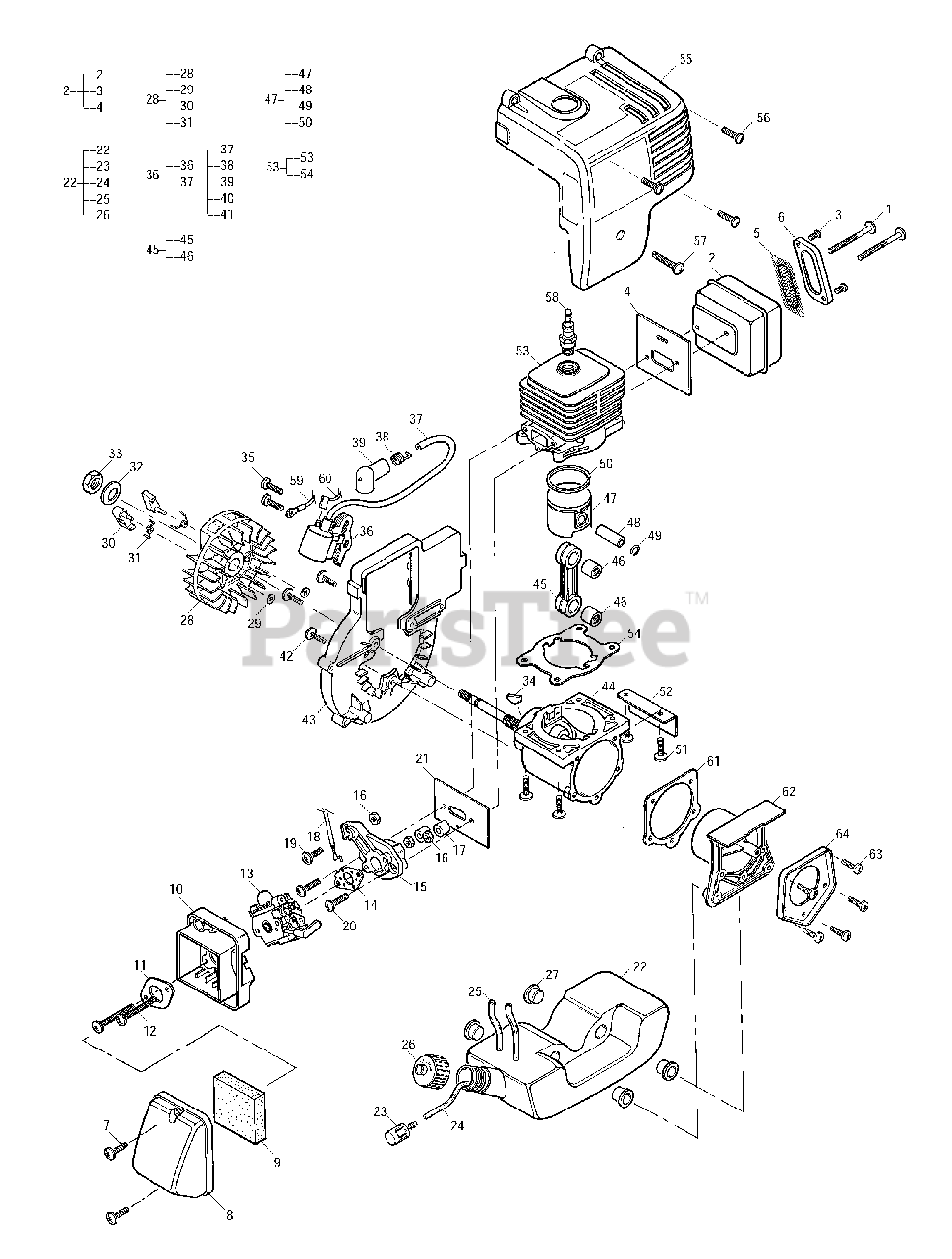

Powerhead Assembly Parts Diagram

  • Title

1

MTD MC-111159-00

Screw, 10-24x2.25 Taptite
(Superseded to 710-04545)

$

$

Not available

2

MTD MC-224707-00

Kit, Muffler

$

$

Not available

3

Screw

$

$

Not available

4

MTD MC-322420-01

Plate, Muffler

$

$

Not available

5

MTD MC-322413-00

Screen, Spark Arrester

$

$

Not available

6

MTD MC-322414-90

Cover, Spark Arrester

$

$

Not available

7

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

8

MTD MC-322429-61

Cover, Air Box
(Superseded to MC-9017-320004)

$

$

Not available

9

MTD MC-224239-00

Filter, Air

$

$

Not available

10

MTD MC-322436-61

Box, Air Filter

$

$

Not available

11

MTD MC-322425-90

Plate, Air Box

$

$

Not available

12

MTD MC-218083-00

Screw, 10-24 x 2 Torx
(Superseded to 710-04553)

$

$

Not available

13

Carburetor Assembly

Note: See "Carburetor Assembly"

$

$

Not available

14

MTD MC-218933-00

Gasket, Carburetor
(Superseded to MC-9014-320004)

$3.49

$

In Stock, only 3 left!

0

15

MTD MC-322434-00

Manifold, Carburetor

$

$

Not available

16

MTD MC-218315-00

Nut, 10-24

$

$

Not available

17

MTD MC-322188-00

Spacer, Rubber

$

$

Not available

18

MTD MC-322409-00

Cable, Throttle

$

$

Not available

19

MTD MC-111226-00

Screw, 10-24 x .62 Tr Hd Torx
(Superseded to 710-04491)

$

$

Not available

20

MTD MC-111203-00

Screw, 10-24 x .875 Taptite

$

$

Not available

21

MTD MC-323912-00

Gasket, Manifold
(Superseded to MC-9014-320003)

$

$

Not available

22

MTD MC-224207-00

Fuel Tank Asy

$

$

Currently unavailable

23

MTD MC-216985-00

Filter, Fuel
(Superseded to MC-9182-310001)

$

$

Not available

24

MTD MC-225162-00

Hose, Fuel

$

$

Not available

25

MTD MC-225163-00

Hose, Fuel Return

$

$

Not available

26

MTD MC-223508-00

Kit, Fuel Cap w/Retainer

$

$

Not available

27

MTD MC-322105-00

Isolator, Fuel Tank

$

$

Not available

28

MTD MC-301352-01

Flywheel Asy

$

$

Not available

29

MTD MC-550001-00

Pawl Kit

$

$

Not available

29

Retainer Ring

$

$

Not available

30

Pawl, Starter

$

$

Not available

31

Spring, Starter Pawl

$

$

Not available

32

MTD MC-111205-00

Washer, Conical Spring

$

$

Not available

33

MTD MC-111085-00

Nut

$

$

Not available

34

MTD MC-102164-00

Key, Flywheel

$

$

Not available

35

MTD MC-111203-00

Screw, 10-24 x .875 Taptite

$

$

Not available

36

MTD MC-302138-00

Ignition Asy

$

$

Not available

37

MTD MC-223884-00

Kit, Spark Plug Wire

$

$

Not available

38

MTD MC-102556-00

Connector, Spark

$

$

Currently unavailable

39

MTD MC-95266-00

Boot, Spark Plug

$

$

Currently unavailable

40

MTD MC-215533-01

Grommet, H/T Lead, Split
(Superseded to MC-9012-330301)

Note: Not Shown - Not used on this model

$

$

Not available

41

MTD MC-110995-00

Grommet, S/Plug Wire

Note: Not Shown - Not used on this model

$

$

Currently unavailable

42

MTD MC-111067-00

Screw, 10-24 x .63
(Superseded to 710-04287)

$

$

Not available

43

MTD MC-322396-00

Shroud, Engine

$

$

Not available

44

MTD MC-224713-00

Short Block Asy
(Superseded to MC-9228-320003)

$

$

Not available

C'case Asy

$

$

Not available

C'shaft Asy

$

$

Not available

Bearing 6202

$

$

Not available

Bearing 6202RS

$

$

Not available

Seal

$

$

Not available

45

Connecting Rod Asy

$

$

Not available

46

Bearing

$

$

Not available

47

Kit, Piston, 32cc

$

$

Not available

48

Piston Pin, C'shaft

$

$

Not available

49

Ring, Retaining

$

$

Not available

50

Ring, Piston

$

$

Not available

51

MTD MC-111065-00

Screw, 10-24 x .688 Tri Rnd
(Superseded to 710-04536)

$

$

Not available

52

MTD MC-322426-90

Shield, Muffler

$

$

Not available

53

Kit, Cylinder/Gasket, 32cc

$

$

Not available

54

MTD MC-224022-00

Gasket, Cylinder
(Superseded to MC-9014-320001)

$

$

Not available

55

MTD MC-322432-61

Cover, Cylinder/Muffler

$

$

Not available

56

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

57

MTD MC-218644-00

Screw, 10-14 x .75 Torx
(Superseded to 710-04544)

$

$

Not available

58

MTD MC-92879-00

Spark Plug, RDJ8J

$

$

Not available

59

MTD MC-302057-00

Wire Asy, Ground

$

$

Not available

60

MTD MC-302058-00

Wire Asy, Stop Switch

$

$

Not available

61

MTD MC-224023-00

Gasket, C'case
(Superseded to MC-9014-320002)

$

$

Not available

62

MTD MC-224024-01

Plug, C'case

$

$

Not available

63

MTD MC-111065-00

Screw, 10-24 x .688 Tri Rnd
(Superseded to 710-04536)

$

$

Not available

64

MTD MC-322437-90

Plate, C'case

$

$

Not available
