MB 3200 (41BR320G077) - McCulloch Blower General Assembly Parts Diagram

Blower

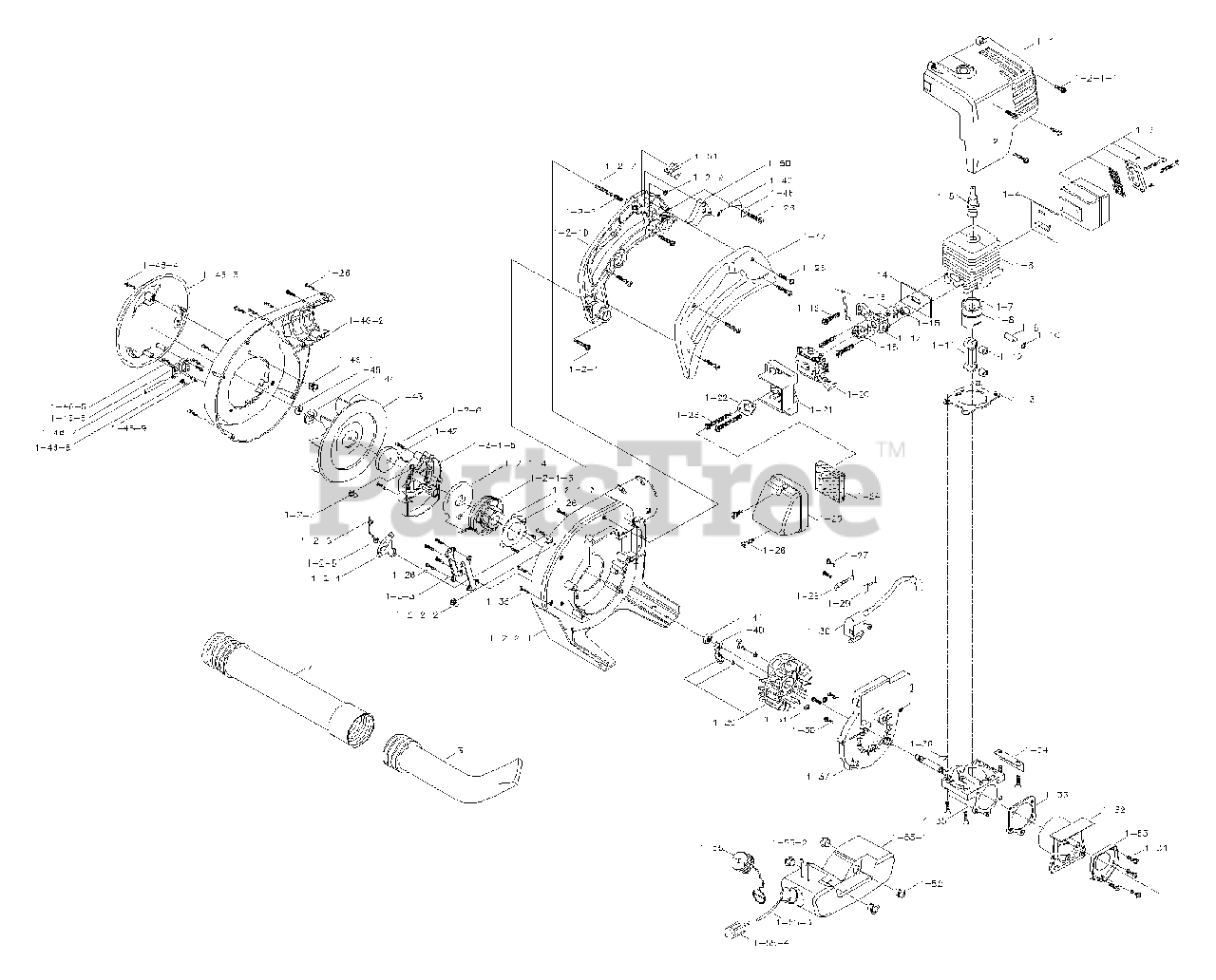

General Assembly Parts Diagram

  • Title

1

MTD MC-9228-320001

MAIN BODY

$

$

Currently unavailable

1-1

MTD MC-9017-320005

COVER,CYL

$

$

Not available

1-2

MTD MC-9228-320012

HUS/HANDLE ASS'Y

$

$

Currently unavailable

1-2-1

MTD MC-9228-320009

HUS ASS'Y

$

$

Currently unavailable

1-2-1-1

MTD MC-9SKKBY8/16-0.75

SCREW

$

$

Currently unavailable

1-2-1-2

MTD MC-9014-320007

PLATE

$

$

Currently unavailable

1-2-1-3

MTD MC-9299-320001

PULLET STARTER

$

$

Currently unavailable

1-2-1-4

MTD MC-9228-310111

SPRING ASS'Y

$

$

Not available

1-2-1-5

MTD MC-9199-320001

KIT, STARTER HUS ASS'Y

$

$

Currently unavailable

1-2-1-6

MTD MC-9194-320001

ROPE

$

$

Not available

1-2-1-7

MTD MC-9059-330301

ROPE GUIDE

$

$

Not available

1-2-2

MTD MC-9228-320002

HUS ASS'Y

$

$

Currently unavailable

1-2-2-1

MTD MC-9038-320001

HOUSING

$

$

Currently unavailable

1-2-2-2

MTD MC-9059-330301

ROPE GUIDE

$

$

Not available

1-2-3

MTD MC-9017-320008

COVER, ROPE

$

$

Not available

1-2-4

MTD MC-9068-320002

HANDLE

$

$

Not available

1-2-5

MTD MC-9014-320006

WASHER

$

$

Not available

1-2-6

MTD MC-9SKKBY8/16-0.75

SCREW

$

$

Currently unavailable

1-2-7

MTD MC-9239-320001

LOCK

$

$

Not available

1-2-8

MTD MC-9024-320002

SPRING

$

$

Currently unavailable

1-2-9

MTD MC-9131-320004

RING, RETAINING

$

$

Not available

1-2-10

MTD MC-9068-320001

HANDLE, LEFT

$

$

Not available

1-2-11

MTD MC-9SJKZ-10/14-0.75

SCREW

$

$

Currently unavailable

1-3

MTD MC-9228-320010

MUFFLER ASS'Y

$

$

Currently unavailable

1-4

MTD MC-9187-320003

PLATE, MUFFLER

$

$

Not available

1-5

MTD MC-9295-320001

SPARK PLUG

$

$

Not available

1-6

MTD MC-9292-320001

CYLINDER

$

$

Currently unavailable

1-7

MTD MC-9189-320001

RING, PISTON

$

$

Not available

1-8

MTD MC-9290-320001

PISTON

$

$

Not available

1-9

MTD MC-9115-320001

PISTON PIN

$

$

Not available

1-10

MTD MC-9131-320002

RING, RETAINING

$

$

Not available

1-11

MTD MC-9175-320001

CONNECTING ROD

$

$

Not available

1-12

MTD MC-9NB-F6491001

BEARING

$

$

Currently unavailable

1-13

MTD MC-9014-320001

GASKET, CYL

$

$

Not available

1-14

MTD MC-9014-320003

GASKET, MANIFOLD

$

$

Not available

1-15

MTD MC-9124-320002

SPACER, RUBBER

$

$

Currently unavailable

1-16

MTD MC-9NAB-10/24

NUT

$

$

Not available

1-17

MTD MC-9296-320001

MANIFOLD

$

$

Not available

1-18

MTD MC-9014-320004

GASKET

$3.49

$

In Stock, only 3 left!

0

1-19

MTD MC-9SKKBY10/24-0.62

SCREW

$

$

Currently unavailable

1-20

MTD MC-9287-320001

CARBURETOR ASS'Y

$

$

Not available

1-21

MTD MC-9081-320001

BOX, AIR FILTER

$

$

Not available

1-22

MTD MC-9187-320002

PLATE, AIR BOX

$

$

Currently unavailable

1-23

MC-9SKKBY10/24-2

SCREW

$

$

Not available

1-24

MTD MC-9252-320001

FILTER, AIR

$

$

Not available

1-25

MTD MC-9017-320004

COVER, AIR BOX

$

$

Not available

1-26

MTD MC-9SKKBY8/16-0.75

PLATE

$

$

Currently unavailable

1-27

MTD MC-9SJBZ-10/24-0.875

SCREW

$

$

Currently unavailable

1-28

MTD MC-9010-320001

WIRE ASS'Y, GROUND

$

$

Not available

1-29

MTD MC-9010-320002

WIRE ASS'Y, STOP SWITCH

$

$

Not available

1-30

MTD MC-9288-310001

IGNITION ASS'Y

$

$

Not available

1-31

MTD MC-9SDKZJ10/24-0.688

SCREW

$

$

Currently unavailable

1-32

MTD MC-9070-320001

CRANKSHAFT PLUG

$

$

Not available

1-33

MTD MC-9014-320002

GASKET

$

$

Not available

1-34

MTD MC-9017-320001

SHIELD, MUFFLER

$

$

Not available

1-35

MTD MC-9228-320003

C'CASE/C'SHAFT ASS'Y

$

$

Not available

1-36

MTD MC-9221-310001

KEY

$

$

Not available

1-37

MTD MC-9017-320002

SHROUD, ENGINE

$

$

Not available

1-38

MTD MC-9SJKB-10/24-0.63

SCREW

$

$

Currently unavailable

1-39

MTD MC-9228-320011

FLYWHEEL ASS'Y

$

$

Currently unavailable

1-40

MTD MC-9014-320005

WASHER

$

$

Not available

1-41

MTD MC-9NAZ-7-16

NUT

$

$

Currently unavailable

1-42

MTD MC-9122-320001

DISC-FIXED

$16.99

$

Usually ships in 3-6 days

0

1-43

MTD MC-9151-320001

IMPELLER

$

$

Not available

1-44

MTD MC-9122-320002

DISC-DRIVE

$

$

Not available

1-45

MTD MC-9NAB-5/16-24

NUT

$

$

Not available

1-46

MTD MC-9228-320008

COVER ASS'Y

$

$

Currently unavailable

1-46-1

MTD MC-9062-320001

INSERT

$

$

Currently unavailable

1-46-2

MTD MC-9199-320002

OUTER HOUSING

$

$

Not available

1-46-3

MTD MC-9017-320009

COVER, FAN

$

$

Currently unavailable

1-46-4

MTD MC-9SJBZ-10/24-0.875

SCREW

$

$

Currently unavailable

1-46-5

MTD MC-9SGKBY10/14-0.625

SCREW

$

$

Currently unavailable

1-46-6

MTD MC-9072-320001

SPRING, TORSIONAL

$

$

Not available

1-46-7

MTD MC-9115-320002

PIN

$

$

Currently unavailable

1-46-8

MTD MC-9024-320003

SPRING

$

$

Not available

1-46-9

MTD MC-9SKKBY8/16-0.75

SCREW

$

$

Currently unavailable

1-47

MTD MC-9068-320003

HANDLE

$

$

Not available

1-48

MTD MC-9WFB-4.9-17

WASHER

$

$

Not available

1-49

MTD MC-9010-320003

CABLE

$

$

Currently unavailable

1-50

MTD MC-9028-320001

THROTTLE TRIGGER

$

$

Not available

1-51

MTD MC-9022-320001

SWITCH

$

$

Not available

1-52

MTD MC-9013-320001

ISOLATOR

$

$

Not available

1-53

MTD MC-9187-320001

PLATE

$

$

Currently unavailable

1-54

MTD MC-9131-320003

RETAINER RING

$

$

Not available

1-55

MTD MC-9228-320007

FUEL TANK ASS'Y

$

$

Currently unavailable

1-55-1

MTD MC-9066-320001

FUEL TANK

$

$

Currently unavailable

1-55-2

MTD MC-9129-320002

HOSE

$

$

Not available

1-55-3

MTD MC-9129-320001

HOSE

$

$

Not available

1-55-4

MTD MC-9182-310001

FILTER

$

$

Not available

1-56

MTD MC-9228-320006

FUEL CAP ASS'Y

$

$

Not available

2

MTD MC-9186-320001

NOZZLE, FISHTAIL

$

$

Not available

3

MTD MC-9186-320002

TUBE

$

$

Not available
