MB 320 BV (41BS320G977) - McCulloch Blower Vacuum Housing Parts Parts Diagram

Blower Vacuum

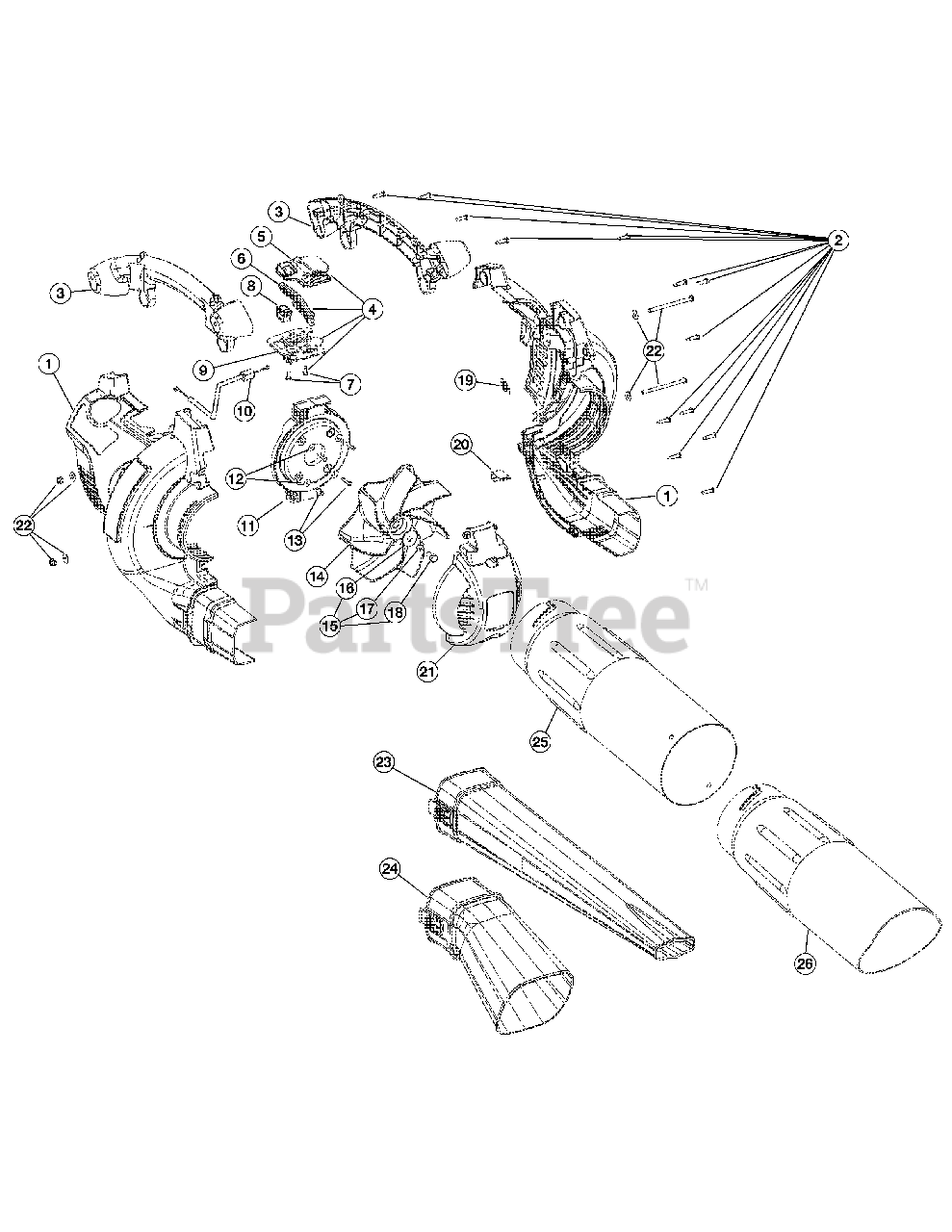

Housing Parts Parts Diagram

  • Title
1

MTD 753-05055

Engine Cover Assm (includes 2)

$

$

Not available

2

$4.49

$

In Stock, Qty 20+

0

3

MTD 753-04451

Handle Assm (includes 2)
(Superseded to 753-05047)

$26.99

$

In Stock, only 3 left!

0

4

MTD 791-00047

Throttle control Assm (includes 5-7 & 9)

$

$

Not available

5

MTD 791-182420

Upper Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

6

MTD 791-00048

Throttle Control Lever

$11.99

$

Usually ships in 3-6 days

0

7

$

$

Not available

8

MTD 791-182405

Rocker Switch Assm

$10.99

$

In Stock, Qty 12

0

9

MTD 791-182422

Lower Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

10

MTD 791-00049

Throttle Cable

$

$

Not available

11

MTD 753-04483

Engine Mount Plate (includes 12 & 13)

$

$

Not available

12

$4.99

$

In Stock, Qty 5

0

13

$

$

Not available

14

MTD 753-04596

Impeller Blade
(Superseded to 731-04275)

$35.99

$

In Stock, only 4 left!

0

15

MTD 753-04482

Impeller Hardware (includes 16-18)

$9.49

$

Usually ships in 3-6 days

0

16

MTD 753-04833

Washer
(Superseded to 736-04107)

$4.49

$

In Stock, only 1 left!

0

17

MTD 753-04834

Lock Washer
(Superseded to 736-04110A)

$5.49

$

In Stock, only 1 left!

0

18

$4.99

$

Usually ships in 3-6 days

0

19

MTD 753-04456

Vacuum Door Spring

$

$

Not available

20

MTD 753-04455

Vacuum Door Lock
(Superseded to 732-04092A)

$9.99

$

Usually ships in 3-6 days

0

21

MTD 753-04454

Vacuum Door

$

$

Not available

22

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

23

MTD 791-182647

Blower Tube

$

$

Not available

24

MTD 791-182477

Vacuum Bag Adaptor

$28.99

$

Usually ships in 3-6 days

0

25

MTD 791-180466

Upper Vacuum Tube

$

$

Not available

26

MTD 791-180467

Lower Vacuum Tube

$38.99

$

In Stock, only 3 left!

0

MTD 791-612930

Cable Tie

$10.99

$

Usually ships in 3-6 days

0

MTD 753-04458

Vacuum Bag Assm (includes 24, Bag, & Cable Tie)

$50.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap

$38.99

$

Usually ships in 3-6 days

0
