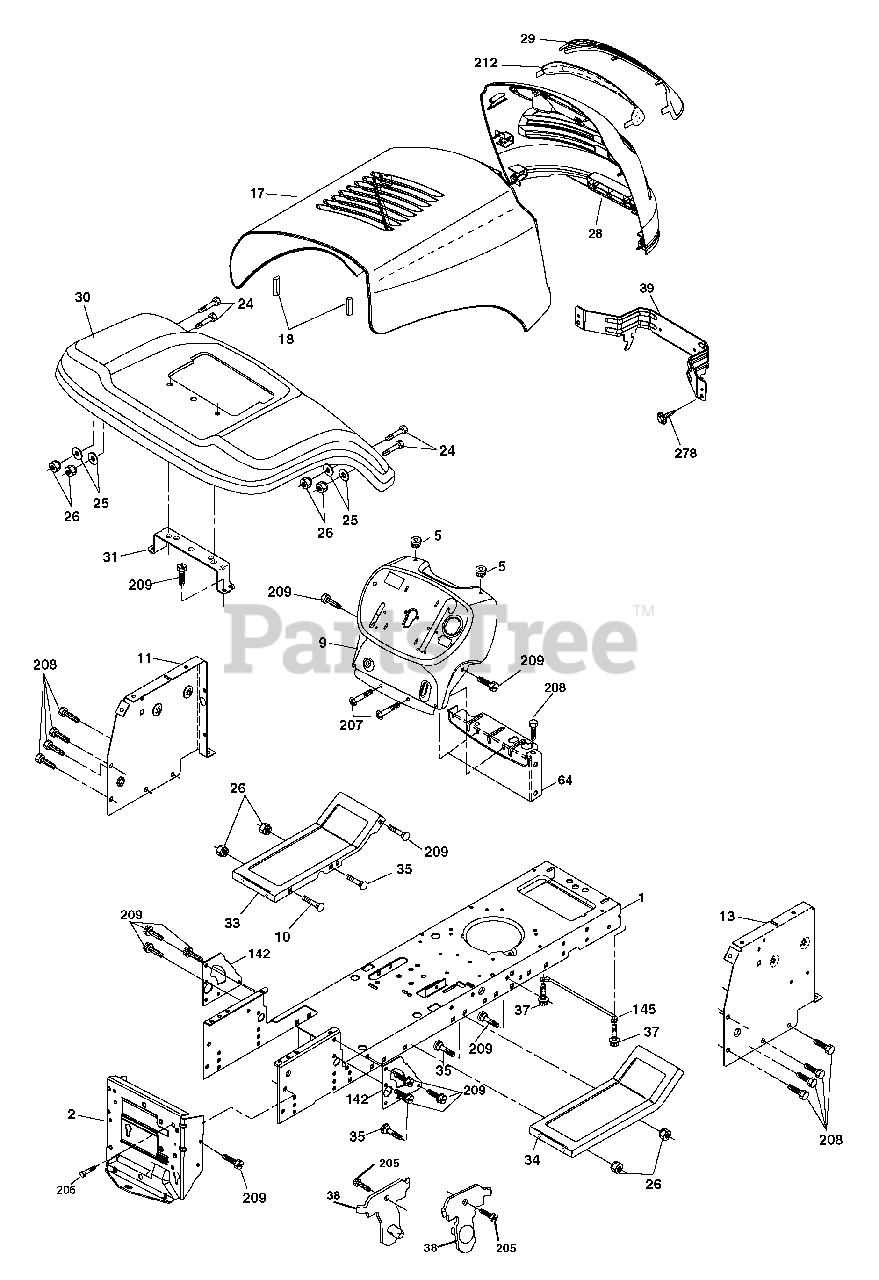

MB 1842 LT (960120059-00) - Murray Lawn Tractor (2006) Chassis Parts Diagram

Lawn Tractor

Chassis Parts Diagram

  • Title

1

Electrolux/AYP 174419

Chassis

$

$

Not available

2

Electrolux/AYP 176554

Drawbar, Stretch
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 155272

Bumper, Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 193510X010

Dash
(Superseded to 584378801)

$62.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

Bolt, Carriage 3/8-16 x 1

$

$

Not available

11

Electrolux/AYP 174996

Panel Dash LH
(Superseded to 532174996)

$

$

Not available

13

Electrolux/AYP 172105X010

Panel Slkscr Dash RH
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 187559X558

Hood
(Superseded to 583705801)

$75.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 9

0

24

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

Nut Lock Hex w/Ins 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 187598

Grille/Lens Asm.
(Superseded to 532426741)

$170.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 187567X599

Lens Grille Bar
(Superseded to 532195402)

$18.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 192526X558

Fender

$69.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

Bracket Fender Repl 109873X
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 179716X428

Footrest Pnt LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 179717X428

Footrest Pnt RH
(Superseded to 532182508)

$

$

Not available

35

Electrolux/AYP 72110606

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket Asm. Pivot Mower
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 187568

Bracket Pivot
(Superseded to 532187568)

$28.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 154798

Dash Lower
(Superseded to 532154798)

$20.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 175702

Plate Reinforcement
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

205

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 5

0

207

Electrolux/AYP 17670508

Screw THDROL 5/16-18 x 1/2
(Superseded to 817670508)

$9.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

212

Electrolux/AYP 187569

Insert Lens Refl ect
(Superseded to 532187569)

$10.99

$

Usually ships in 3-10 days

0

278

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

Electrolux/AYP 5479J

Plug Button Blk 359 Dia Choke
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 187801

Plug Dome Plastic
(Superseded to 532187801)

$4.99

$

Usually ships in 3-10 days

0
