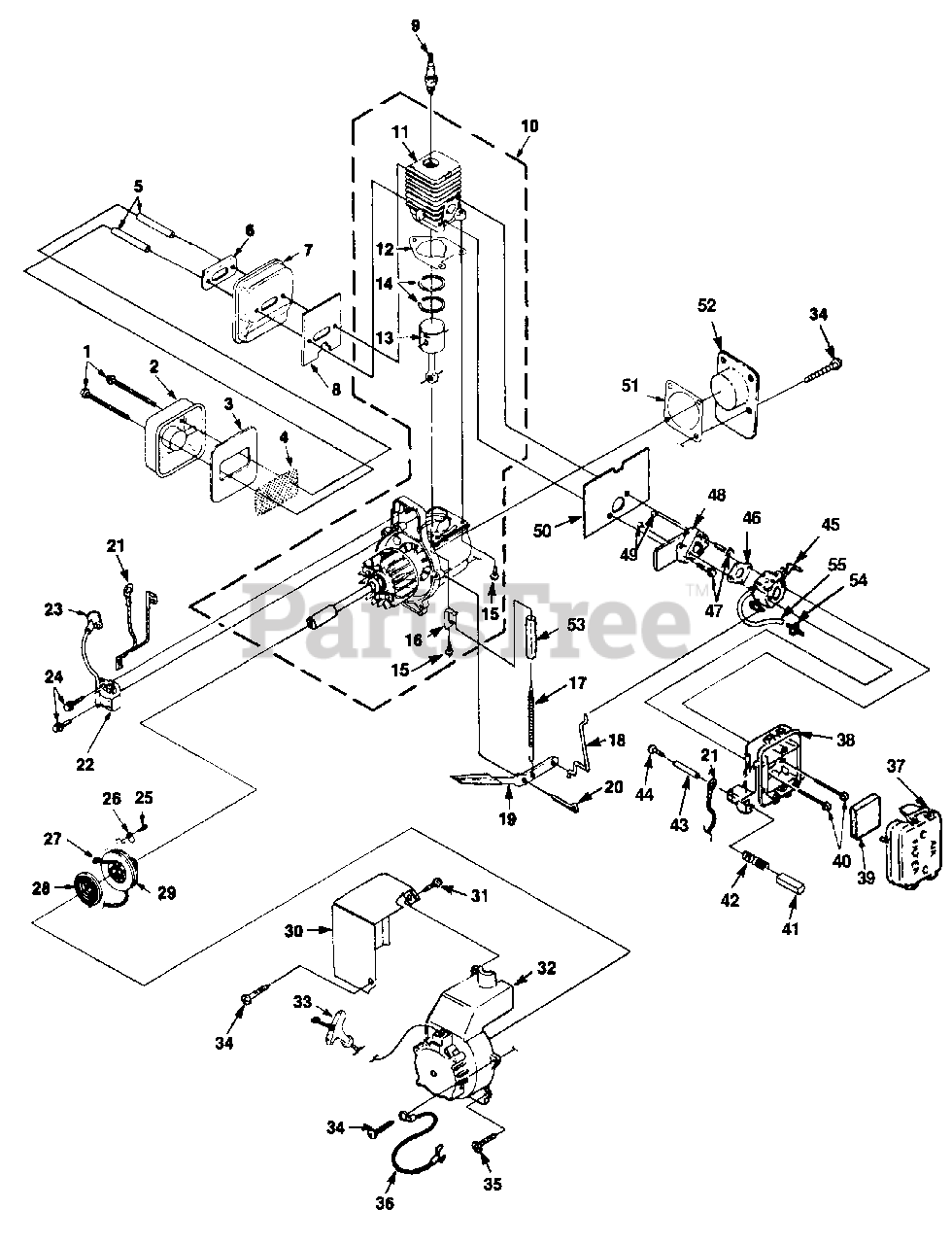

MB 1000 (UT-01596-1) - Homelite Pressure Washer Engine & Peripherals Parts Diagram

Pressure Washer

Engine & Peripherals Parts Diagram

  • Title

1

Homelite 82588

SCREW- Sems Hex Hd. (10-24 x 3")

$

$

Not available

2

Homelite A03825

COVER- Muffler

$

$

Currently unavailable

3

Homelite 98782

BAFFLE- Muffler
(Superseded to UP05878)

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 98784A

SCREEN- Spark

$

$

Currently unavailable

5

Homelite 03824

SPACER- Muffler

$

$

Not available

6

Homelite 98783

PLATE- Reinforcing

$

$

Not available

7

Homelite A01323

BODY- Muffler
(Superseded to A04837)

$

$

Not available

8

Homelite 00431

GASKET- Muffler

$

$

Currently unavailable

9

Homelite 96169S

SPARK PLUG
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

10

Homelite A01357

SHORT BLOCK

$

$

Currently unavailable

11

Homelite A03785A

CYLINDER
(Superseded to UP07146A)

$

$

Not available

12

Homelite 03703A

GASKET- Cylinder
(Superseded to UP03857)

$

$

Not available

13

Homelite A03599

PISTON & ROD
(Superseded to UP03037)

$91.99

$

In Stock, only 1 left!

0

14

Homelite 03179

RING- Piston
(Superseded to 690161005)

$

$

Not available

15

Homelite 82569

SCREW-Thd. Form
(Superseded to 825691)

$

$

Not available

16

Homelite 00470

BRACKET- Governor

$

$

Not available

17

Homelite 03077

SPRING- Extension
(Superseded to 03077A)

$

$

Not available

18

Homelite 00468

ROD

$

$

Not available

19

Homelite 03627

VANE- Governor

$

$

Not available

20

Homelite JA460014

PIN- Cotter

$

$

Not available

21

Homelite A00437

LEAD- Electrical

$10.99

$

Usually ships in 3-7 days

0

22

Homelite 94711CS

MODULE- Ignition

$

$

Not available

23

Homelite A33055

TERMINAL- Hi Tension

$

$

Not available

24

Homelite 82540

SCREW- Thd. Form (8-32 x 1")

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 82541

SCREW- Thd. Form (#10 x 1/2")

$1.99

$

In Stock, only 3 left!

0

26

Homelite 98791

BRACKET- Retaining

$

$

Not available

27

Homelite 9789901

ROPE- Starter
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

28

Homelite A98773

SPRING & CONTAINER

$

$

Currently unavailable

29

Homelite 98770

PULLEY- Starter
(Superseded to 98770A)

$3.99

$

Usually ships in 3-7 days

0

30

Homelite 00469

SHIELD

$15.99

$

Usually ships in 3-7 days

0

31

Homelite 82541

SCREW- Thd. Form (#10 x 1/2")

$1.99

$

In Stock, only 3 left!

0

32

Homelite A0123712

HOUSING w/EYELET
(Superseded to A04113A)

$

$

Currently unavailable

33

Homelite 02264

GRIP- Starter
(Superseded to UP03832)

$

$

Not available

34

Homelite 82538

SCREW- (10-24 x 3/4")

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 82587

SCREW- (10-24 x 1 1/4")

$

$

Not available

36

Homelite A00506

LEAD- Ground

$7.49

$

Usually ships in 3-7 days

0

37

Homelite 00218A

COVER- Air Filter
(Superseded to A04573)

$

$

Not available

38

Homelite 00217A

BOX- Air Filter
(Superseded to A04573)

$

$

Not available

39

Homelite D98760A

FILTER- Air

$

$

Currently unavailable

40

Homelite 82574

SCREW- Truss Hd. (10-24 x 2 1/2")

$

$

Not available

41

Homelite 98769

BUTTON- Stop

$4.99

$

Usually ships in 3-7 days

0

42

Homelite 95020

SPRING- Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 00576

SPACER

$

$

Not available

44

Homelite 82526

SCREW- Pan Hd. (6-19 x 3/4")

$

$

Not available

45

Homelite A04374

CARBURETOR

$

$

Currently unavailable

46

Homelite 98766A

GASKET- Carburetor
(Superseded to 900994004)

$

$

Not available

47

Homelite 825491

SCREW- Thd. Form (10-24 x 1")
(Superseded to UP05542)

$

$

Not available

48

Homelite 00864B

DAM- Heat
(Superseded to 00864C)

$26.99

$

Usually ships in 3-7 days

0

49

Homelite 81208

NUT- (10-24)

$

$

Not available

50

Homelite 01104

GASKET- Heat Dam

$

$

Not available

51

Homelite 98767A

GASKET- Crankcase Cover

$

$

Not available

52

Homelite 98754B

COVER- Crankcase

$

$

Currently unavailable

53

Homelite 03075

SLEEVE

$

$

Not available

54

Homelite 02067

FITTING- Fuel Inline

$

$

Not available

55

Homelite 9477222

TUBING- Rubber (5 1/2")

$

$

Not available
