MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) TRENCHER CONTROL VALVE ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

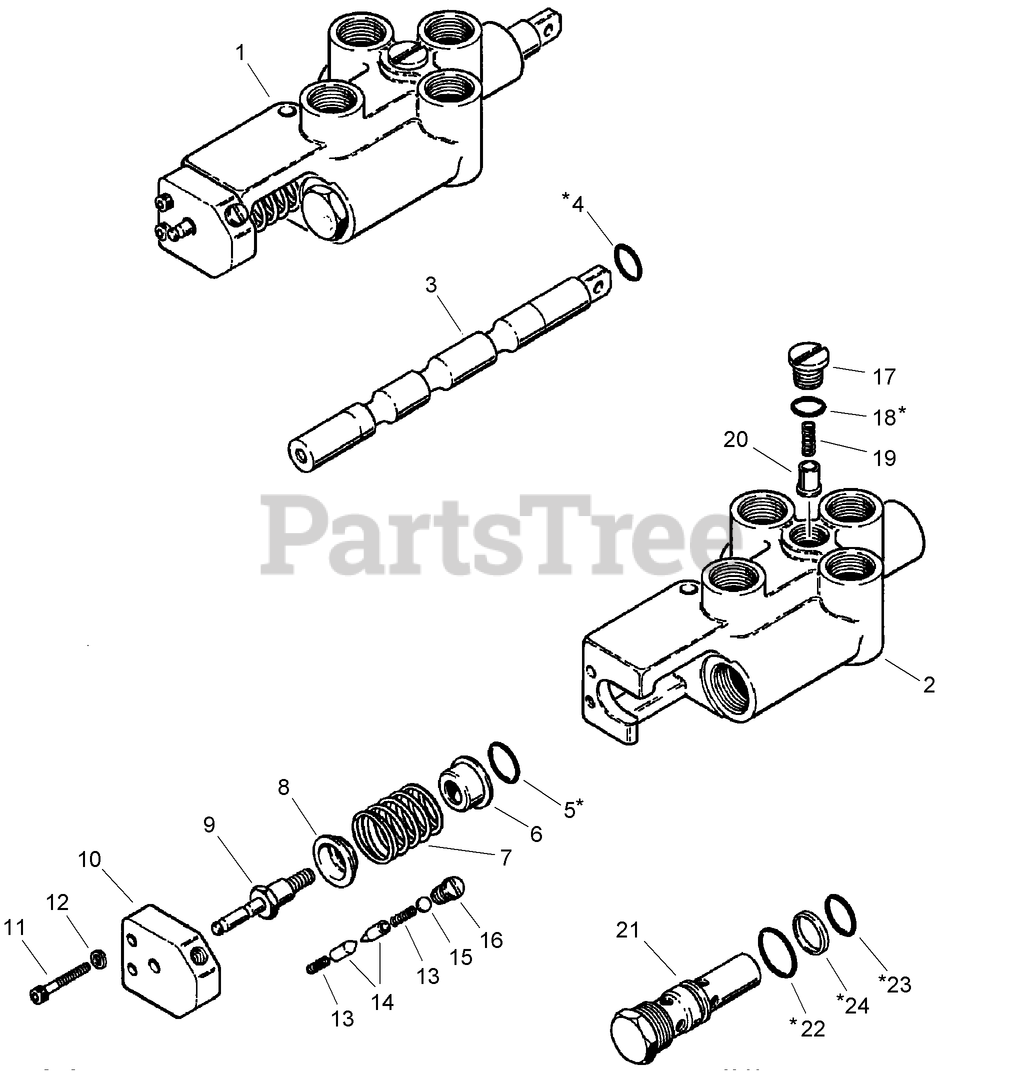

TRENCHER CONTROL VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro AUH544718

HYD VALVE ASM

$3752.99

$

Usually ships in 3-6 days

0

2

BODY - Control Valve

Note: Not serviced separately

$

$

Not available

3

SPOOL - Control Valve

Note: Not serviced separately

$

$

Not available

4

Toro AUF37887

O-RING - Spool, Spool Eye End

$2.49

$

Usually ships in 3-6 days

0

5

Toro AU238-5114

O-RING
(Superseded to 60-5720)

$2.49

$

Usually ships in 3-6 days

0

6

Toro AUH138271

RETAINER - Spring, Inner

$

$

Not available

7

Toro AUH52928

SPRING - Centering, Spool

$10.99

$

Usually ships in 3-6 days

0

8

Toro AUF59116

SEAT - Spring, Outer

$10.99

$

Usually ships in 3-6 days

0

9

Toro AUH152157

SCREW - Spool End, Detent

$196.99

$

Usually ships in 3-6 days

0

10

Toro AUH125831

BLOCK - Detent

$558.99

$

Usually ships in 3-6 days

0

11

Toro AU470-12516

SCREW - Machine, Pan Head Slotted, 1/4 NC x 1 inch

$

$

Not available

12

Toro AU492-11025

WASHER-Spring Lock Reg 0.250 in ZND
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

13

Toro AUH105049

SPRING - Detent

$2.49

$

Usually ships in 3-6 days

0

14

Toro AUH104992

DETENT - Spool, Detent

$

$

Currently unavailable

15

Toro AUH141788

DISC - Detent

$

$

Not available

16

Toro AUH424200

PLUG - Detent

$

$

Not available

Toro AUH47506

PLUG ASSEMBLY - Load Check Valve

Note: Not illustrated

$

$

Not available

17

PLUG - Load Check

Note: Not serviced separately

$

$

Not available

18

Toro AU238-7112

O-RING - 1/2 ID x 3/32 inch Wide
(Superseded to AU238-5112)

$0.99

$

Usually ships in 3-6 days

0

19

Toro AUFH730374

SPRING - Load Check Valve

$

$

Currently unavailable

20

Toro AUFH730366

POPPET - Load Check Valve

$44.99

$

Usually ships in 3-6 days

0

Toro AUN8813

VALVE ASSEMBLY - Relief, Control Valve

Note: Not illustrated

$

$

Not available

21

VALVE - Relief, Control Valve

Note: Not serviced separately

$

$

Not available

22

Toro AU238-5116

O-RING-3/4 ID x 3/32 inch wide

$

$

Not available

23

Toro AU238-5114

O-RING
(Superseded to 60-5720)

$2.49

$

Usually ships in 3-6 days

0

24

Toro AUG32626

RING - Backup, Plug O-Ring

$

$

Not available

Toro AUH125864

KIT - Seal Replacement (includes all items with an asterisk)

Note: Not illustrated

$

$

Currently unavailable
