Maxi Sneaker Series E Trencher

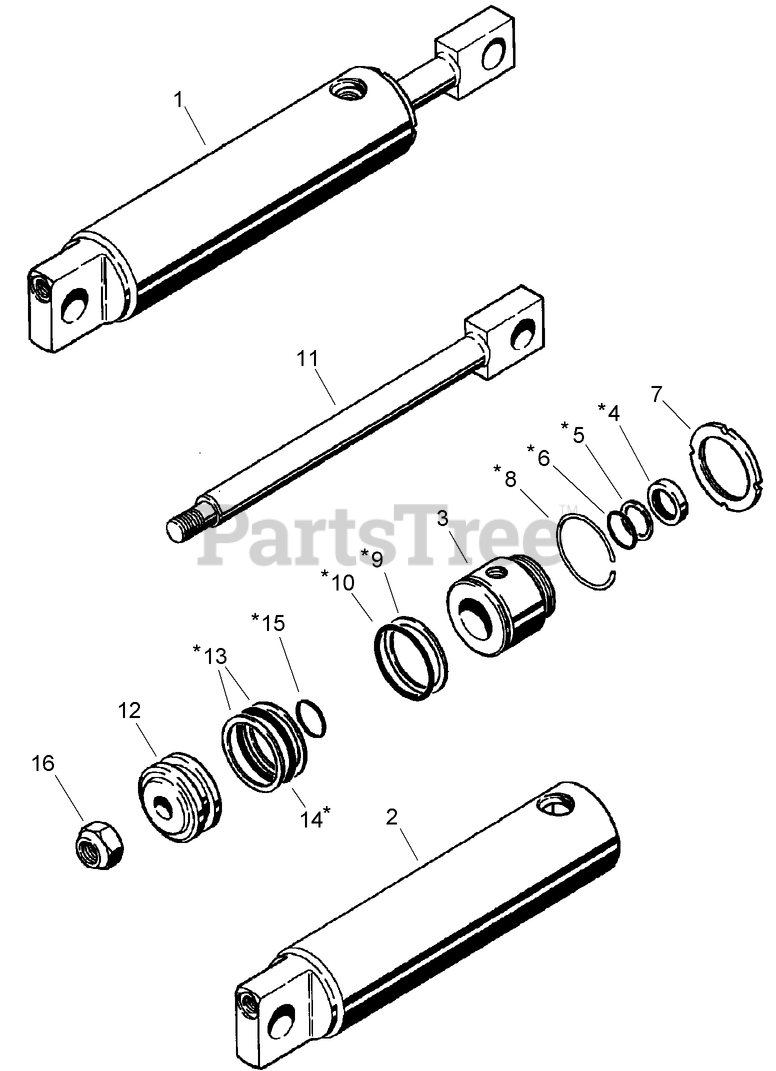

TRENCHER BOOM LIFT CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro AUH504076

HYD CYLINDER ASM

$2054.99

$

Usually ships in 3-6 days

0

2

Toro AUH72215

TUBE - Cylinder

$

$

Currently unavailable

3

Toro AUH70078

GLAND - Cylinder

$

$

Currently unavailable

4

Toro AUH220475

WIPER - Rod

$

$

Not available

5

Toro AUA35899

RING - Backup, O-Ring, Gland Inner, Piston Rod

$19.99

$

Usually ships in 3-6 days

0

6

Toro AU238-5214

O-RING - 1 ID x 1/8 inch Wide, Gland, Inner, Piston Rod
(Superseded to AU86629540)

$1.49

$

Usually ships in 3-6 days

0

7

Toro AUH745786

NUT - Gland Locking

$

$

Not available

8

Toro AUA35898

RING - Retaining

$

$

Not available

9

Toro AUA35901

RING - Backup, Gland O-Ring, Outer

$30.99

$

Usually ships in 3-6 days

0

10

Toro AU238-5228

O-RING - 2-1/4 ID x 1/8 inch Wide, Gland, Outer

$2.49

$

Usually ships in 3-6 days

0

11

Toro AUH66571

ROD - Piston, 25 mm (1 inch) Diameter

$1712.99

$

Usually ships in 3-6 days

0

12

Toro AUA35897

PISTON - Cylinder

$

$

Not available

13

Toro AUA35810

RING - Backup

$

$

Not available

14

Toro AU238-5330

O-RING - 2-1/8 ID x 3/16 inch Wide, Outer
(Superseded to AU510200)

$1.99

$

Usually ships in 3-6 days

0

15

Toro AU238-5214

O-RING - 1 ID x 1/8 inch Wide, Gland, Inner, Piston Rod
(Superseded to AU86629540)

$1.49

$

Usually ships in 3-6 days

0

16

Toro AU232-46112

NUT-hex, self-locking, 3/4 inch NF

$2.49

$

Usually ships in 3-6 days

0

Toro AUH507350

KIT - Seal Replacement (includes all items with an asterisk)

Note: Not illustrated

$71.99

$

Usually ships in 3-6 days

0
