MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) TRANSMISSION ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

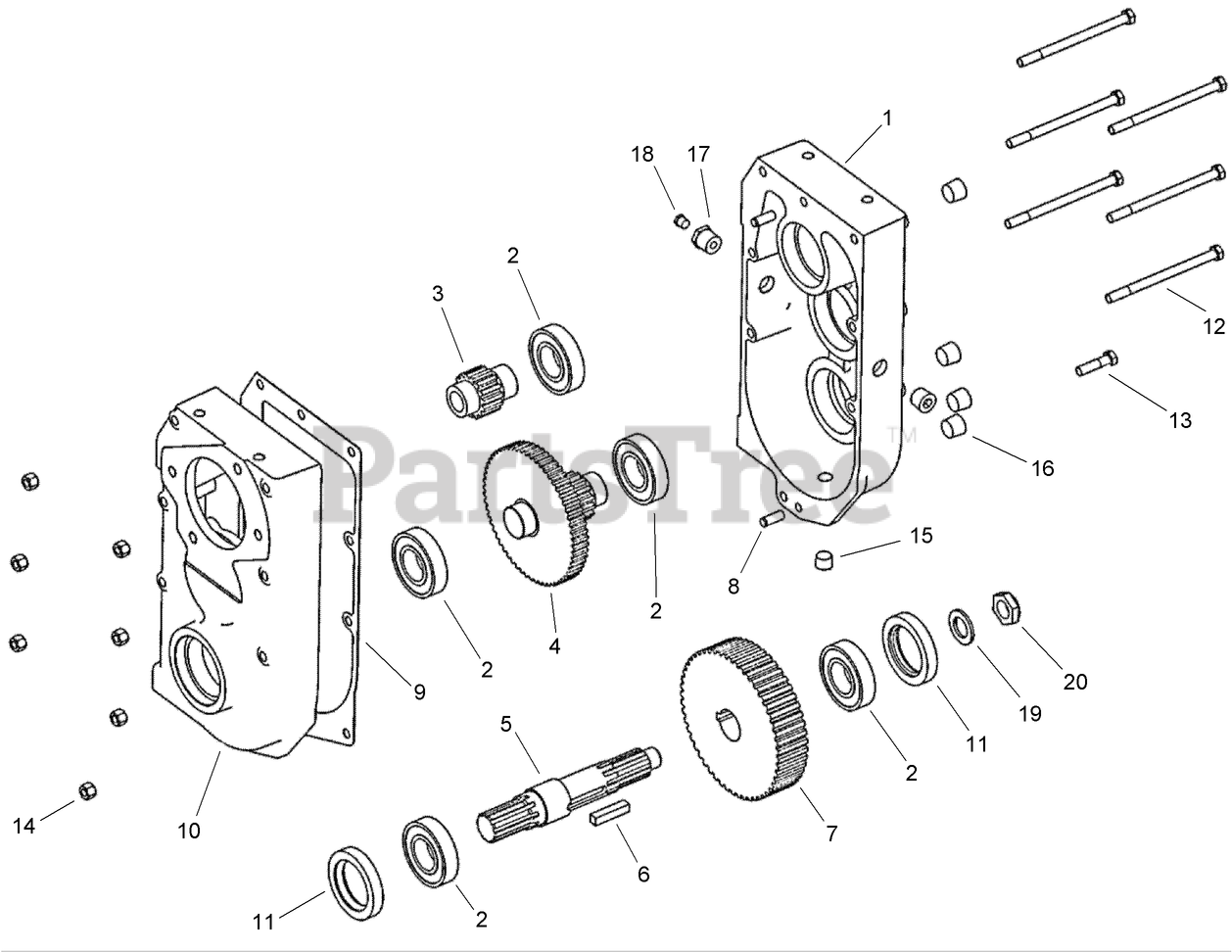

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

Toro AU104951

TRANSMISSION ASM

Note: Not illustrated

$6512.99

$

Usually ships in 3-6 days

0

1

Toro AU104545

CASE-GEAR

$850.99

$

Usually ships in 3-6 days

0

2

Toro AUA26581

BEARING

$101.99

$

Usually ships in 3-6 days

0

3

Toro AUH253112

GEAR-MOTOR, 18 TEETH

$1646.99

$

Usually ships in 3-6 days

0

4

Toro AUH253153

GEAR-CLUSTER, 59/15 TEETH

$2990.99

$

Usually ships in 3-6 days

0

5

Toro AUH253138

SHAFT-OUTPUT

$592.99

$

Usually ships in 3-6 days

0

6

Toro AUH70045

KEY-SQUARE

$24.99

$

Usually ships in 3-6 days

0

7

Toro AUH253146

GEAR-REDUCTION, 51 TEETH

$1533.99

$

Usually ships in 3-6 days

0

8

Toro AUH755272

PIN-DOWEL

$2.99

$

Usually ships in 3-6 days

0

9

Toro AUH413153

GASKET

$46.99

$

Usually ships in 3-6 days

0

10

Toro AU104546

CASE-GEAR

$1351.99

$

Usually ships in 3-6 days

0

11

Toro AUH754226

SEAL-OIL

$60.99

$

Usually ships in 3-6 days

0

12

Toro AU426-688

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

13

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU230-4216

NUT
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

15

Toro AU217-436

PLUG-HEX SOCKET, PIPE

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU217-439

PLUG-PIPE, HEX SOCKET

$1.99

$

Usually ships in 3-6 days

0

17

Toro AU221-87

FITTING-STRAIGHT

$9.99

$

Usually ships in 3-6 days

0

18

Toro AUR11152

VENT

$16.99

$

Usually ships in 3-6 days

0

19

Toro AUH224501

WASHER

$3.99

$

Usually ships in 3-6 days

0

20

Toro AU131-465

NUT - Jam, Hex, 7/8 - 14 NF, Nyloc
(Superseded to 32-9660)

$3.49

$

In Stock, Qty 20+

0
