MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) TIRE AND WHEEL ASSEMBLY SINGLE TIRE AND WHEEL Parts Diagram

Maxi Sneaker Series E Trencher

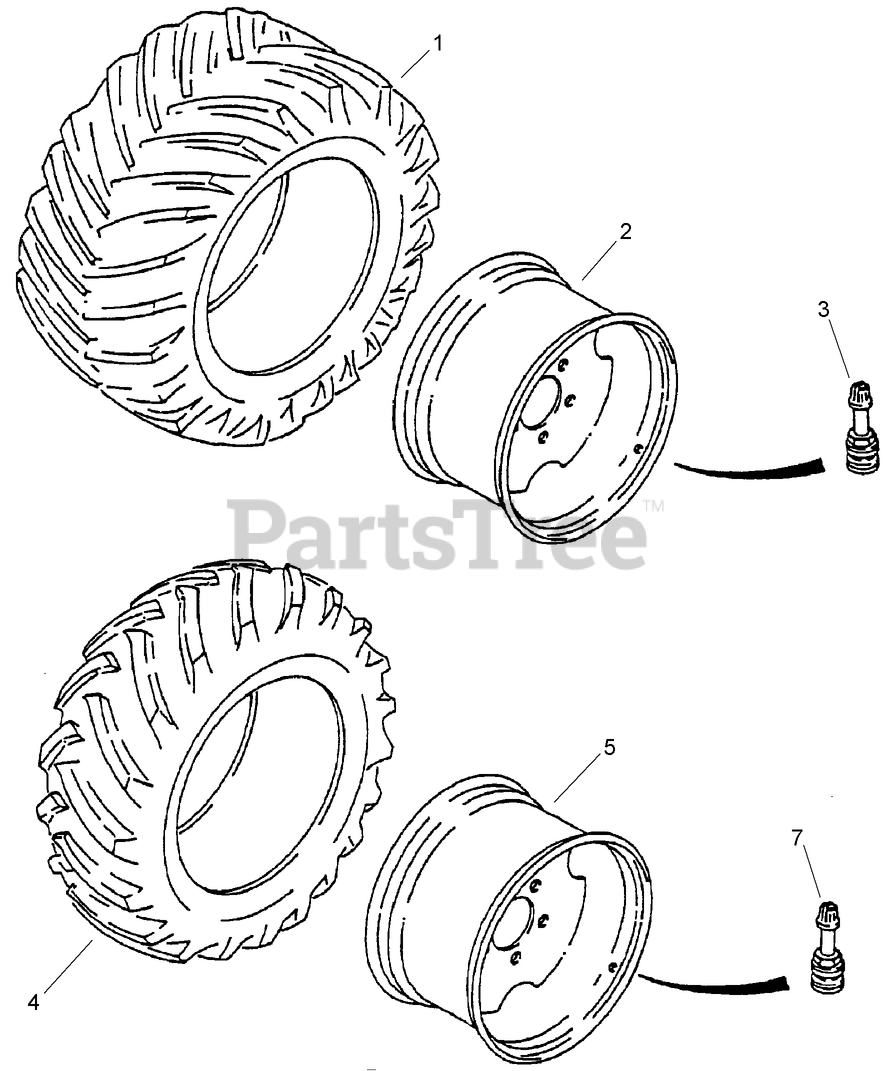

TIRE AND WHEEL ASSEMBLY SINGLE TIRE AND WHEEL Parts Diagram

  • Title

Toro AU223687A1

ASSY - Tire and Wheel

Note: Not illustrated

$

$

Not available

1

TIRE - 23 x 10.50 x 12, 4 PR, All Traction, Super Terra Grip (purchase locally)

Note: Not serviced separately

$

$

Not available

2

Toro AU113388A1

WHEEL - Rim, 8.50 x 12 inch, Used with 10.50 x 12 Tire

$

$

Not available

3

Toro AUT57461

STEM-Valve

$10.99

$

Usually ships in 3-6 days

0

Toro AU223685A1

ASSY - Tire and Wheel

Note: Not illustrated

$

$

Not available

1

TIRE - 26 x 12 x 12, 8 PR, All Traction, Super Terra Grip (purchase locally)

Note: Not serviced separately

$

$

Not available

2

Toro AU122169A1

WHEEL - Rim, Used with 26 x 12 x 12 Tire

$475.99

$

Usually ships in 3-6 days

0

Toro AU107870

TURF TIRE ASSY

Note: Not illustrated

$

$

Currently unavailable

4

TIRE - 26 x 12 x 12, 4 PR, Hi-Flotation, Super Terra Grip (purchase locally)

Note: Not serviced separately

$

$

Not available

5

Toro AU122169A1

WHEEL - Rim, Used with 26 x 12 x 12 Tire

$475.99

$

Usually ships in 3-6 days

0

6

TUBE - Tire, 12 x 12 (purchase locally)

Note: Not illustrated

$

$

Not available

7

Toro AUT57461

STEM-Valve

$10.99

$

Usually ships in 3-6 days

0
