MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) STEERING CYLINDER ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

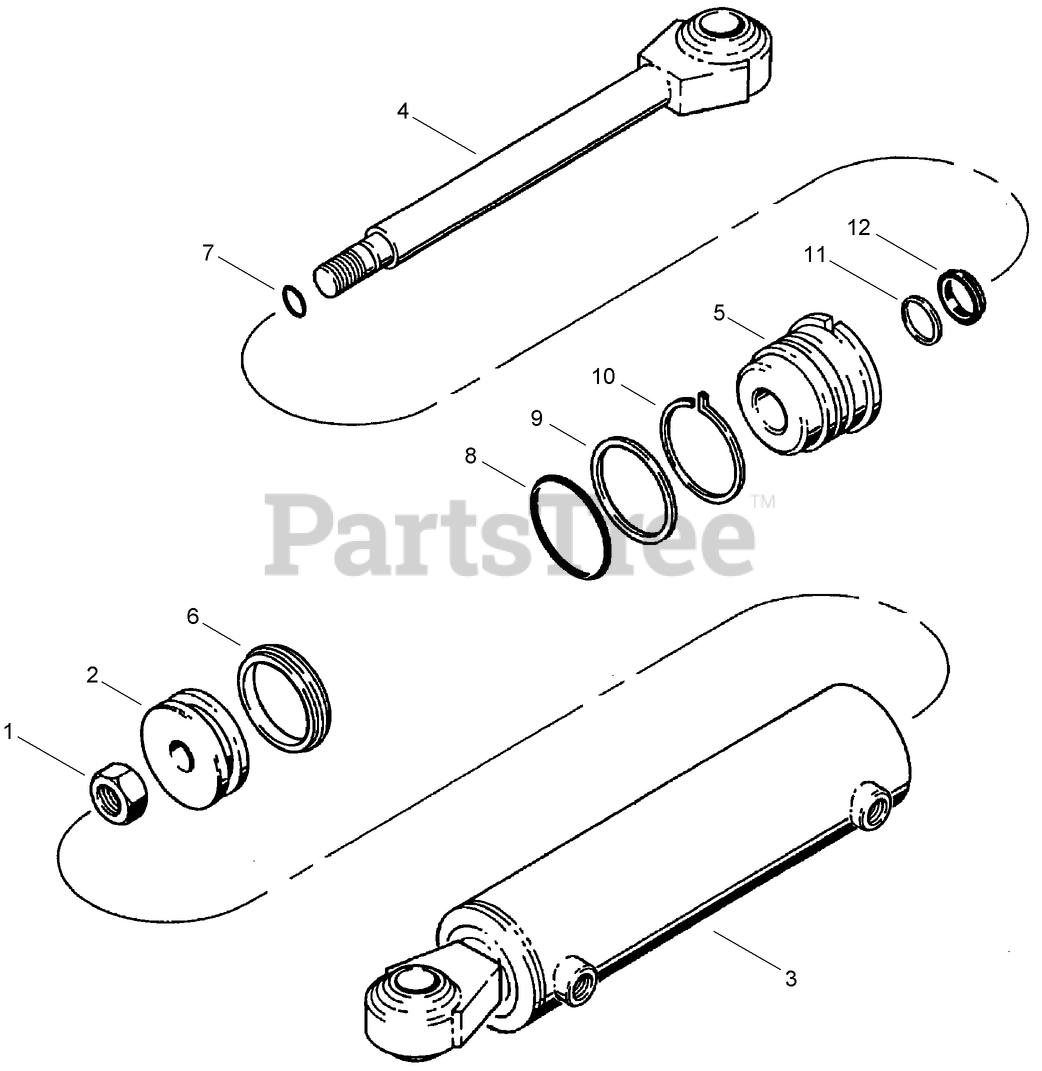

STEERING CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AU86992252

CYLINDER ASSEMBLY - 60 (2-3/8in) ID x 127 mm (5in) Stroke, Steering
(Superseded to AU125471)

Note: Not illustrated

$1704.99

$

Usually ships in 3-6 days

0

1

Toro AU230-46112

NUT - Hex, Self-Locking, .75-16, 65 x 1.12
(Superseded to AU232-46112)

$2.49

$

Usually ships in 3-6 days

0

2

Toro AU87404097

PISTON - Cylinder, 2.50 x 0.75

$

$

Currently unavailable

3

Toro AU87404095

TUBE - Cylinder, 2.50

$

$

Currently unavailable

4

Toro AU87404096

ROD - Piston

$

$

Not available

5

Toro AU87404098

GLAND - Cylinder, 2.50 x 1.00

$

$

Currently unavailable

6

SEAL - Piston, Outer

Note: Not serviced separately

$

$

Not available

7

O-RING

Note: Not serviced separately

$

$

Not available

8

O-RING

Note: Not serviced separately

$

$

Not available

9

RING - Backup, Gland O-Ring

Note: Not serviced separately

$

$

Not available

10

WIRE - Gland Locking

Note: Not serviced separately

$

$

Not available

11

SEAL - Rod

Note: Not serviced separately

$

$

Not available

12

WIPER - Piston Rod

Note: Not serviced separately

$

$

Not available

Toro AU118070

Kit - Seal Replacement (Includes Items 6-12)

Note: Not illustrated

$121.99

$

Usually ships in 3-6 days

0
