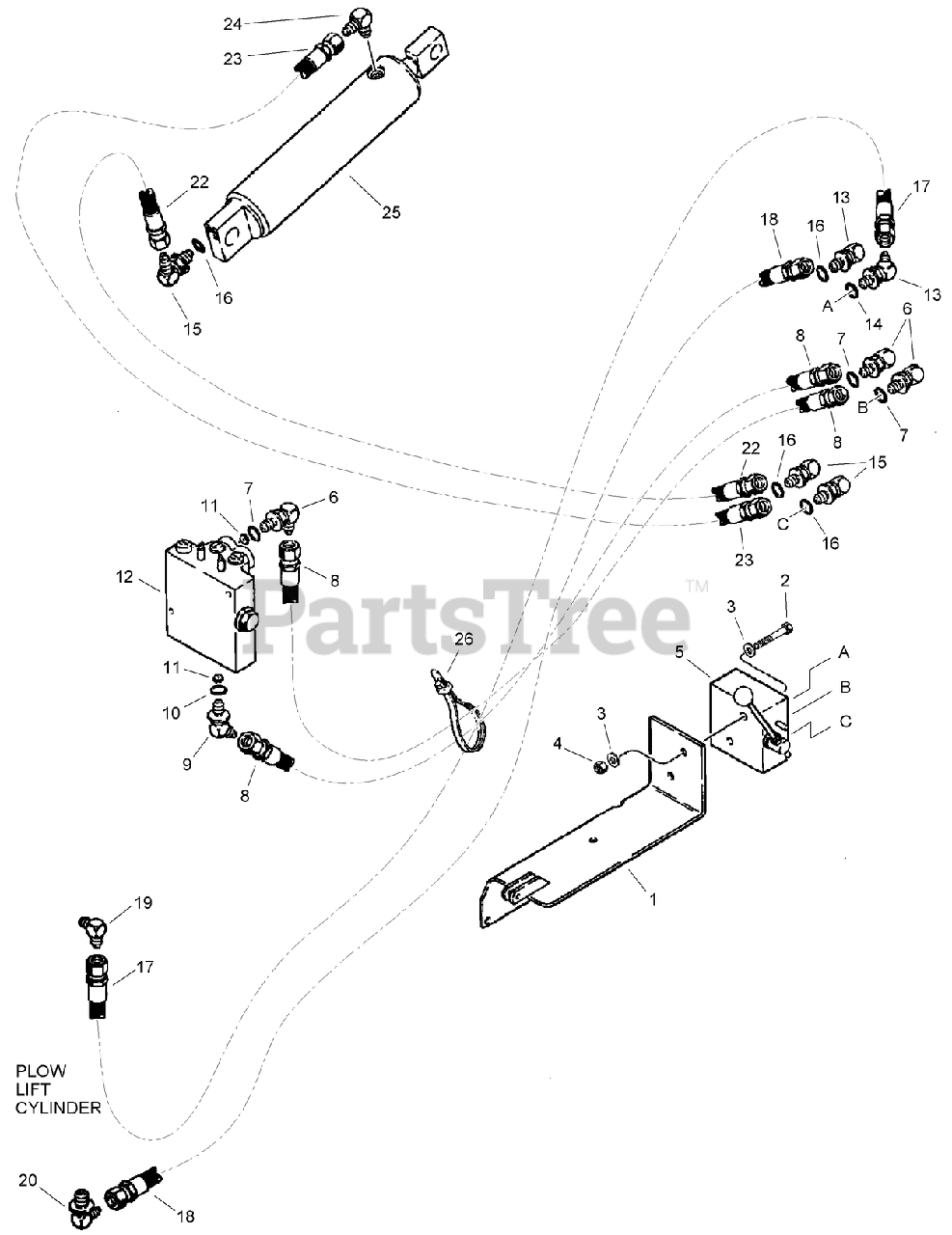

SELECTOR VALVE AND ATTACHMENT LIFT HYDRAULIC CIRCUITS Parts Diagram

  • Title

Toro AU191322A1

TRENCHER ATTACHMENT - Quad REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU179579A1

BRACKET - Switch and Valve Mounting

$

$

Not available

2

Toro AU426-652

BOLT

$2.99

$

Usually ships in 3-6 days

0

3

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUH672689

HYD CONTROL VALVE ASM
(Superseded to 127-6557)

$1262.99

$

Usually ships in 3-6 days

0

6

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

7

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

8

Toro AUH169151

HOSE - 610 mm (24 inch) Long, from Plow Lift Ports on Steering Control Valve

$

$

Not available

9

Toro AU218-5135

ELBOW-45 Adj 37FL 3/8 Tube

$17.99

$

Usually ships in 3-6 days

0

10

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

11

Toro AUH757815

ORIFICE

$21.99

$

Usually ships in 3-6 days

0

12

Toro AU407213A1

HYD STEERING VALVE ASM

$2427.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5552

ELBOW-90 Deg

$24.99

$

Usually ships in 3-6 days

0

14

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

15

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

16

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

17

Toro AUH165282

HOSE - 533 mm (21 inch) Long, Upper Right-hand Port of Selector Valve to Rod End of Plow Lift Cylinder

$66.99

$

Usually ships in 3-6 days

0

18

Toro AUH171264

HOSE - 457 mm (18 inch) Long, Upper Left-hand Port of Selector Valve to Closed End of Plow Lift Cylinder

$

$

Not available

19

Toro AU218-1053

ELBOW - 90, 37FL 3/8 Tube x 3/8 NPFT

$12.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6008

O-RING
(Superseded to AU128825)

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

22

Toro AUH433466

HOSE - 2050 mm (80-11/16 inch) Long, Lower Left-hand Port of Selector Valve to Closed End of Trencher Lift Cylinder1

$132.99

$

Usually ships in 3-6 days

0

23

Toro AUH433468

HOSE - 2250 mm (88-5/8 inch) Long, Lower Right-hand Port of Selector Valve to Rod End of Trencher Lift Cylinder

$

$

Not available

24

Toro AU218-1053

ELBOW - 90, 37FL 3/8 Tube x 3/8 NPFT

$12.99

$

Usually ships in 3-6 days

0

25

Toro AUH504076

HYD CYLINDER ASM

$2054.99

$

Usually ships in 3-6 days

0

26

Toro AUL18337

STRAP - Tie, 15 inch, Nylon, Retaining
(Superseded to AUL18331)

$2.49

$

Usually ships in 3-6 days

0
