MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) ROCK SAW HYDRAULIC CIRCUIT Parts Diagram

Maxi Sneaker Series E Trencher

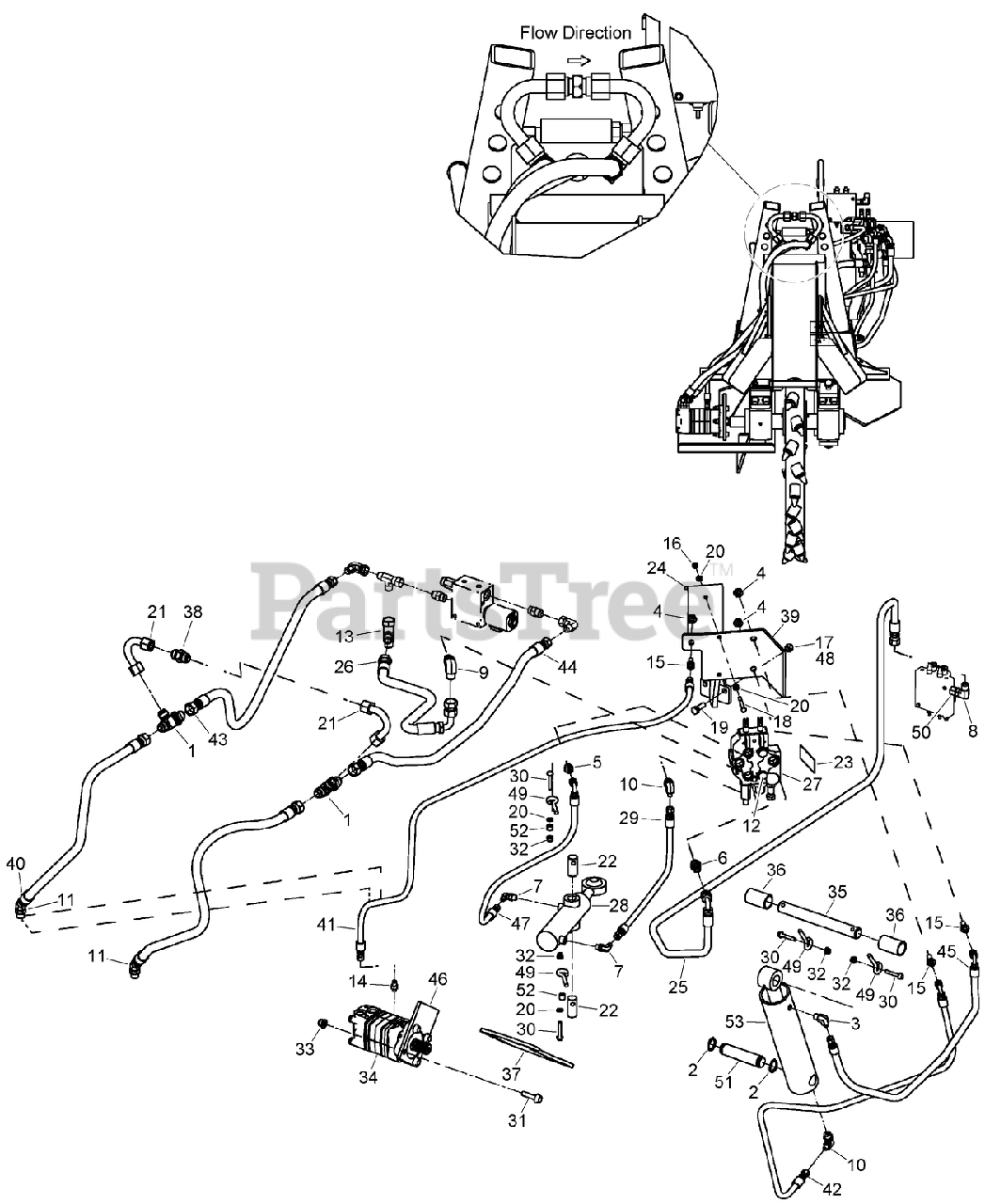

ROCK SAW HYDRAULIC CIRCUIT Parts Diagram

  • Title

Toro AU107987

ROCK SAW - 18 inch Depth

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU91-203008-12-12S

TEE - Bulkhead Adapter

$

$

Currently unavailable

2

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

In Stock, only 1 left!

0

3

Toro AU218-1053

ELBOW - 90, 37FL 3/8 Tube x 3/8 NPFT

$12.99

$

Usually ships in 3-6 days

0

4

Toro AU218-1254

NUT-LOCK, BULKHEAD

$3.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

6

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$7.99

$

Usually ships in 3-6 days

0

7

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

8

Toro AU218-5117

ELBOW - 90 Degree, 7/8-14 Flare x 3/4-16 inch Adj O-Ring Boss
(Superseded to AU86527)

$40.99

$

Usually ships in 3-6 days

0

9

Toro AU218-5123

ELBOW-90 Adj 37FL 3/4 x 5/8 Tube

$11.99

$

Usually ships in 3-6 days

0

10

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

11

Toro AU218-5137

FITTING-ELBOW-45 DEG

$39.99

$

Usually ships in 3-6 days

0

12

Toro AU218-5156

PLUG-HEX HD

$6.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5221

FITTING-TEE

$56.99

$

Usually ships in 3-6 days

0

14

Toro AU218-5352

ADAPTER-STRAIGHT

$5.99

$

Usually ships in 3-6 days

0

15

Toro AU218-673

UNION-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

16

Toro AU232-4115

NUT-HEX

$

$

Not available

17

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU426-544

BOLT - Hex, 5/16 NC x 2-3/4 inch

$

$

Not available

19

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

20

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU107330A1

TUBE ASM

$71.99

$

Usually ships in 3-6 days

0

22

Toro AU127396A1

PIN-pivot

$174.99

$

Usually ships in 3-6 days

0

23

Toro AU127447A1

DECAL-plow control pattern, lift/swing

$9.49

$

Usually ships in 3-6 days

0

24

Toro AU177568A1

BRACKET - Mounting, Plow Control Valve

$1079.99

$

Usually ships in 3-6 days

0

25

Toro AU178344A1

HOSE - 2135 mm (84 inch) Long, Steering and Attachment Lift Control Valve to Plow Control Valve

$

$

Currently unavailable

26

Toro AU183290A1

HOSE - 457 mm (18 inch) Long, Plow Lift / Swing Control Valve to Tee

$

$

Currently unavailable

27

Toro AU220409A1

VALVE ASSEMBLY - Control, Plow Lift and Swing

$4911.99

$

Usually ships in 3-6 days

0

28

Toro AU230679A1

CYLINDER ASSEMBLY - 51 (2) ID x 143 mm (5-5/8 inch) Stroke, Plow Swing

$1386.99

$

Usually ships in 3-6 days

0

29

Toro AU231081A1

HOSE - 510 mm (20 inch) Long, Plow Control Valve to Plow Swing Cylinder, Closed End

$

$

Not available

30

Toro AU100321

SCREW, METRIC FLANGE w/BODY - M8 x 50

$

$

Not available

31

Toro AU100348

SCREW-HHF

$4.99

$

In Stock, Qty 7

0

32

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

34

Toro AU107940

MOTOR - Hydraulic

$2073.99

$

Usually ships in 3-6 days

0

35

Toro AU107970

PIN - Cylinder

$

$

Currently unavailable

36

Toro AU108108

SPACER - Pin

$

$

Currently unavailable

37

Toro AU108113

PLATE - Motor Mount

$

$

Currently unavailable

38

Toro AU109137

VALVE - Check

$

$

Not available

39

Toro AU109191

PLATE - Control Valve

$

$

Currently unavailable

40

Toro AU109194

HOSE ASSEMBLY - Hydraulic

$

$

Not available

41

Toro AU109214

HOSE ASSEMBLY - Hydraulic

$

$

Currently unavailable

42

Toro AU109215

HOSE ASSEMBLY - Hydraulic

$116.99

$

Usually ships in 3-6 days

0

43

Toro AU109295

HOSE ASSEMBLY - Hydraulic

$

$

Currently unavailable

44

Toro AU109299

HOSE ASSEMBLY - Hydraulic

$164.99

$

Usually ships in 3-6 days

0

45

Toro AU110340

HOSE ASSEMBLY - Hydraulic

$

$

Not available

46

Toro AU113444

PLATE - Motor Cover

$

$

Currently unavailable

47

Toro AU114070

HOSE ASSEMBLY - Hydraulic

$

$

Not available

48

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

49

Toro AUH313981

PIN-RETAINER

$62.99

$

Usually ships in 3-6 days

0

50

Toro AUH347906

VALVE ASSEMBLY - Power Beyond

$56.99

$

Usually ships in 3-6 days

0

51

Toro AUH434557

PIN-CLEVIS

$127.99

$

Usually ships in 3-6 days

0

52

Toro AUH53959

SPACER-13 mm (1/2 inch) long

$

$

Not available

53

Toro AUH674455

CYLINDER ASSEMBLY - 76 (3) ID x 203 mm (8 inch) Stroke, Plow Lift
(Superseded to AU129434)

$1541.99

$

Usually ships in 3-6 days

0
