MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) ROCK SAW AXLE KIT ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

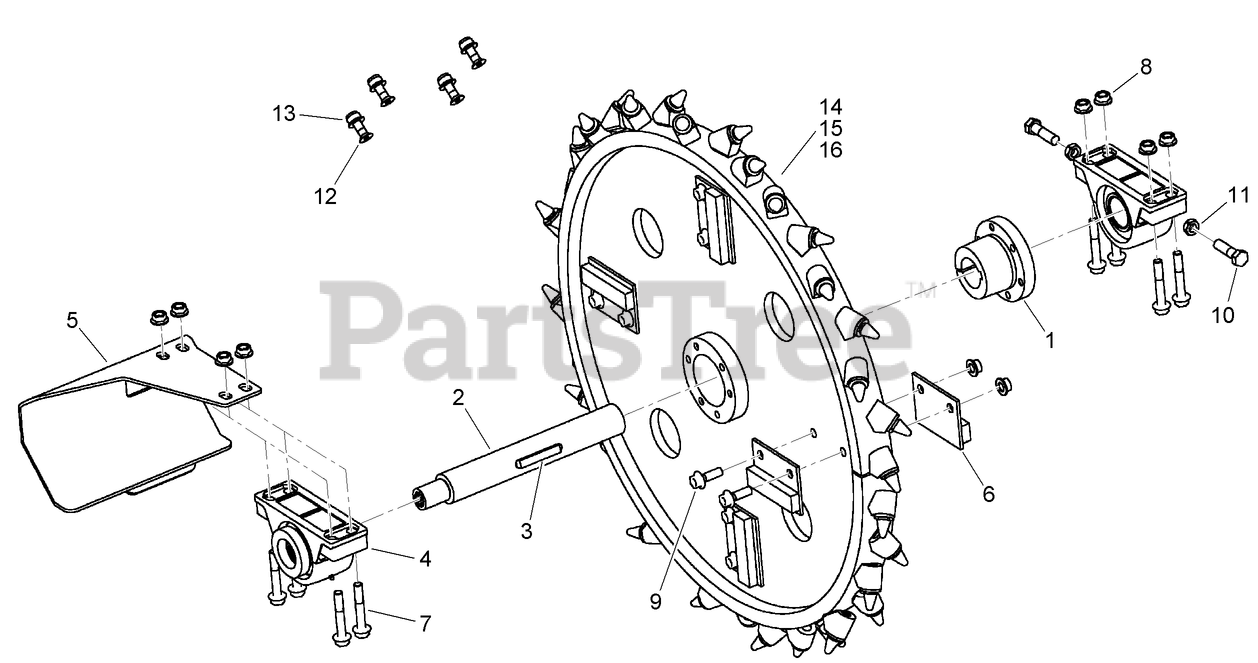

ROCK SAW AXLE KIT ASSEMBLY Parts Diagram

  • Title

Toro AU118287

ASSEMBLY - Rocksaw Axle

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU118283

BUSHING - QD

$

$

Not available

2

Toro AU118290

WELDMENT - Center Shaft
(Superseded to AU118290-03)

$4382.99

$

Usually ships in 3-6 days

0

3

Toro AU118291

KEY - Center Shaft

$94.99

$

Usually ships in 3-6 days

0

4

Toro AU109406

BEARING - SKF

$

$

Not available

5

Toro AU113446

PLATE - Motor Guard

$

$

Not available

6

Toro AU107959

WELDMENT - Breaker

$351.99

$

Usually ships in 3-6 days

0

7

Toro AU100367

SCREW, METRIC FLANGE w/BODY - M16 x 100

$29.99

$

Usually ships in 3-6 days

0

8

Toro AU100446

NUT, METRIC FLANGE PREVAILING - M16 Zinc

$4.49

$

Usually ships in 3-6 days

0

9

Toro AU100832

SCREW-FLANGE

$13.99

$

Usually ships in 3-6 days

0

10

Toro AU426-1244

BOLT - Hex Hd 0.75 x 2.75 GR8 ZND

$

$

Not available

11

Toro AU425-1412

NUT - Hex Jam 0.75 - 10 GR5 ZND

$4.99

$

Usually ships in 3-6 days

0

12

Toro AU107931

SCREW-HSFH

$15.99

$

Usually ships in 3-6 days

0

13

Toro AU100529

NUT-HHF

$6.99

$

Usually ships in 3-6 days

0

14

Toro AU108030

ASSEMBLY - Cutting Wheel, 17in x 3in

$

$

Currently unavailable

15

Toro AU113207

ASSEMBLY - Cutting Wheel, 18in x 4in

$

$

Currently unavailable

16

Toro AU113210

ASSEMBLY - Cutting Wheel, 18in x 6in

$

$

Currently unavailable
