MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) ROCK SAW ASSEMBLY (18 INCH DEPTH) Parts Diagram

Maxi Sneaker Series E Trencher

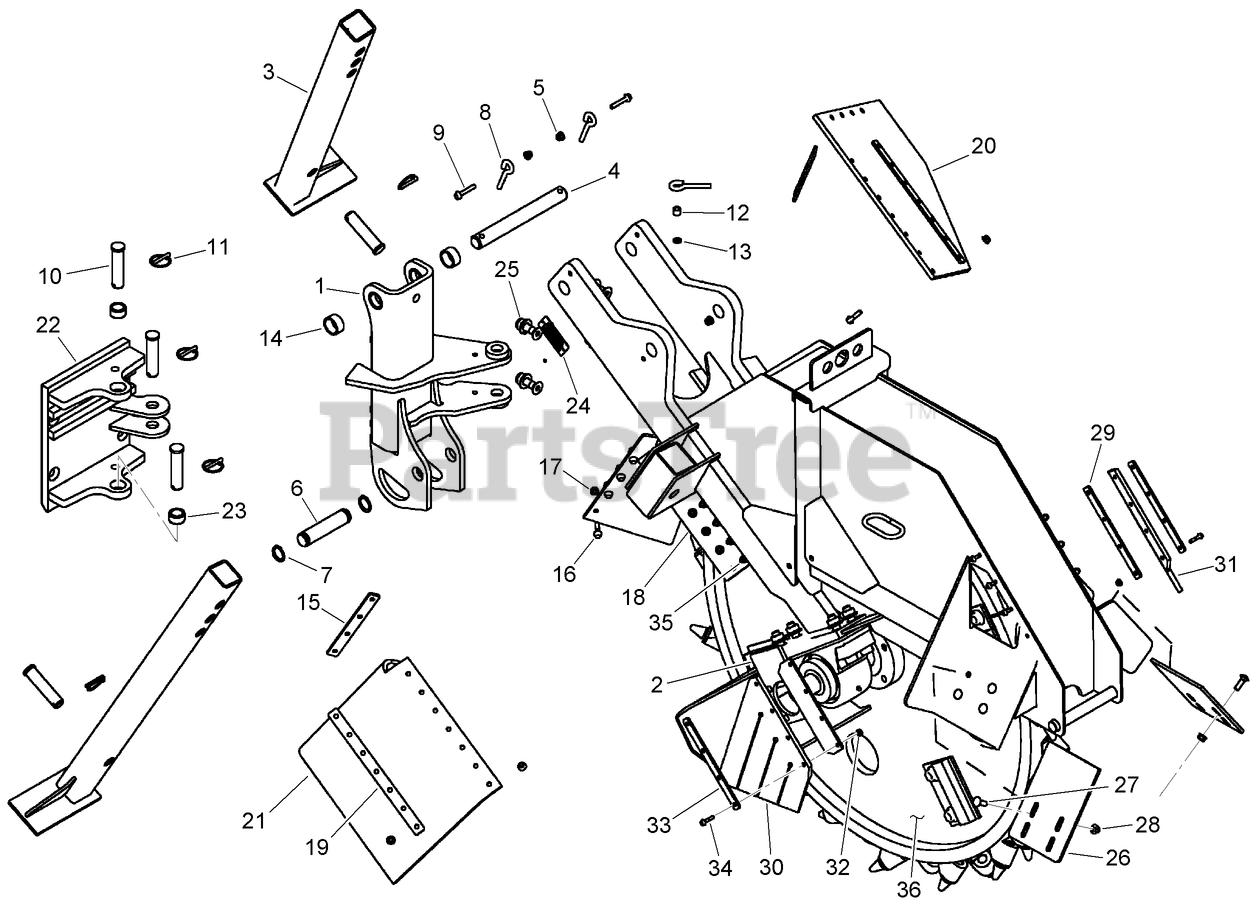

ROCK SAW ASSEMBLY (18 INCH DEPTH) Parts Diagram

  • Title

Toro AU107987

ROCK SAW - 18 inch Depth

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU108034

PIVOT - Plow

$

$

Currently unavailable

2

Toro AU113444

PLATE - Motor Cover

$

$

Currently unavailable

3

Toro AU108109

LEG - Support Stand

$

$

Currently unavailable

4

Toro AU107970

PIN - Cylinder

$

$

Currently unavailable

5

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH434557

PIN-CLEVIS

$132.99

$

Usually ships in 3-6 days

0

7

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

Usually ships in 3-6 days

0

8

Toro AUH313981

PIN-RETAINER

$64.99

$

Usually ships in 3-6 days

0

9

Toro AU100321

SCREW, METRIC FLANGE w/BODY - M8 x 50

$

$

Not available

10

Toro AU113192A1

PIN-PIVOT

$159.99

$

Usually ships in 3-6 days

0

11

Toro AUA30338

PIN-KLIK
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

12

Toro AUH53959

SPACER-13 mm (1/2 inch) long

$

$

Not available

13

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU108162

SPACER - Pin

$

$

Currently unavailable

15

Toro AU108941

PLATE - Front Skirt

$42.99

$

Usually ships in 3-6 days

0

16

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

17

Toro AU100443

NUT, METRIC HEX FLANGE - M8, Zinc

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU110333

BRACKET - Side Skirt

$

$

Currently unavailable

19

Toro AU108940

PLATE - Skirt Side

$43.99

$

Usually ships in 3-6 days

0

20

Toro AU108981

SKIRT - Front, LH

$

$

Currently unavailable

21

Toro AU108981

SKIRT - Front, LH

$

$

Currently unavailable

22

Toro AU107916

SLIDE-QUICK ATTACH

$2555.99

$

Usually ships in 3-6 days

0

23

Toro AUD34818

BUSHING-UPPER

$131.99

$

Usually ships in 3-6 days

0

24

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

25

Toro AU104193

TACK-FASTENER, STEEL

$2.49

$

Usually ships in 3-6 days

0

26

Toro AU109322

PLATE - Discharge Slide

$

$

Currently unavailable

27

Toro AU433-620

BOLT - Round Hd .375 x 1.25 GR5 ZND

$

$

Not available

28

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

29

Toro AU109388

PLATE - Discharge Angle

$58.99

$

Usually ships in 3-6 days

0

30

Toro AU108970

FLAP - Side Discharge

$

$

Currently unavailable

31

Toro AU108970

FLAP - Side Discharge

$

$

Currently unavailable

32

Toro AU100442

NUT, METRIC HEX FLANGE - M6, Zinc

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU108966

PLATE - Discharge Skirt

$43.99

$

Usually ships in 3-6 days

0

34

Toro AU100871

SCREW, METRIC FLANGE w/BODY - M6 x 30

$3.49

$

Usually ships in 3-6 days

0

35

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

36

Toro AU118287

ASSEMBLY - Rocksaw Axle

$

$

Currently unavailable
