MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW LIFT CYLINDER ASSEMBLY P40 PLOW Parts Diagram

Maxi Sneaker Series E Trencher

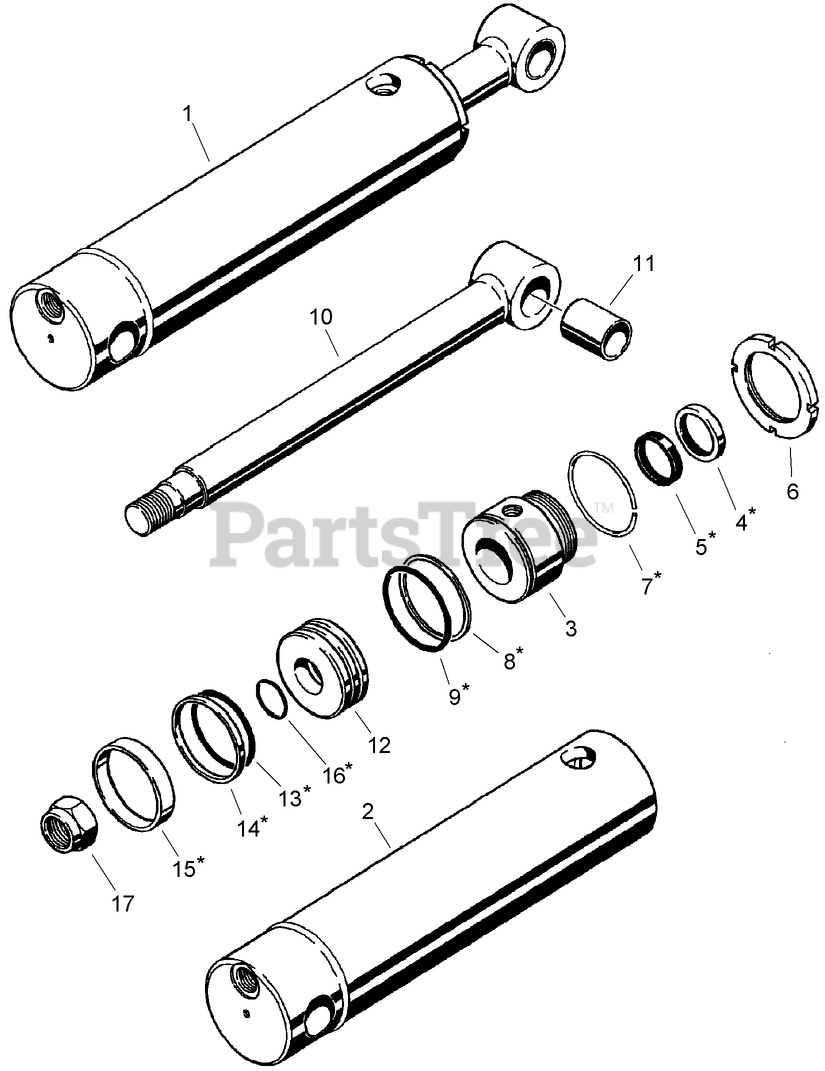

PLOW LIFT CYLINDER ASSEMBLY P40 PLOW Parts Diagram

  • Title

1

Toro AUH674455

CYLINDER ASSEMBLY - 76 (3) ID x 203 mm (8 inch) Stroke, Plow Lift
(Superseded to AU129434)

$1602.99

$

Usually ships in 3-6 days

0

2

Toro AUN13659

TUBE - Cylinder

$

$

Currently unavailable

3

Toro AUH120360

GLAND - Cylinder

$

$

Not available

4

Toro AUA41785

WIPER - Piston Rod

$

$

Not available

5

Toro AUH220558

SEAL - Rod

$

$

Not available

6

Toro AUH745794

NUT - Gland Locking

$

$

Not available

7

Toro AUH52761

RING - Retaining, Gland

$

$

Not available

8

Toro AUH745760

RING - Backup, Outer

$16.99

$

Usually ships in 3-6 days

0

9

Toro AU238-5232

O-RING - 2-3/4 ID x 1/8 inch Wide, Gland, Outer
(Superseded to AU511284)

$1.99

$

Usually ships in 3-6 days

0

10

Toro AUN13660

ROD - Piston
(Superseded to AU129434)

$1602.99

$

Usually ships in 3-6 days

0

11

Toro AUH220624

BUSHING - Piston Rod, Rod Eye

$159.99

$

Usually ships in 3-6 days

0

12

Toro AUN13661

PISTON - Cylinder

$

$

Currently unavailable

13

Toro AU238-6231

O-RING - 2-5/8 ID x 1/8 inch Wide, Piston Seal, Outer

$1.49

$

Usually ships in 3-6 days

0

14

Toro AUH120188

SEAL - Piston, Piston, Outer

$21.99

$

Usually ships in 3-6 days

0

15

Toro AUH252833

RING - Wear, Piston

$91.99

$

Usually ships in 3-6 days

0

16

Toro AU238-6222

O-RING - 1-1/2 ID x 1/8 inch Wide, Piston Seal, Inner

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU131-1141

NUT - Hex, Self-Locking, 1-1/8 - 12 inch
(Superseded to AU230-46318)

$28.99

$

Usually ships in 3-6 days

0

Toro AUN13662

KIT - Seal (includes all items with an asterisk)

Note: Not illustrated

$85.99

$

Usually ships in 3-6 days

0
