MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW HYDRAULIC CIRCUIT STEERING CONTROL VALVE TO PLOW CONTROL VALVE AND PLOW CONTROL VALVE TO PLOW MOTOR CONTROL VALVE P75 PLOW Parts Diagram

Maxi Sneaker Series E Trencher

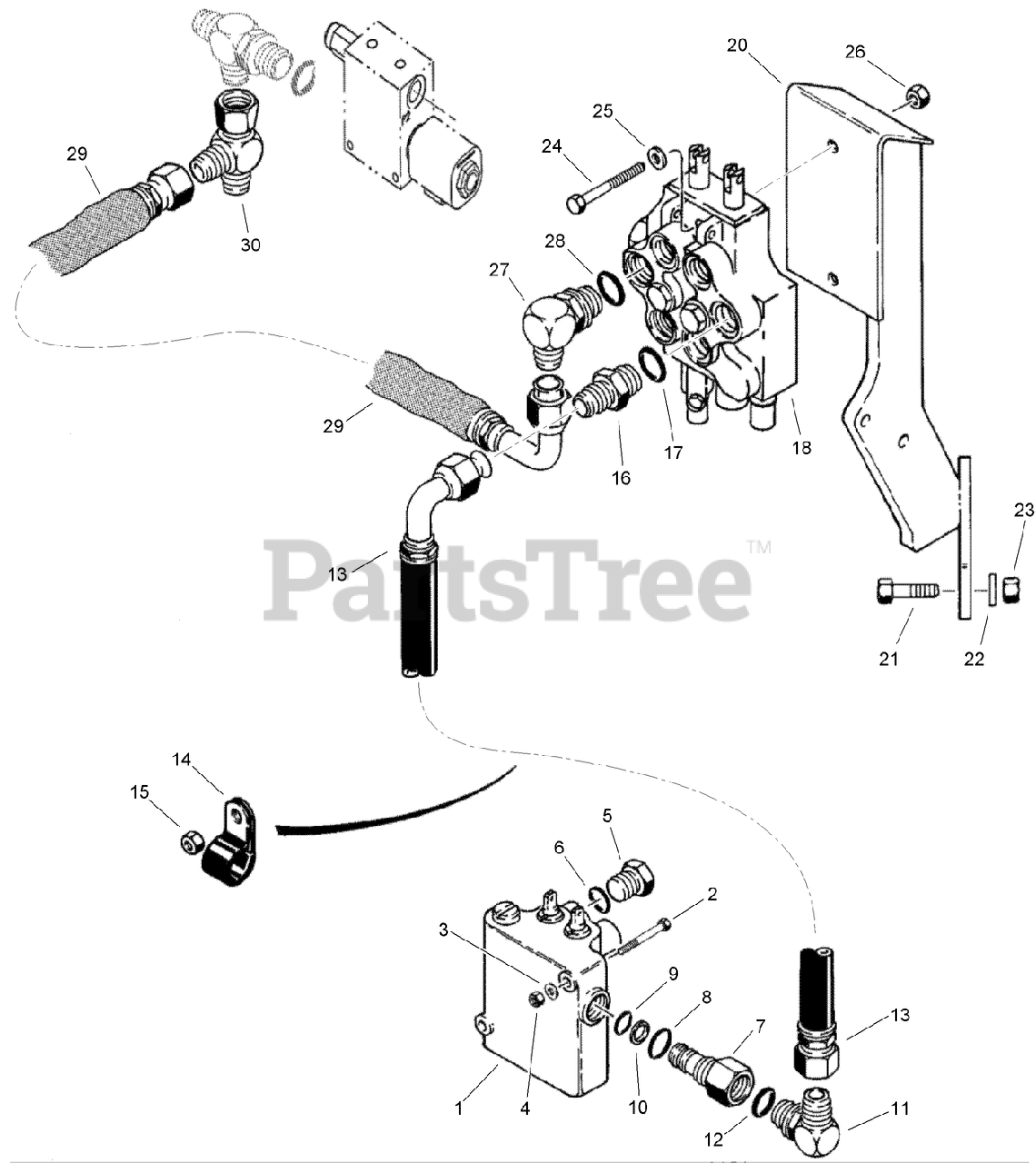

PLOW HYDRAULIC CIRCUIT STEERING CONTROL VALVE TO PLOW CONTROL VALVE AND PLOW CONTROL VALVE TO PLOW MOTOR CONTROL VALVE P75 PLOW Parts Diagram

  • Title

1

Toro AU407213A1

HYD STEERING VALVE ASM

$2427.99

$

Usually ships in 3-6 days

0

2

Toro AU426-432

BOLT-1/4-20 x 2

$0.99

$

Usually ships in 3-6 days

0

3

Toro AUH426767

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4114

NUT-Prev Trq 1/4 GRC PHC Direct

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5155

PLUG-Hex Hd, ORB 3/8

$3.99

$

Usually ships in 3-6 days

0

6

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

Toro AUH347906

VALVE ASSEMBLY - Power Beyond

Note: Not illustrated

$58.99

$

Usually ships in 3-6 days

0

7

BODY - Adapter

Note: Not serviced separately

$

$

Not available

8

Toro AU238-5114

O-RING
(Superseded to 60-5720)

$2.99

$

Usually ships in 3-6 days

0

9

Toro AU238-5014

O-RING
(Superseded to AU130282)

$0.99

$

Usually ships in 3-6 days

0

10

Toro AUD37070

RING - Backup

$

$

Currently unavailable

11

Toro AU218-5117

ELBOW - 90 Degree, 7/8-14 Flare x 3/4-16 inch Adj O-Ring Boss
(Superseded to AU86527)

$

$

Not available

12

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU178344A1

HOSE - 2135 mm (84 inch) Long, Steering and Attachment Lift Control Valve to Plow Control Valve

$

$

Currently unavailable

14

Toro AUD88052

CLAMP - P-Type, 1 inch ID (attaches to lockout valve mounting bolt)

$12.99

$

Usually ships in 3-6 days

0

15

Toro AU232-4115

NUT-HEX

$

$

Not available

16

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$7.99

$

Usually ships in 3-6 days

0

17

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 19

0

18

Toro AU220409A1

VALVE ASSEMBLY - Control, Plow Lift and Swing

$5108.99

$

Usually ships in 3-6 days

0

19

Toro AU127447A1

DECAL-plow control pattern, lift/swing

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

20

Toro AU177568A1

BRACKET - Mounting, Plow Control Valve

$1122.99

$

Usually ships in 3-6 days

0

21

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

23

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

24

Toro AU426-544

BOLT - Hex, 5/16 NC x 2-3/4 inch

$

$

Not available

25

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU232-4115

NUT-HEX

$

$

Not available

27

Toro AU218-5123

ELBOW-90 Adj 37FL 3/4 x 5/8 Tube

$11.99

$

Usually ships in 3-6 days

0

28

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 19

0

29

Toro AU183290A1

HOSE - 457 mm (18 inch) Long, Plow Lift / Swing Control Valve to Tee

$

$

Currently unavailable

30

Toro AU218-5221

FITTING-TEE

$58.99

$

Usually ships in 3-6 days

0
