MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW HYDRAULIC CIRCUIT PLOW LIFT AND SWING - P75 PLOW Parts Diagram

Maxi Sneaker Series E Trencher

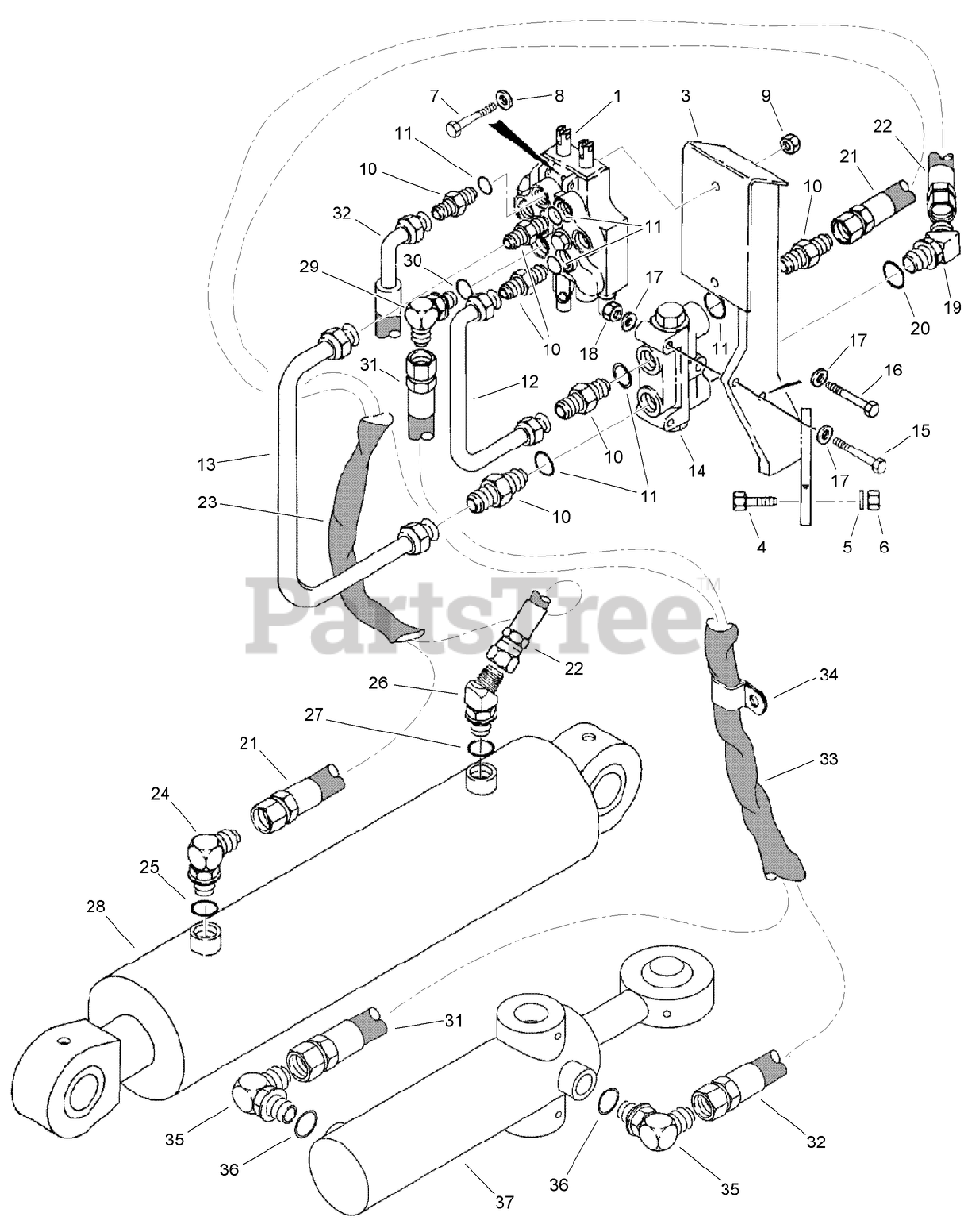

PLOW HYDRAULIC CIRCUIT PLOW LIFT AND SWING - P75 PLOW Parts Diagram

  • Title

1

Toro AU220409A1

VALVE ASSEMBLY - Control, Plow Lift and Swing

$5108.99

$

Usually ships in 3-6 days

0

2

Toro AU127447A1

DECAL-plow control pattern, lift/swing

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

3

Toro AU177568A1

BRACKET - Mounting, Plow Control Valve

$1122.99

$

Usually ships in 3-6 days

0

4

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

5

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

6

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU426-544

BOLT - Hex, 5/16 NC x 2-3/4 inch

$

$

Not available

8

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU232-4115

NUT-HEX

$

$

Not available

10

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

11

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU127537A1

TUBE - to Lockout Valve -A- Port

$79.99

$

Usually ships in 3-6 days

0

13

Toro AU127538A1

TUBE - to Lockout Valve -B- Port

$108.99

$

Usually ships in 3-6 days

0

14

Toro AUH672547

HYD LOCKOUT VALVE ASM

$1215.99

$

Usually ships in 3-6 days

0

15

Toro AU426-544

BOLT - Hex, 5/16 NC x 2-3/4 inch

$

$

Not available

16

Toro AU426-548

BOLT - Hex, 5/16 NC x 3 inch

$

$

Not available

17

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU232-4115

NUT-HEX

$

$

Not available

19

Toro AU218-5148

ELBOW-8MO x 6MJ 45 Deg Adapter

$10.99

$

Usually ships in 3-6 days

0

20

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU231082A1

HOSE - 685 mm (27 inch) Long, Lockout Valve -C- Port to Plow Lift Cylinder, Rod End

$110.99

$

Usually ships in 3-6 days

0

22

Toro AU231083A1

HOSE - 450 mm (17-3/4 inch) Long, Lockout Valve -D- Port to Plow Lift Cylinder, Closed End

$99.99

$

Usually ships in 3-6 days

0

23

Toro AU183444A1

SLEEVE - Nylon, 32 (1-1/4) ID x 250 mm (9-7/8 inch) Long, Lift Cylinder Hoses

$

$

Currently unavailable

24

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

25

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

26

Toro AU218-5135

ELBOW-45 Adj 37FL 3/8 Tube

$17.99

$

Usually ships in 3-6 days

0

27

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

28

Toro AU118918

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 290 mm (11-13/32 inch) Stroke, Plow Lift

$1757.99

$

Usually ships in 3-6 days

0

29

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

30

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

31

Toro AU231081A1

HOSE - 510 mm (20 inch) Long, Plow Control Valve to Plow Swing Cylinder, Closed End

$

$

Not available

32

Toro AU117279A1

HOSE-Hydraulic

$

$

Not available

33

Toro AU183444A1

SLEEVE - Nylon, 32 (1-1/4) ID x 250 mm (9-7/8 inch) Long, Lift Cylinder Hoses

$

$

Currently unavailable

34

Toro AUL71188

CLAMP - P-Type, 5/8 inch Diameter, Hose

$4.99

$

Usually ships in 3-6 days

0

35

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

36

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

37

Toro AU230679A1

CYLINDER ASSEMBLY - 51 (2) ID x 143 mm (5-5/8 inch) Stroke, Plow Swing

$1442.99

$

Usually ships in 3-6 days

0
