MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW GEARBOX ASSEMBLY P75 PLOW Parts Diagram

Maxi Sneaker Series E Trencher

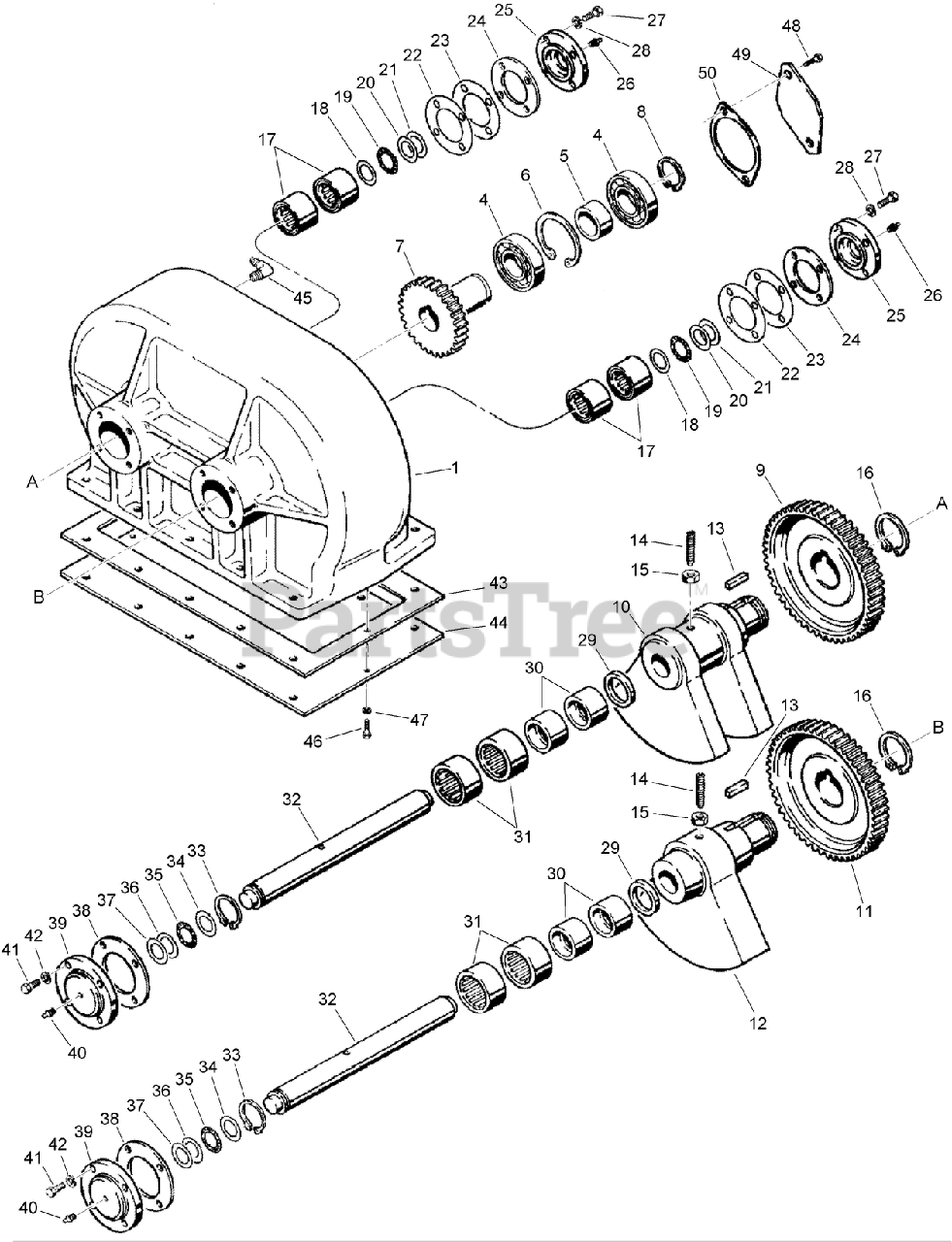

PLOW GEARBOX ASSEMBLY P75 PLOW Parts Diagram

  • Title

Toro AUH563619

BOX-SHAKER

Note: Not illustrated

$

$

Not available

1

Toro AUH205559

HOUSING-gearbox
(Superseded to AUH205559-03)

$9177.99

$

Usually ships in 3-6 days

0

4

Toro AUH753194

BEARING

$247.99

$

Usually ships in 3-6 days

0

5

Toro AUH189795

SPACER

$70.99

$

Usually ships in 3-6 days

0

6

Toro AU100-21315

RING-internal retaining, No. 315, bearing and shaft retaining
(Superseded to 32151-76)

$7.49

$

Usually ships in 3-6 days

0

7

Toro AU86993944

GEAR-DRIVE, PLOW

$1760.99

$

Usually ships in 3-6 days

0

8

Toro AU100-16156

RING-snap
(Superseded to 32151-102)

$6.99

$

Usually ships in 3-6 days

0

9

Toro AUH189753

GEAR

$1929.99

$

Usually ships in 3-6 days

0

10

Toro AUH189514

WEIGHT-COUNTER

$1472.99

$

Usually ships in 3-6 days

0

11

Toro AUH189746

GEAR

$1979.99

$

Usually ships in 3-6 days

0

12

Toro AUH189506

WEIGHT-COUNTER
(Superseded to AUH189506-03)

$1207.99

$

Usually ships in 3-6 days

0

13

Toro AUH380030

KEY-SQUARE

$22.99

$

Usually ships in 3-6 days

0

14

Toro AU83-65032

SCREW-SET, HSH

$12.99

$

Usually ships in 3-6 days

0

15

Toro AU425-148

NUT-JAM

$2.99

$

Usually ships in 3-6 days

0

16

Toro AU103-11225

RING-RETAINING

$4.99

$

Usually ships in 3-6 days

0

17

Toro AUH753145

BEARING

$103.99

$

Usually ships in 3-6 days

0

18

Toro AUG46081

WASHER-thrust, 0.81 mm (0.032 inch) thick, shaft bearing

$3.99

$

Usually ships in 3-6 days

0

19

Toro AUG13609

BEARING

$11.99

$

Usually ships in 3-6 days

0

20

Toro AUT38017

WASHER-THRUST

$11.99

$

Usually ships in 3-6 days

0

21

Toro AUG46081

WASHER-thrust, 0.81 mm (0.032 inch) thick, shaft bearing

$3.99

$

Usually ships in 3-6 days

0

22

Toro AUH189878

GASKET-SHIM

$22.99

$

Usually ships in 3-6 days

0

23

Toro AUH189886

GASKET-SHIM

$22.99

$

Usually ships in 3-6 days

0

24

Toro AUH189860

GASKET

$5.49

$

Usually ships in 3-6 days

0

25

Toro AU135587A1

CAP-BEARING
(Superseded to AU135587A1-03)

$380.99

$

Usually ships in 3-6 days

0

26

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

27

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, Qty 20+

0

28

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

29

Toro AUH189803

SPACER

$

$

Not available

30

Toro AUH753160

BEARING

$77.99

$

Usually ships in 3-6 days

0

31

Toro AU111980R91

BEARING - Counterweight Shaft, Rear
(Superseded to AUH753152)

$151.99

$

Usually ships in 3-6 days

0

32

Toro AUH189761

SHAFT-BEARING

$1208.99

$

Usually ships in 3-6 days

0

33

Toro AU100-11150

RING-external retaining, No. 150, shaft
(Superseded to AUD25279)

$22.99

$

Usually ships in 3-6 days

0

34

Toro AUG46081

WASHER-thrust, 0.81 mm (0.032 inch) thick, shaft bearing

$3.99

$

Usually ships in 3-6 days

0

35

Toro AUG13609

BEARING

$11.99

$

Usually ships in 3-6 days

0

36

Toro AUT38017

WASHER-THRUST

$11.99

$

Usually ships in 3-6 days

0

37

Toro AUG46081

WASHER-thrust, 0.81 mm (0.032 inch) thick, shaft bearing

$3.99

$

Usually ships in 3-6 days

0

38

Toro AUH189852

GASKET

$8.49

$

Usually ships in 3-6 days

0

39

Toro AUH189811

CAP-BEARING

$

$

Not available

40

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

41

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, Qty 20+

0

42

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

43

Toro AUH189910

GASKET-GEARCASE

$20.99

$

Usually ships in 3-6 days

0

44

Toro AUH202176

PLATE-COVER

$198.99

$

Usually ships in 3-6 days

0

45

Toro AU222-762

FITTING-ELBOW, 90

$7.99

$

Usually ships in 3-6 days

0

46

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

47

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

48

Toro AU426-816

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

49

Toro AUH137844

PLATE-discard to mount plow motor

$

$

Not available

50

Toro AUH44727

GASKET-124 x 146 x 0.8 mm, motor

$6.49

$

Usually ships in 3-6 days

0
