MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW ATTACHMENT ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

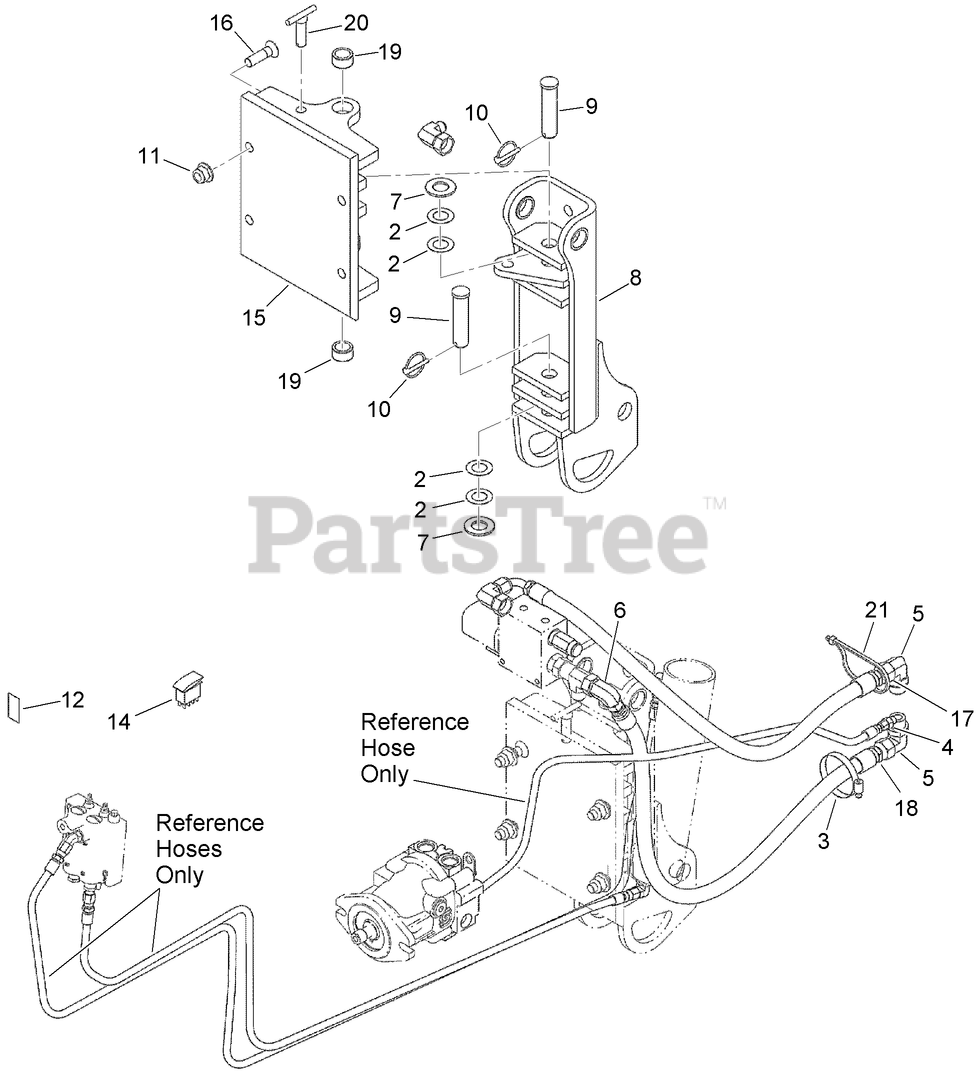

PLOW ATTACHMENT ASSEMBLY Parts Diagram

  • Title

Toro AU198781A1

ASSEMBLY - Plow Attachment

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU7-52550

INSTRUCTIONS - P40 Plow

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU195-81015

WASHER-FLAT

$10.99

$

Usually ships in 3-6 days

0

3

Toro AU214-1456

CLAMP-Hose #56

$7.49

$

Usually ships in 3-6 days

0

4

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5108

ELBOW-90 Adj 37FL 3/4 Tube

$36.99

$

Usually ships in 3-6 days

0

6

Toro AU218-5377

FITTING-ELBOW, 90

$51.99

$

Usually ships in 3-6 days

0

7

Toro AU495-11106

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

8

Toro AU112368A1

PIVOT - Plow
(Superseded to 127-1044)

$1471.99

$

Usually ships in 3-6 days

0

9

Toro AU113192A1

PIN-PIVOT

$167.99

$

Usually ships in 3-6 days

0

10

Toro AUA30338

PIN-KLIK
(Superseded to 107-3039)

$10.99

$

In Stock, only 2 left!

0

11

Toro AU100529

NUT-HHF

$7.49

$

Usually ships in 3-6 days

0

12

Toro AU106750

DECAL - Plow Switch

$

$

Not available

13

Toro AU107045

HARNESS - Plow

Note: Not illustrated

$102.99

$

Usually ships in 3-6 days

0

14

Toro AU107046

SWITCH - SPST

$

$

Not available

Toro AUTX444305

Switch

Note: Not illustrated

$35.99

$

Usually ships in 3-6 days

0

Toro AUTX444361

Actuator

Note: Not illustrated

$7.49

$

Usually ships in 3-6 days

0

15

Toro AU107916

SLIDE-QUICK ATTACH

$2683.99

$

Usually ships in 3-6 days

0

16

Toro AU107931

SCREW-HSFH

$16.99

$

Usually ships in 3-6 days

0

17

Toro AU109217

HOSE ASSEMBLY - Hydraulic

$269.99

$

Usually ships in 3-6 days

0

18

Toro AU109253

HOSE ASSEMBLY - Hydraulic

$194.99

$

Usually ships in 3-6 days

0

19

Toro AUD34818

BUSHING-UPPER

$138.99

$

Usually ships in 3-6 days

0

20

Toro AUH582585

PIN - Pivot Lock

$139.99

$

Usually ships in 3-6 days

0

21

Toro AUL18331

STRAP-TIE

$2.49

$

Usually ships in 3-6 days

0
