MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PARKING BRAKE ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

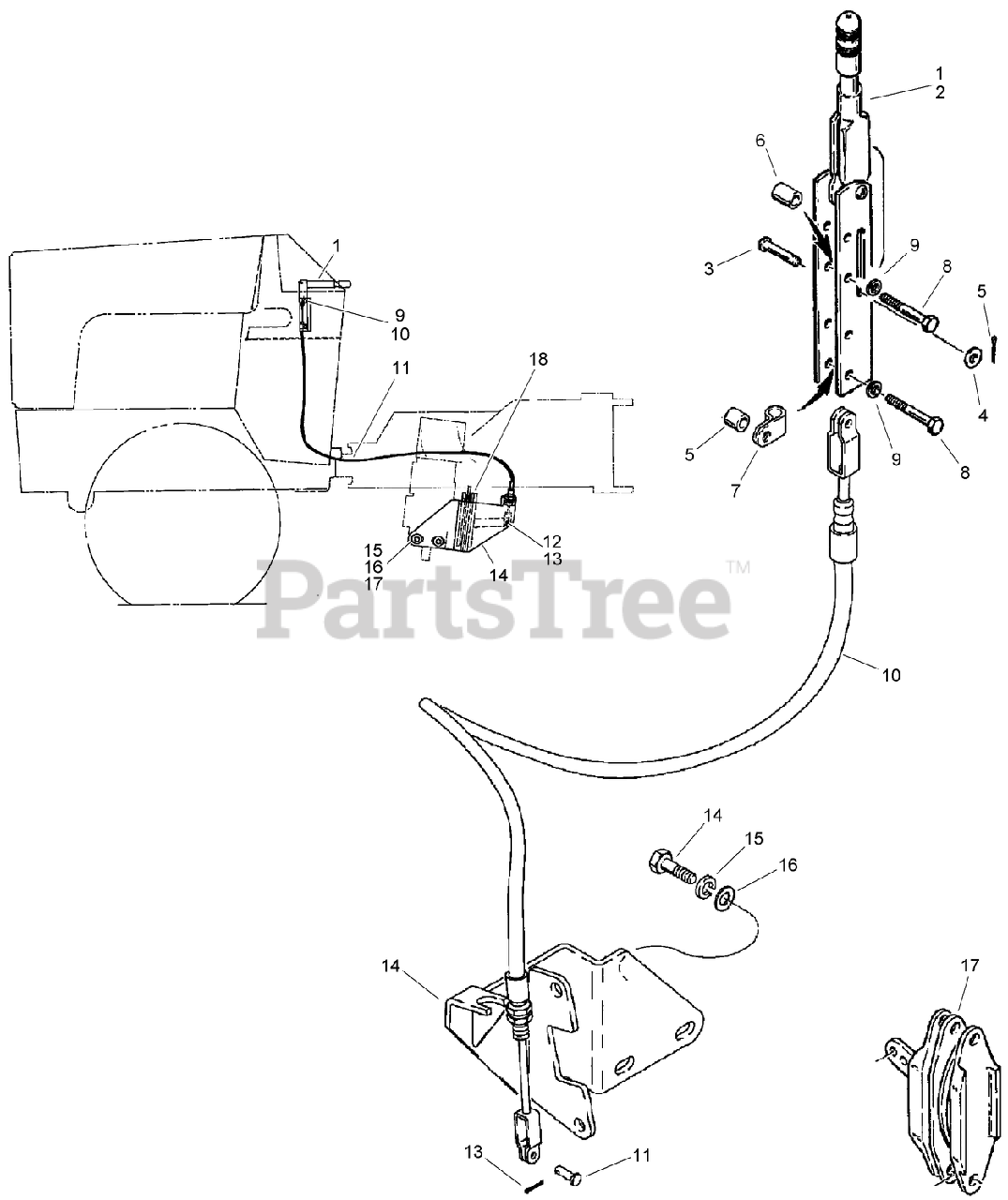

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

Toro AU111076A1

BRAKE SYSTEM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH506881

LEVER-BRAKE

$116.99

$

Usually ships in 3-6 days

0

2

LEVER - Parking Brake

Note: Not serviced separately

$

$

Not available

3

Toro AUD42458

PIN - Clevis, Special

$

$

Not available

4

Toro AU495-21038

WASHER - Flat, 3/8 x 7/8 x 3/32 inch

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU432-612

PIN - Cotter .094 x .75 in ZN

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH53959

SPACER-13 mm (1/2 inch) long

$

$

Not available

7

Toro AUH53942

SPACER

$7.99

$

Usually ships in 3-6 days

0

8

Toro AUD40684

CLAMP - Parking Brake Cable

$26.99

$

Usually ships in 3-6 days

0

9

Toro AU426-524

BOLT-Hex, 5/16 NC x 1-1/2 inch
(Superseded to 5-1470)

$0.99

$

In Stock, Qty 10

0

10

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU119124A2

CABLE-BRAKE

$287.99

$

Usually ships in 3-6 days

0

12

Toro AUH169318

PIN
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

13

Toro AU432-412

PIN-Cotter 0.062 x 0.75 in ZN
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

14

Toro AU119004A1

BRACKET - Mounting, Brake Caliper

$345.99

$

Usually ships in 3-6 days

0

15

Toro AU426-820

BOLT-Hex Hd 1/2 x 1-1/4 GR5 ZND

$1.49

$

Usually ships in 3-6 days

0

16

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, Qty 20+

0

17

Toro AU495-21056

WASHER - .562 x 1.375 x .109 in CST ZND

$

$

Not available

18

Toro AUH673926

CALIPER ASM

$452.99

$

Usually ships in 3-6 days

0
