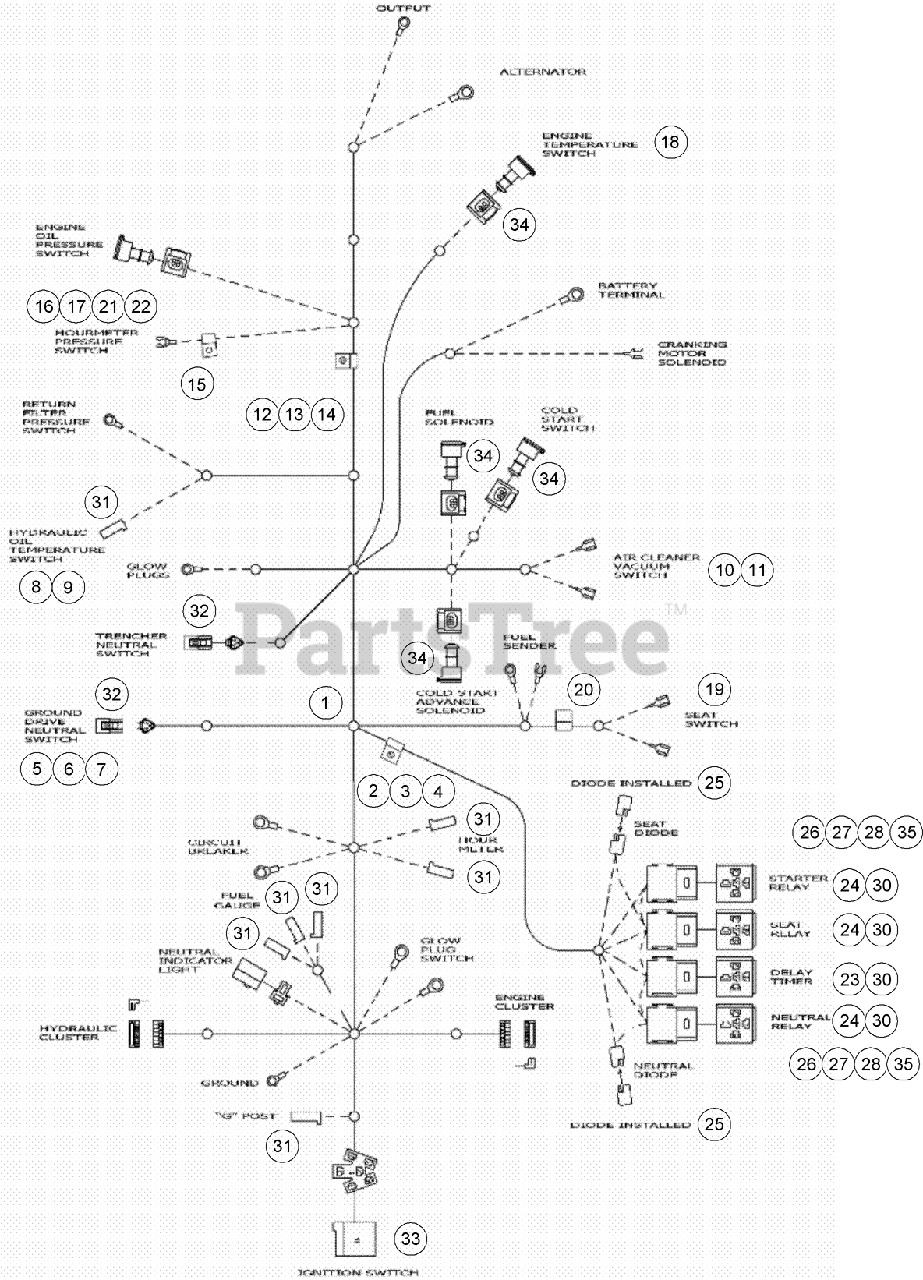

MAIN WIRING HARNESS AND CONNECTION ASSEMBLY Parts Diagram

  • Title

1

Toro AU110719

HARNESS - Main

$1076.99

$

Usually ships in 3-6 days

0

2

Toro AU515-23159

CLAMP

$1.49

$

Usually ships in 3-6 days

0

3

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU86992539

SWITCH-NEUTRAL START

$232.99

$

Usually ships in 3-6 days

0

6

Toro AU102475

BOLT-U, SWITCH MTG (H435814)

$12.99

$

Usually ships in 3-6 days

0

7

Toro AU193-1003

NUT - KEPS Ext T Wshr #6 - 32 UNC ZP

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU221-607

REDUCER - Pipe, 1-1/14 male x 1/2 inch Female

$26.99

$

Usually ships in 3-6 days

0

9

Toro AUH81935

SENDER - Temperature, Reservoir Oil Warning

$

$

Not available

10

Toro AU1983233C1

SWITCH - Restriction, Air Cleaner
(Superseded to AU292950A1)

$54.99

$

Usually ships in 3-6 days

0

11

Toro AU221-1335

COUPLING - Pipe, 1/8 inch

$7.49

$

Usually ships in 3-6 days

0

12

Toro AU515-23159

CLAMP

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU614-8014

BOLT - Thd to Hd, M8 x 14 CL8.8 PHC

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU892-11008

WASHER - Spring Lock Reg 8mm ZND.

$

$

Not available

15

Toro AU515-23127

CLAMP - Insul, 12.7mm 3/8 in Bolt ZND

$1.99

$

Usually ships in 3-6 days

0

16

Toro AU892-11006

WASHER - Lock, 6 mm

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU825-1406

NUT - Hex, 6 mm - 1

$0.99

$

Usually ships in 3-6 days

0

18

SWITCH-Water Temperature

Note: Not serviced separately

$

$

Not available

19

Toro AU175875A1

SWITCH - Seat Interlock

$49.99

$

Usually ships in 3-6 days

0

20

Toro AUH439303

CLIP - Wire Harness

$5.49

$

Usually ships in 3-6 days

0

21

Toro AU194291A1

TEE - Special

$217.99

$

Usually ships in 3-6 days

0

22

Toro AUH139634

SWITCH - Pressure, NO, Screw Terminal, Internal Ground

$92.99

$

Usually ships in 3-6 days

0

23

Toro AU224787A1

RELAY - Sealed Time Delay
(Superseded to 127-8418)

$266.99

$

Usually ships in 3-6 days

0

24

Toro AUD128310

RELAY-Power

$27.99

$

Usually ships in 3-6 days

0

25

Toro AUL71879

DIODE - Isolation

$21.99

$

Usually ships in 3-6 days

0

26

Toro AU459-11012

SCREW - Machine, 10 - 32 x 3/4 Slotted Pan Head

$

$

Not available

27

Toro AU495-31020

WASHER - 0.203 x 0.469 x 0.049 in CST ZND
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

28

Toro AU231-24409

NUT - Prev Trq #10 GR8 ZND Insert

$

$

Currently unavailable

30

Toro AU245731C1

CONNECTOR - Relay

$20.99

$

Usually ships in 3-6 days

0

31

Toro AU223-154

CONNECTOR - Electrical

$

$

Not available

32

Toro AU225295C1

CONNECTOR - Electrical

$

$

Currently unavailable

33

Toro AU225253C1

CONNECTOR - Electrical

$1.99

$

Usually ships in 3-6 days

0

34

CONNECTOR - Junior Power Timer

Note: Not serviced separately

$

$

Not available

35

Toro AU87420999

INSERT - 10-32 Short Well Nut

$

$

Not available
