MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) HYDRA-BORER START-UP KIT Parts Diagram

Maxi Sneaker Series E Trencher

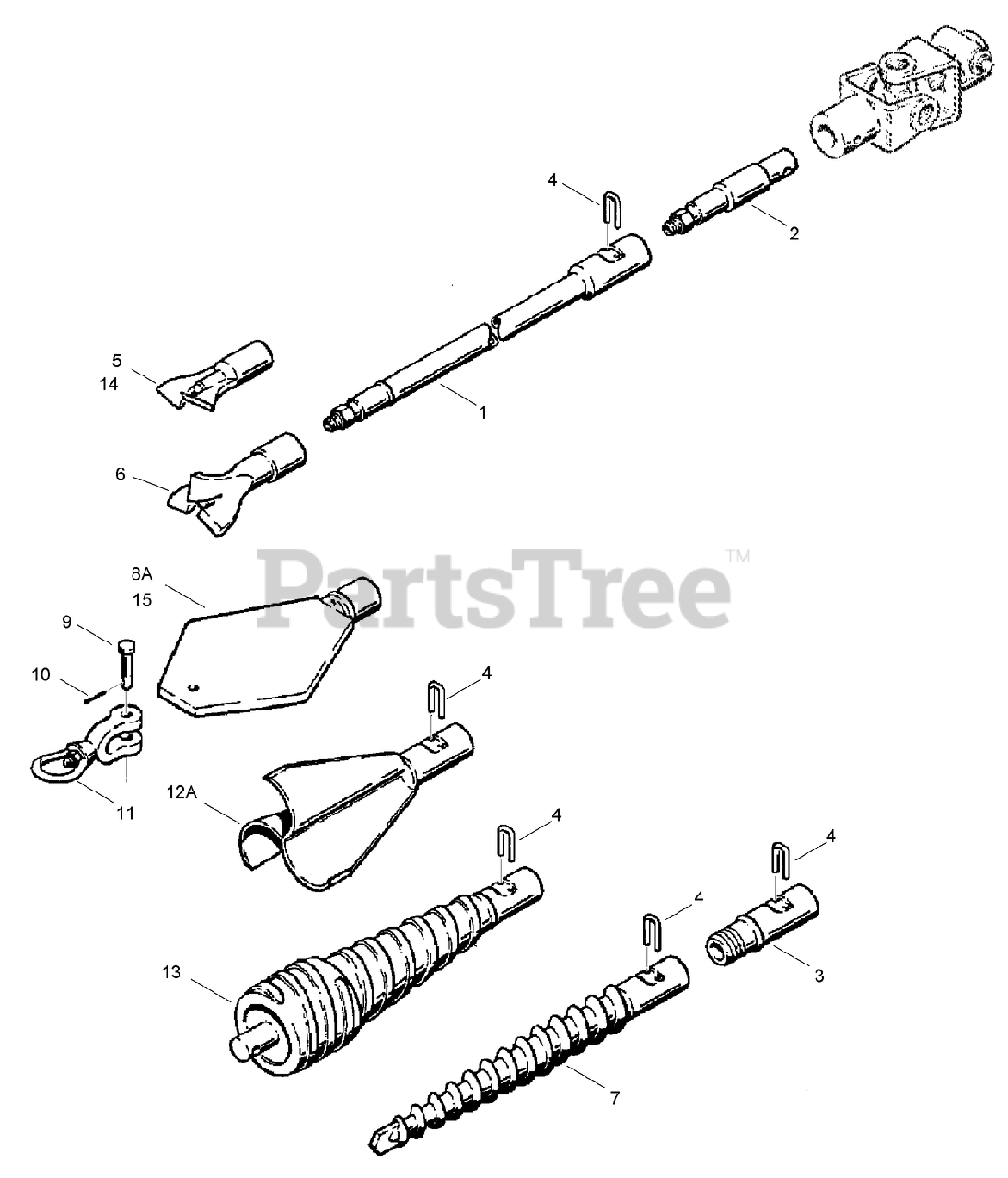

HYDRA-BORER START-UP KIT Parts Diagram

  • Title

Toro AU108128

KIT - Hydra-Borer Start-Up

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH672562

STEM-Drill, Quick Lock, 10 ft Drill

$626.99

$

Usually ships in 3-6 days

0

2

Toro AUH646901

ADAPTER-Quick Lock Male

$251.99

$

Usually ships in 3-6 days

0

3

Toro AUH522375

COUPLER-1 in NPT to Female

$469.99

$

Usually ships in 3-6 days

0

4

Toro AUH94961

CLIP-Retainer

$11.99

$

Usually ships in 3-6 days

0

5

Toro AUH518837

BIT-Drill, Two Blade, 2 in Blade Dia x 1 in Female PT

$282.99

$

Usually ships in 3-6 days

0

6

Toro AUH519249

BIT-Drill, Three Blade, 3 in Blade Dia x 1 in Female PT

$

$

Not available

7

Toro AUM505105

MOLE-2 in Clip Type

$391.99

$

Usually ships in 3-6 days

0

8A

Toro AUH519504

REAMER-Fish Plate, 4 inch

Note: Optional Equipment

$

$

Not available

8B

Toro AUH519652

REAMER-Fish Plate, 6 inch

Note: Not illustrated

$673.99

$

Usually ships in 3-6 days

0

8C

Toro AUH528497

REAMER-Fish Plate, 8 inch

Note: Optional Equipment

$

$

Currently unavailable

9

Toro AUH32284

PIN-Clevis, 3/8 x 1-3/4 inch long, Special

Note: Optional Equipment

$8.49

$

Usually ships in 3-6 days

0

10

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

Note: Optional Equipment

$1.49

$

In Stock, Qty 5

0

11

Toro AUH88195

SWIVEL-Reamer

Note: Optional Equipment

$

$

Not available

12A

Toro AUH522441

BACKREAMER-Quick Lock Female, 8 inch

Note: Optional Equipment

$3782.99

$

Usually ships in 3-6 days

0

12B

Toro AUH522466

BACKREAMER-Quick Lock Female, 12 inch

Note: Not illustrated

$

$

Currently unavailable

13

Toro AUH522409

REAMER-Compaction, Quick Lock Female, 3-3/4 inch
(Superseded to AUM505125)

Note: Optional Equipment

$907.99

$

Usually ships in 3-6 days

0

14

Toro AUH518910

BIT-Drill, Two Blace, 3 in Bade Dia x 1 in Female PT
(Superseded to AUH519249)

Note: Optional Equipment

$

$

Not available

15

Toro AUH672563

STEM-Drill, Quick Lock, 5 ft Drill

Note: Optional Equipment

$597.99

$

Usually ships in 3-6 days

0
