MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) HYDRA-BORER MOTOR ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

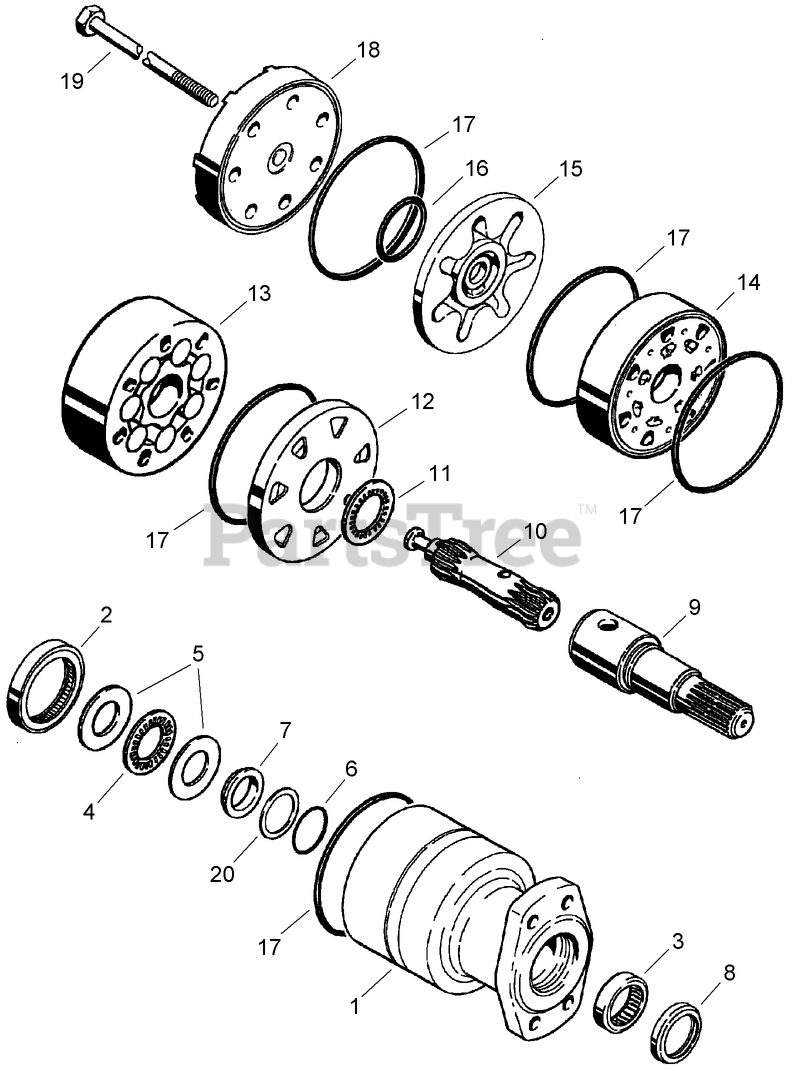

HYDRA-BORER MOTOR ASSEMBLY Parts Diagram

  • Title

Toro AUH673156

HYD MOTOR ASM

Note: Not illustrated

$2035.99

$

Usually ships in 3-6 days

0

Toro AUH673214

HOUSING ASSEMBLY - Motor

Note: Not illustrated

$

$

Not available

1

HOUSING - Motor

Note: Not serviced separately

$

$

Not available

2

Toro AUN14361

BEARING - Needle, Large

$

$

Currently unavailable

3

Toro AUN14360

BEARING - Needle, Small

$82.99

$

Usually ships in 3-6 days

0

4

Toro AUN14359

BEARING - Thrust, Shaft

$

$

Currently unavailable

5

Toro AUN14358

WASHER - Thrust, Bearing

$

$

Currently unavailable

6

Toro AUN14362

RING - Backup, Seal, Housing

$48.99

$

Usually ships in 3-6 days

0

7

Toro AUN14363

SEAL - Housing

$

$

Not available

8

Toro AUN14357

SEAL - Shaft, Outer

$

$

Currently unavailable

9

Toro AUN14443

SHAFT - Coupling

$

$

Not available

10

Toro AUN14444

LINK - Drive

$

$

Currently unavailable

11

Toro AUN14346

BEARING - Thrust, Link

$

$

Currently unavailable

12

Toro AUN14347

PLATE - Wear

$

$

Not available

13

Toro AUN14446

ROTOR - Drive Motor

$

$

Currently unavailable

14

Toro AUN14447

MANIFOLD - Plate

$

$

Currently unavailable

15

Toro AUN14350

COMMUTATOR - Includes Center Ring

$

$

Currently unavailable

16

Toro AUN6709

RING - Seal, Small

$

$

Not available

17

Toro AUN14354

RING - Seal, Large

$11.99

$

Usually ships in 3-6 days

0

18

Toro AUN14449

COVER - End

$

$

Currently unavailable

19

Toro AUN14448

BOLT - Hex, Special

$

$

Currently unavailable

20

Toro AUH435695

WASHER - Drive Motor, Flat, 1-13/32 x 1-21/32 x 1/64

$

$

Currently unavailable
