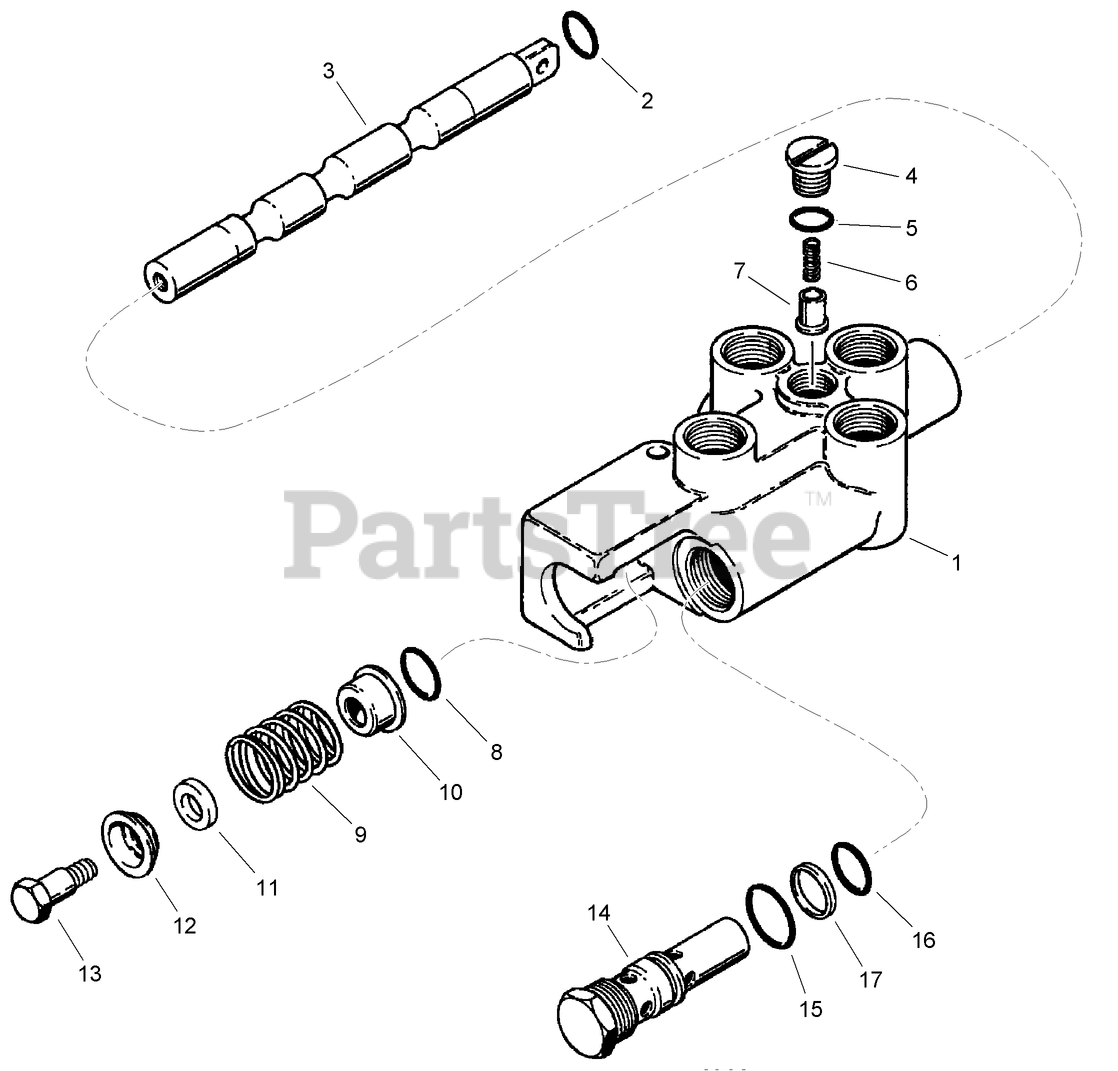

HYDRA-BORER CONTROL VALVE ASSEMBLY Parts Diagram

  • Title

Toro AU107110A1

SINGLE SPOOL VALVE ASM

Note: Not illustrated

$

$

Not available

1

BODY - Control Valve

Note: Not serviced separately

$

$

Not available

2

Toro AU114313A1

O-RING - Spool

$3.99

$

Usually ships in 3-6 days

0

3

Toro AUT55119

SPOOL - Valve

$

$

Currently unavailable

Toro AUH47506

PLUG ASSEMBLY - Load Check Valve

Note: Not illustrated

$

$

Not available

4

PLUG - Load Check

Note: Not serviced separately

$

$

Not available

5

Toro AU238-7112

O-RING - 1/2 ID x 3/32 inch Wide
(Superseded to AU238-5112)

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUFH730374

SPRING - Load Check Valve

$

$

Currently unavailable

7

Toro AUFH730366

POPPET - Load Check Valve

$46.99

$

Usually ships in 3-6 days

0

8

Toro AU114314A1

O-RING - Plug End

$4.99

$

Usually ships in 3-6 days

0

9

Toro AUH52928

SPRING - Centering, Spool

$10.99

$

Usually ships in 3-6 days

0

10

Toro AUH52902

RETAINER - Spring, Inner

$

$

Not available

11

Toro AUH746164

WASHER - Special, 4 mm (5/32 inch) Thick

$2.99

$

Usually ships in 3-6 days

0

12

Toro AUF59116

SEAT - Spring, Outer

$10.99

$

Usually ships in 3-6 days

0

13

Toro AUH428292

BOLT - Hex, Special, Special, Spool

$

$

Not available

Toro AUN8813

VALVE ASSEMBLY - Relief, Control Valve

Note: Not illustrated

$

$

Not available

14

VALVE - Relief, Control Valve

Note: Not serviced separately

$

$

Not available

15

Toro AU238-5116

O-RING-3/4 ID x 3/32 inch wide

$

$

Not available

16

Toro AU238-5114

O-RING
(Superseded to 60-5720)

$2.99

$

Usually ships in 3-6 days

0

17

Toro AUG32626

RING - Backup, Plug O-Ring

$

$

Not available
