MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) HYDRA-BORER ATTACHMENT UNIVERSAL JOINT ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

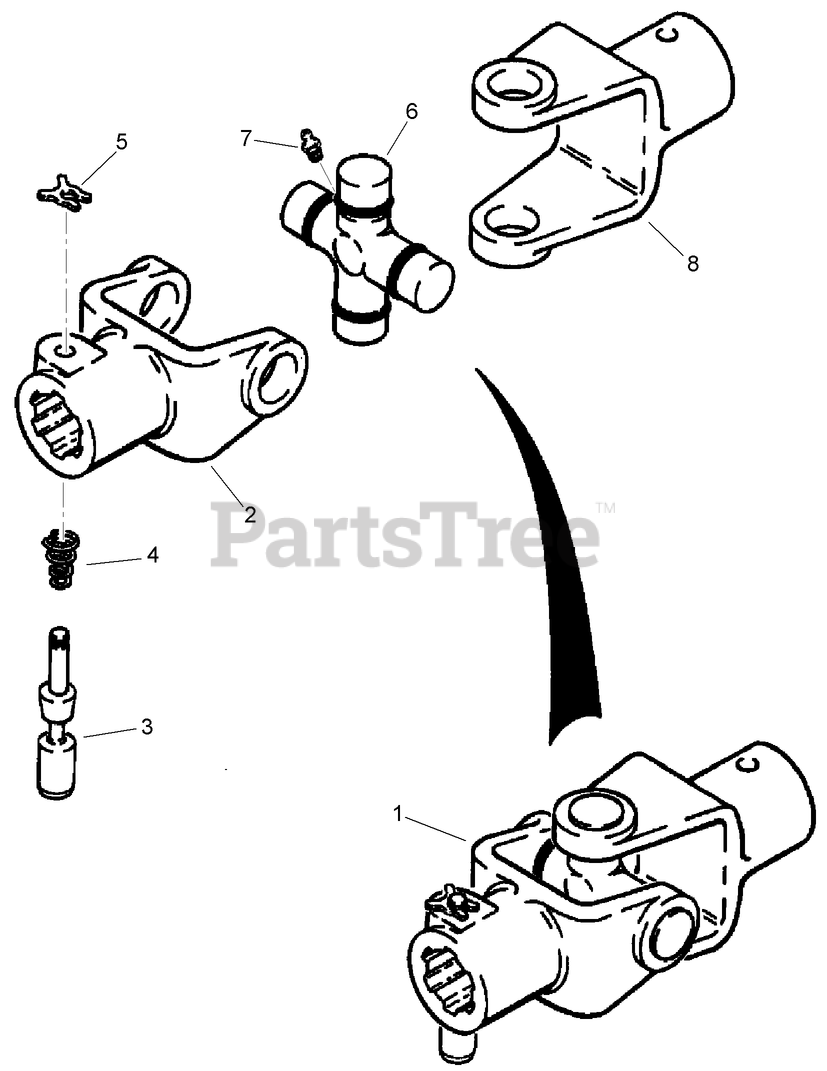

HYDRA-BORER ATTACHMENT UNIVERSAL JOINT ASSEMBLY Parts Diagram

  • Title

1

Toro AUH511113

U-JOINT ASM
(Superseded to AUH511113-03)

$372.99

$

Usually ships in 3-6 days

0

Toro AUH71142

YOKE ASM-splined, mounts to gearbox

Note: Not illustrated

$270.99

$

Usually ships in 3-6 days

0

2

YOKE - Splined

Note: Not serviced separately

$

$

Not available

Toro AUH658179

KIT-universal joint retaining

Note: Not illustrated

$104.99

$

Usually ships in 3-6 days

0

Toro AU182951A1

KIT - Universal Joint Retaining, with 2-1/4 inch Long Pin, if used

Note: Not illustrated

$48.99

$

Usually ships in 3-6 days

0

3

PIN - Retainer

Note: Not serviced separately

$

$

Not available

4

WASHER - Special

Note: Not serviced separately

$

$

Not available

5

RING - Snap, Pin Retaining

Note: Not serviced separately

$

$

Not available

Toro AUH71167

CROSS ASM-universal joint

Note: Not illustrated

$91.99

$

Usually ships in 3-6 days

0

6

CROSS - Universal Joint

Note: Not serviced separately

$

$

Not available

7

Toro AU219-11

FITTING-grease, straight, 1/4-28 taper x 15/16 inch

$4.49

$

Usually ships in 3-6 days

0

8

Toro AUH71159

YOKE-boring attachments

$254.99

$

Usually ships in 3-6 days

0
