MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) GROUND DRIVE MOTOR ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

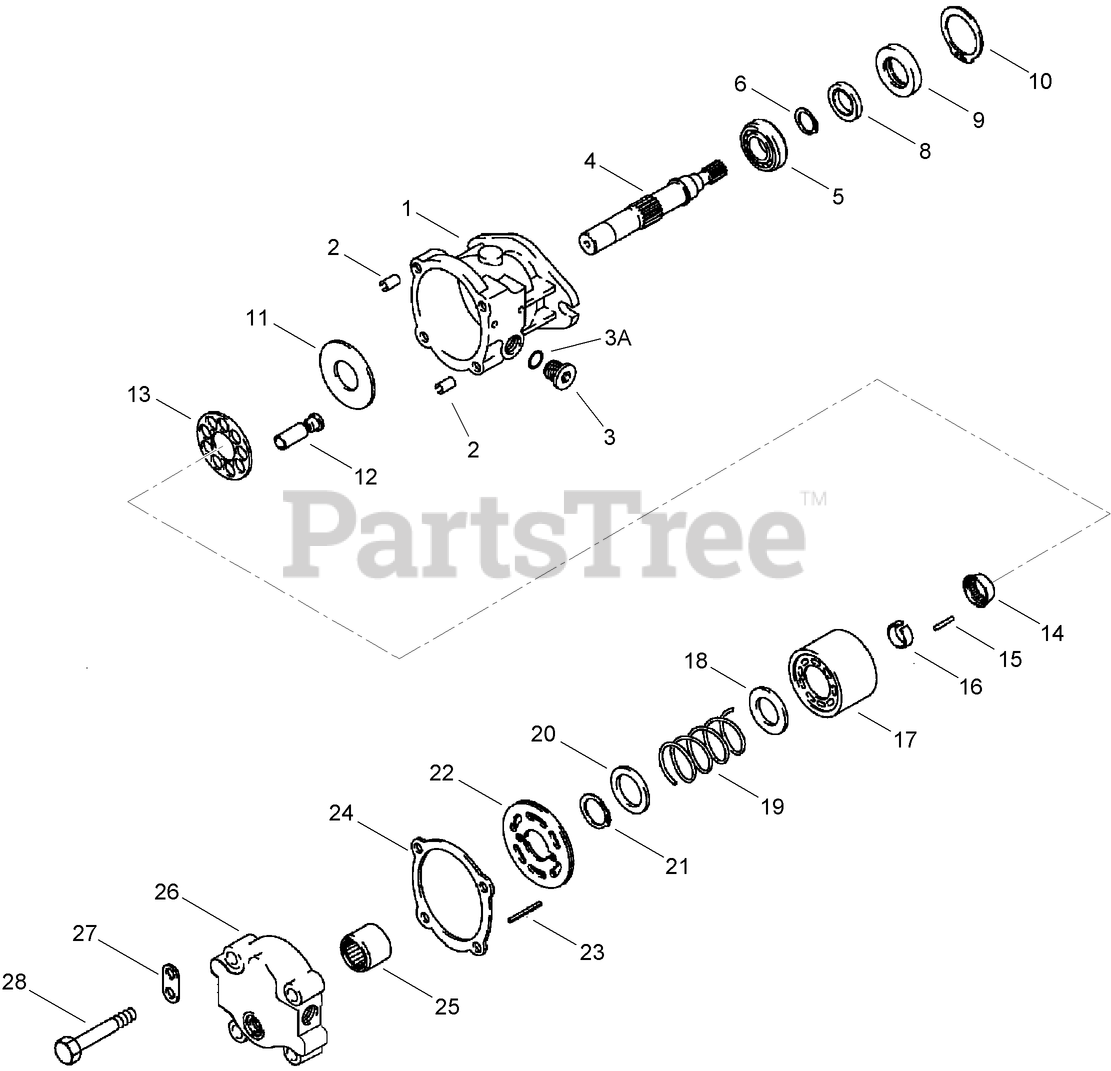

GROUND DRIVE MOTOR ASSEMBLY Parts Diagram

  • Title

Toro AU239920A2

HYD PISTON MOTOR ASM

Note: Not illustrated

$1714.99

$

Usually ships in 3-6 days

0

1

Toro AU251668A1

HOUSING - Motor

$873.99

$

Usually ships in 3-6 days

0

2

Toro AUN13994

PIN-Spring

$

$

Currently unavailable

3

Toro AU218-5211

PLUG-SOCKET HEAD

$4.49

$

Usually ships in 3-6 days

0

3A

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 6

0

4

Toro AU251667A1

SHAFT - Motor

$793.99

$

Usually ships in 3-6 days

0

5

Toro AUA29183

BEARING

$99.99

$

Usually ships in 3-6 days

0

6

Toro AU100-11137

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

8

Toro AUN14103

SEAL-BEARING, CARRIER

$84.99

$

Usually ships in 3-6 days

0

9

Toro AU241589A1

WASHER-SUPPORT, SEAL

$

$

Currently unavailable

10

Toro AU103-21281

RING-RETAINING, INT
(Superseded to 32151-88)

$5.99

$

Usually ships in 3-6 days

0

11

Toro AU100700A1

PLATE-Thrust

$

$

Currently unavailable

Toro AU100706A1

BLOCK ASSEMBLY - Cylinder

Note: Not illustrated

$

$

Currently unavailable

12

PISTON - Cylinder Block

Note: Not serviced separately

$

$

Not available

13

RETAINER - Piston

Note: Not serviced separately

$

$

Not available

14

GUIDE - Retainer

Note: Not serviced separately

$

$

Not available

15

PIN - Retaining, Guide to Shaft

Note: Not serviced separately

$

$

Not available

16

Ring - Retaining

Note: Not serviced separately

$

$

Not available

17

BLOCK - Cylinder

Note: Not serviced separately

$

$

Not available

18

SEAT - Spring, Block End

Note: Not serviced separately

$

$

Not available

19

SPRING - Cylinder Block

Note: Not serviced separately

$

$

Not available

20

SEAT - Spring, Cover End

Note: Not serviced separately

$

$

Not available

21

Ring - Retaining

Note: Not serviced separately

$

$

Not available

22

Toro AU100702A1

PLATE-Valve

$

$

Currently unavailable

23

Toro AU38-11210

PIN

$

$

Not available

24

Toro AU100701A1

GASKET-End Cap

$15.99

$

Usually ships in 3-6 days

0

25

Toro AUF62094

BEARING - Needle, Shaft
(Superseded to AUF62086)

$

$

Not available

26

Toro AU253471A1

COVER - End, with Ports

$

$

Not available

27

Toro AU100703A1

BRACKET-Lifting

$

$

Currently unavailable

28

Toro AU826-10080

BOLT - Hex, 10 - 1.5 x 80 mm, Class 10.9

$

$

Currently unavailable

29

Toro AU218-5158

PLUG - Hex, 1-1/16-12 inch O-Ring Boss

Note: Not illustrated

$8.99

$

Usually ships in 3-6 days

0

30

Toro AU237-6012

O-RING - 59/64 ID x 7/64 inch Wide

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0
