MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) FUEL TANK AND FUEL LINE ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

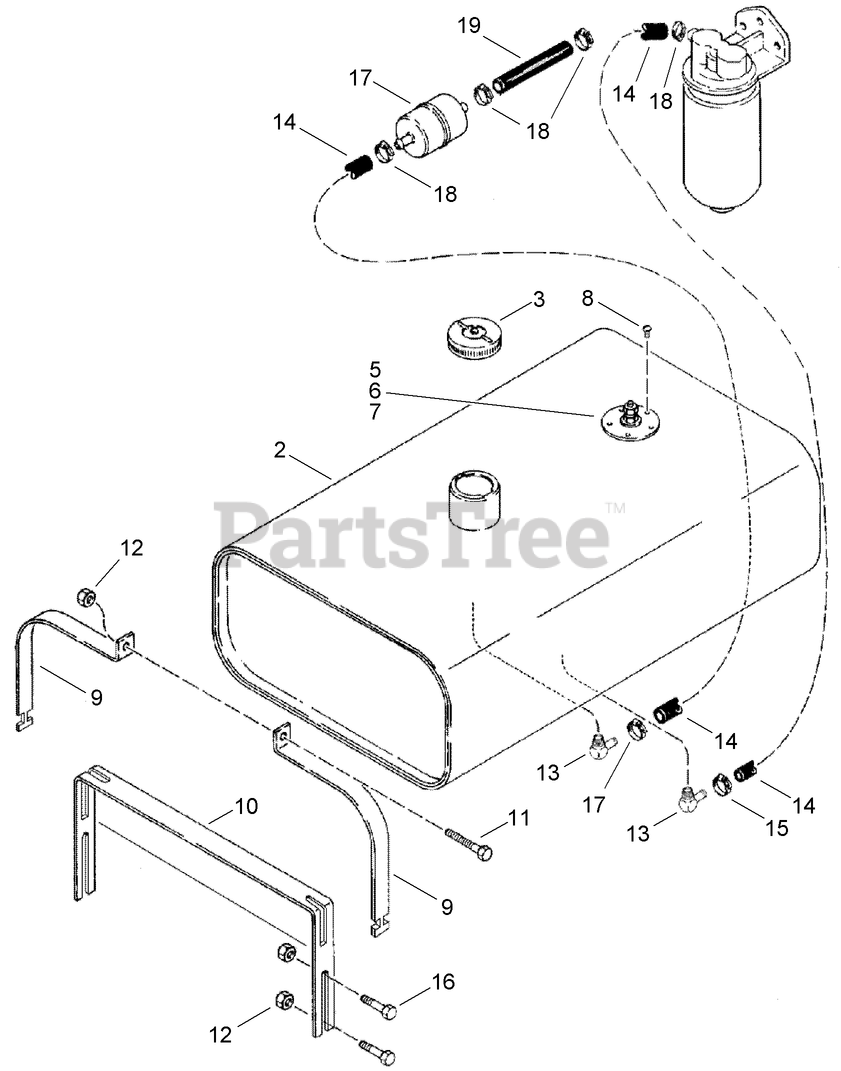

FUEL TANK AND FUEL LINE ASSEMBLY Parts Diagram

  • Title

Toro AUH673305

TANK-FUEL
(Superseded to 130-7379)

Note: Not illustrated

$1502.99

$

Usually ships in 3-6 days

0

2

TANK - Fuel

Note: Not serviced separately

$

$

Not available

3

Toro AUH151274

CAP - Fuel Tank
(Superseded to AU105612)

$48.99

$

Usually ships in 3-6 days

0

4

Toro AUN13697

SENDER ASSEMBLY - Fuel Tank

Note: Not illustrated

$418.99

$

Usually ships in 3-6 days

0

5

SENDER - Fuel Tank

Note: Not serviced separately

$

$

Not available

6

FLOAT - Sender

Note: Not serviced separately

$

$

Not available

7

GASKET - Sender

Note: Not serviced separately

$

$

Not available

8

Toro AU470-1108

SCREW - Machine, Pan Head Slotted, No. 10 NC x 1/2in

$

$

Not available

9

Toro AU105630

HOSE - Fuel Line
(Superseded to AU105630-03)

$20.99

$

Usually ships in 3-6 days

0

10

Toro AU105629

STRAP - Fuel Tank

$

$

Currently unavailable

11

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

12

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU217-294

STEM-90 (BARB HOSE)

$24.99

$

Usually ships in 3-6 days

0

14

Toro AUH433367

TANK ASSEMBLY - Fuel
(Superseded to AUA21561X)

$21.99

$

Usually ships in 3-6 days

0

15

Toro AU214-1704

CLAMP-Hose Type M #04

$2.99

$

Usually ships in 3-6 days

0

16

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

17

Toro AU105373

FILTER - Fuel, In-line (Includes Items 18 and 19)

$22.99

$

Usually ships in 3-6 days

0

18

Toro AU109748

CLAMP - Hose (Supplied with Item 17)

$

$

Currently unavailable

19

Toro AU106167

HOSE - Fuel Line (Supplied with Item 17)
(Superseded to AUA21561X)

$21.99

$

Usually ships in 3-6 days

0
