Maxi Sneaker Series E Trencher

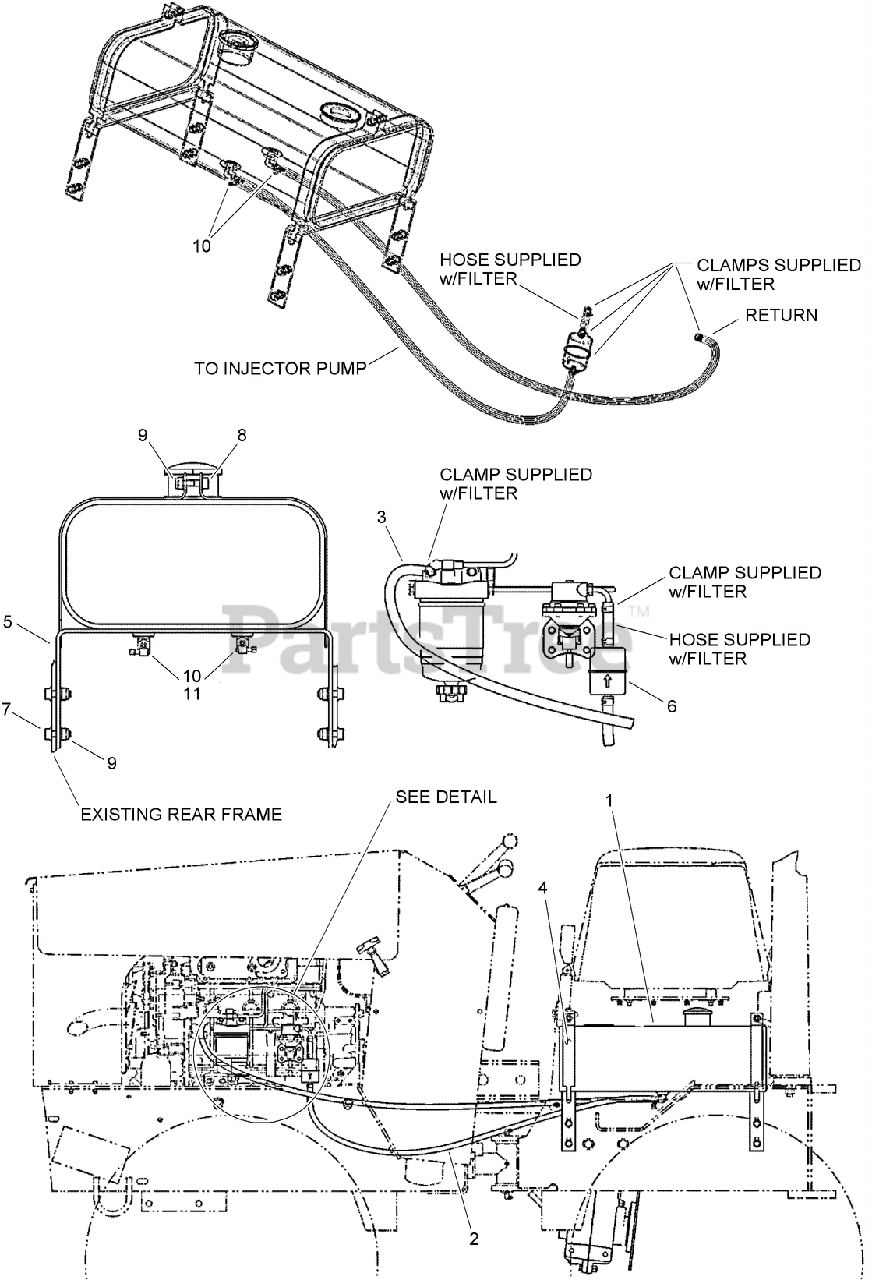

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

Toro AU125768

GROUP - FUEL SYSTEM REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH673305

TANK-FUEL
(Superseded to 130-7379)

$1502.99

$

Usually ships in 3-6 days

0

2

Toro AUH433367

TANK ASSEMBLY - Fuel
(Superseded to AUA21561X)

$21.99

$

Usually ships in 3-6 days

0

3

Toro AUH433367

TANK ASSEMBLY - Fuel
(Superseded to AUA21561X)

$21.99

$

Usually ships in 3-6 days

0

4

Toro AU105630

HOSE - Fuel Line
(Superseded to AU105630-03)

$20.99

$

Usually ships in 3-6 days

0

5

Toro AU105629

STRAP - Fuel Tank

$

$

Currently unavailable

6

Toro AU105373

BRACKET - Fuel Tank Mounting

$22.99

$

Usually ships in 3-6 days

0

7

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

8

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

9

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU214-1704

CLAMP-Hose Type M #04

$2.99

$

Usually ships in 3-6 days

0

11

Toro AU217-294

STEM-90 (BARB HOSE)

$24.99

$

Usually ships in 3-6 days

0
