MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) CRUMBER ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

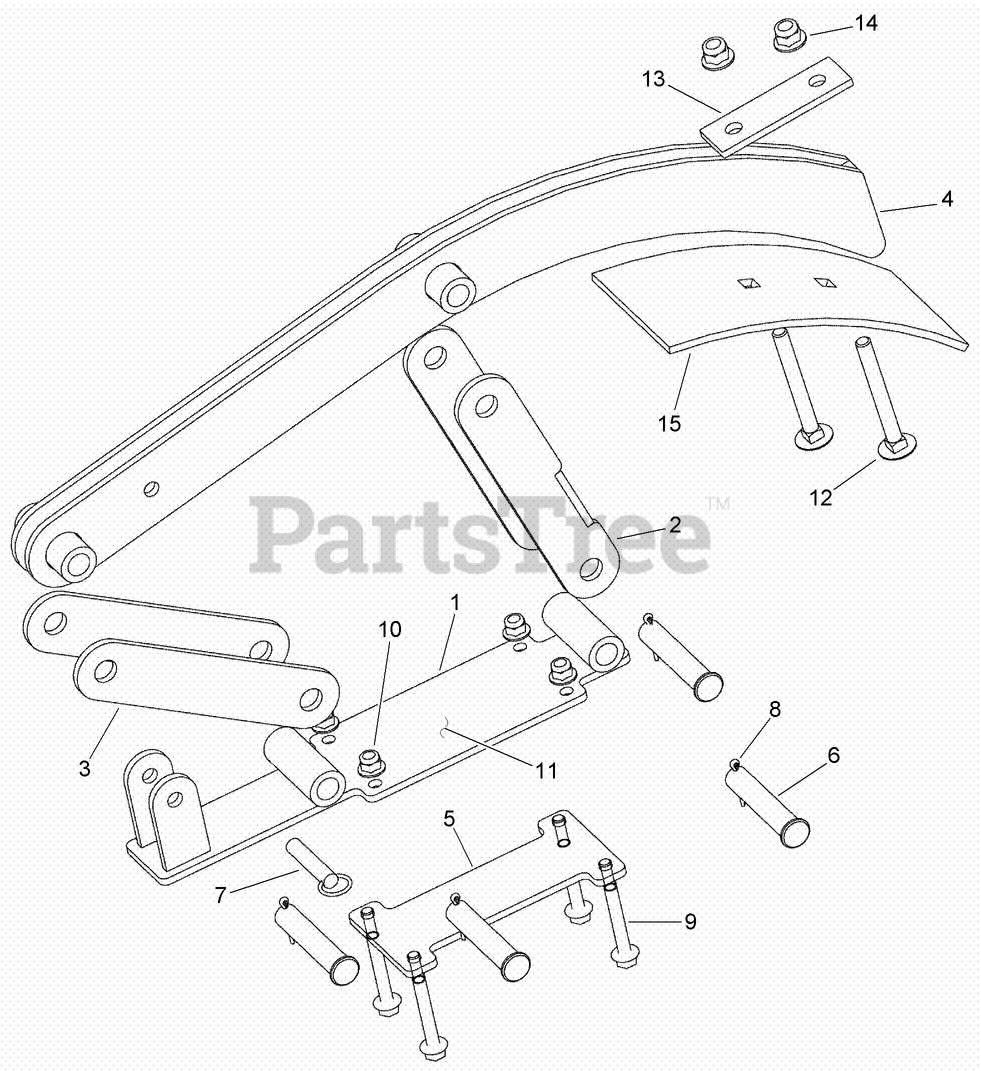

CRUMBER ASSEMBLY Parts Diagram

  • Title

Toro AU107246

CRUMBER ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU107244

PLATE-CRUMBER

$

$

Not available

2

Toro AU106945

LINKAGE-FRONT

$

$

Not available

3

Toro AU106926

LINK-REAR

$8.99

$

Usually ships in 3-6 days

0

4

Toro AU107250

PLATE-BLADE

$

$

Not available

5

Toro AU107284

PLATE-CLAMP

$47.99

$

Usually ships in 3-6 days

0

6

Toro AU106947

PIN-LINKAGE

$

$

Not available

7

Toro AU106933

PIN-RETAINING

$

$

Not available

8

Toro AU432-1020

PIN - Cotter, .156 x 1.25 in Zn

$

$

Not available

9

Toro AU100339

SCREW-FLANGE, METRIC

$2.99

$

Usually ships in 3-6 days

0

10

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

11

Toro AU419470A1

DECAL-DANGER, ENTANGLE HAZZARD

$68.99

$

Usually ships in 3-6 days

0

12

Toro AU100570

BOLT-CARRIAGE, METRIC

$35.99

$

Usually ships in 3-6 days

0

13

Toro AU107375

SPACER

$3.49

$

Usually ships in 3-6 days

0

14

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

15

Toro AU107258

PLATE-CRUMBERSHOE, 4 INCH

$

$

Currently unavailable

15

Toro AU107372

PLATE-CRUMBERSHOE, 6 INCH

$

$

Not available

15

Toro AU107373

CRUMBER SHOE - 8in

$

$

Not available
