MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) CHASSIS, HOOD AND COVER ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

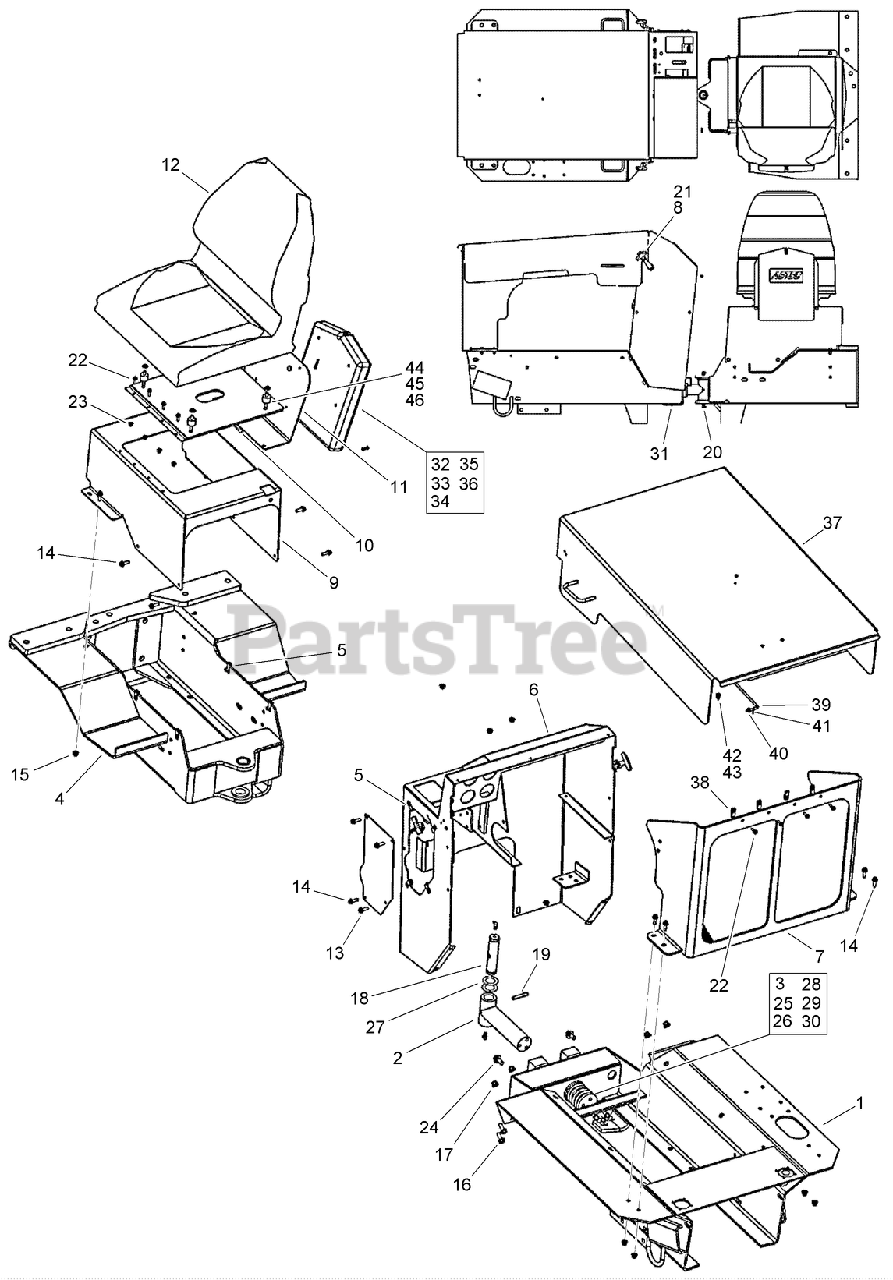

CHASSIS, HOOD AND COVER ASSEMBLY Parts Diagram

  • Title

Toro AU125481

GROUP - Chassis, Hood and Covers

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125487

FRAME - Front

$

$

Currently unavailable

2

Toro AU127310A1

PIVOT-ARTICULATION
(Superseded to AU127310A1-01)

$515.99

$

Usually ships in 3-6 days

0

3

Toro AUH182543

CAP

$24.99

$

Usually ships in 3-6 days

0

4

Toro AU108736

FRAME - Rear

$

$

Not available

5

Toro AU100862

NUT-U

$4.49

$

Usually ships in 3-6 days

0

6

Toro AU104825

CONSOLE

$

$

Currently unavailable

7

Toro AU125492

WELDMENT - Grill/Hood Support
(Superseded to 125-8456-01)

$934.99

$

Usually ships in 3-6 days

0

8

Toro AU235363A1

LATCH - Flexible Draw

$46.99

$

Usually ships in 3-6 days

0

9

Toro AU125669

SUPPORT - Seat

$

$

Currently unavailable

10

Toro AU125670

PLATE - Seat Mounting

$

$

Currently unavailable

11

Toro AU125684

PLATE - Mounting, Operators Manual

$

$

Currently unavailable

12

Toro AU125667

SEAT-NON SUSPENSION

$631.99

$

Usually ships in 3-6 days

0

13

Toro AU119023

PANEL - Cover

$

$

Not available

14

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

15

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

17

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

18

Toro AUH371054

PIN-PIVOT

$336.99

$

Usually ships in 3-6 days

0

19

Toro AU38-12436

PIN-SLOTTED, SPRING
(Superseded to 117-5479)

$2.49

$

Usually ships in 3-6 days

0

20

Toro AU219-55

FITTING-grease, 90 degree, 1/8 PT x 27/32 inch

$

$

Not available

21

Toro AU151-558

RIVET - Blind Brk Mdrl .187 x .450 in ZND
(Superseded to 3269-7)

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

23

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

24

Toro AU100414

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

25

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

26

Toro AUH95877

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

27

Toro AUH257915

SHIM

$10.99

$

Usually ships in 3-6 days

0

28

Toro AUH191155

SHIM

$23.99

$

Usually ships in 3-6 days

0

29

Toro AUH191148

SHIM-THIN

$39.99

$

Usually ships in 3-6 days

0

30

Toro AU391-620

WIRE-STEEL

$3.99

$

Usually ships in 3-6 days

0

31

Toro AUH672990

FITTING-GREASE
(Superseded to AU219-417)

$17.99

$

Usually ships in 3-6 days

0

32

Toro AU103216

HOLDER-MANUAL, OPERATOR

$68.99

$

Usually ships in 3-6 days

0

33

Toro AUR46465

LANYARD

$22.99

$

Usually ships in 3-6 days

0

34

Toro AU151-522

RIVET

$0.99

$

Usually ships in 3-6 days

0

35

Toro AUR40745

STRAP-TIE, NYLON

$0.99

$

Usually ships in 3-6 days

0

36

Toro AUR46463

POST-MANUAL

$1.99

$

Usually ships in 3-6 days

0

37

Toro AU125507

WELDMENT, Hood

$

$

Not available

38

Toro AU108120

NUT-U

$5.49

$

Usually ships in 3-6 days

0

39

Toro AU107384

PROP ROD - Hood

$52.99

$

Usually ships in 3-6 days

0

40

Toro AU496-21028

WASHER

$

$

Not available

41

Toro AU432-612

PIN - Cotter .094 x .75 in ZN

$0.99

$

Usually ships in 3-6 days

0

42

Toro AU104990

HOLDER-PROP, ROD

$6.99

$

Usually ships in 3-6 days

0

43

Toro AU151-506

RIVET - Blind Brk Mdrl .125 x .400 in ZND

$0.99

$

Usually ships in 3-6 days

0

44

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

45

Toro AUH359216

MOUNT-RADIATOR

$21.99

$

Usually ships in 3-6 days

0

46

Toro AU231-5145

NUT-Hex Serrated Flange, 5/16 inch NC
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0
