MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) BASIC UNIT ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

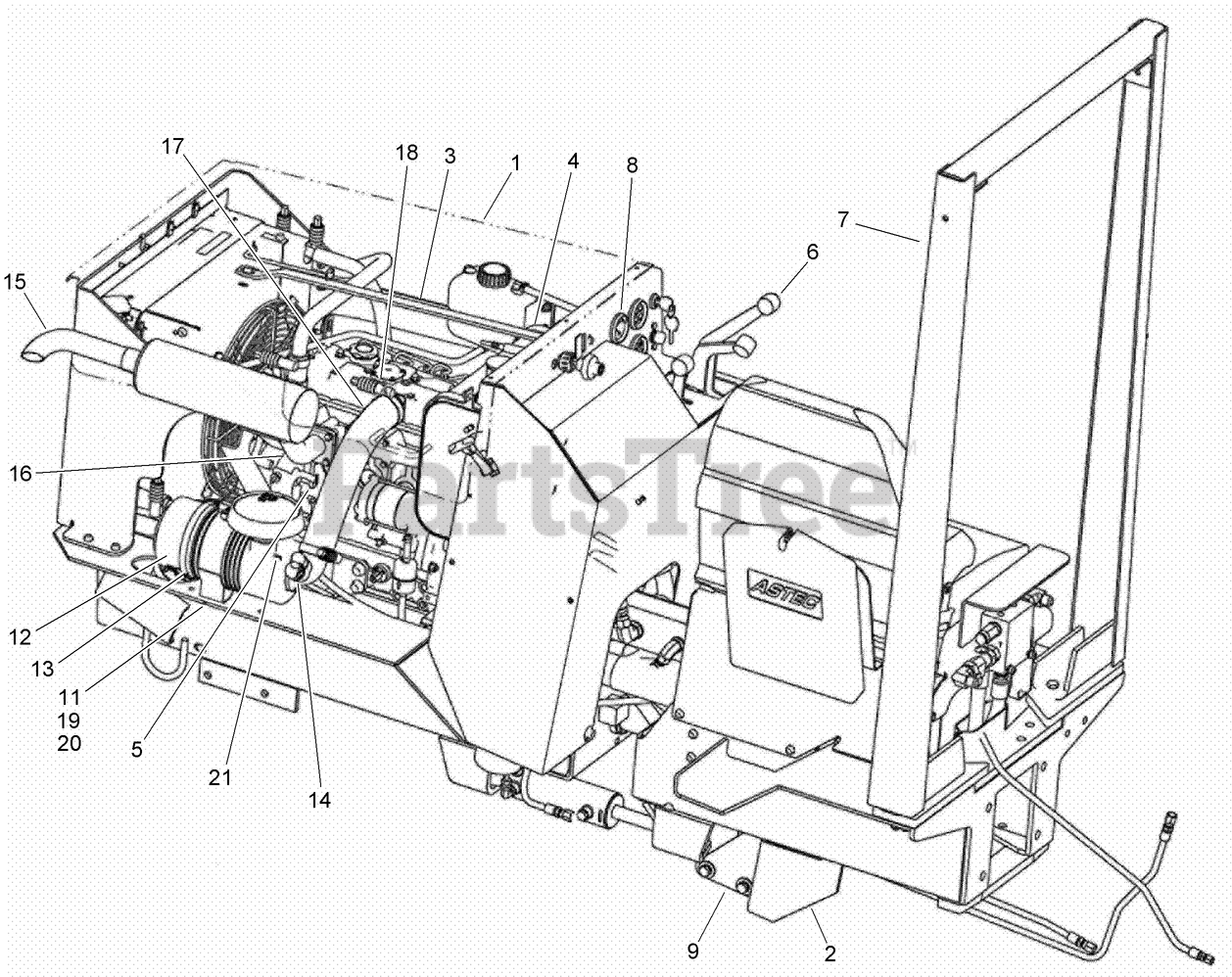

BASIC UNIT ASSEMBLY Parts Diagram

  • Title

Toro AU124871

ASSEMBLY - BASIC UNIT

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125481

GROUP - Chassis, Hood and Covers

$

$

Currently unavailable

2

Toro AU111068A1

POWER TRAIN GROUP

$

$

Currently unavailable

3

Toro AU125482

GROUP - Engine and Controls

$

$

Currently unavailable

4

Toro AU106372

HYDRAULIC PLUMBING REF

$

$

Currently unavailable

5

Toro AU125768

GROUP - FUEL SYSTEM REF

$

$

Currently unavailable

6

Toro AU105945

GROUND DRIVE CONTROLS REF

$

$

Currently unavailable

7

Toro AU114506A1

GROUP - Roll Over Protection System

$

$

Currently unavailable

8

Toro AU125687

INSTRUMENTS AND ELECTRICAL REF

$

$

Currently unavailable

9

Toro AU111076A1

BRAKE SYSTEM

$

$

Currently unavailable

10

Toro AU179261A1

GROUP - Fluids and Misc

Note: Not illustrated

$

$

Currently unavailable

11

Toro AU104649

BAND-AIR CLEANER
(Superseded to 100-4825)

$116.99

$

Usually ships in 3-6 days

0

12

Toro AU125616

ASSEMBLY - Air Cleaner

$

$

Not available

13

Toro AU104635

HOOD-RAIN
(Superseded to 105-2539)

$

$

Not available

14

Toro AU292950A1

SWITCH-PRESSURE, VACUUM

$56.99

$

Usually ships in 3-6 days

0

15

Toro AU125676

MUFFLER - Exhaust

$

$

Not available

16

Toro AU126849

HOSE - Radiator

$

$

Currently unavailable

17

Toro AU125799

HOSE - Air Cleaner

$

$

Not available

18

Toro AU110569

CLAMP-TORQUE, CONSTANT

$28.99

$

Usually ships in 3-6 days

0

19

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

21

Toro AU125538

SCREW, METRIC FLANGE w/BODY - M12 x 25

$

$

Currently unavailable
