Maverick HD - Bad Boy Zero-Turn Mower (2025) VANGUARD Parts Diagram

Zero-Turn Mower

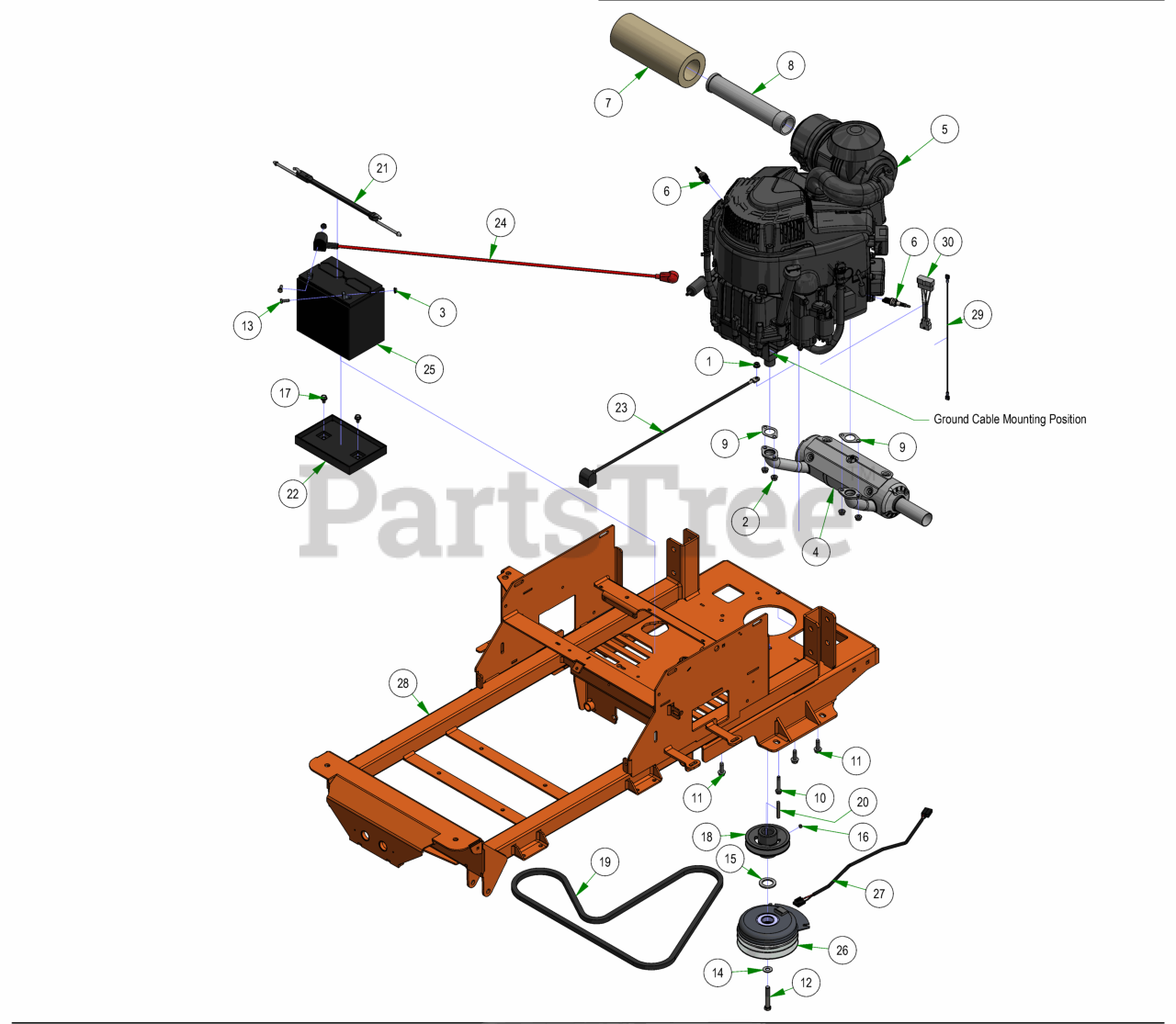

VANGUARD Parts Diagram

  • Title

1

Bad Boy 013-0101-00

5/16-18 Gr5 Distorted-Thread Flange Locknut

$

$

Currently unavailable

2

Bad Boy 013-8250-00

Muffler Nut for 015-0511-00 Briggs

$

$

Currently unavailable

3

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 015-0074-00

Maverick HD 28 EFI Muffler

$

$

Currently unavailable

5

Bad Boy 015-0092-00

28HP Briggs Vanguard 810cc

$2849.99

$

Usually ships in 4-7 days

0

6

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

7

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 12

0

8

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 5

0

9

Bad Boy 015-2709-00

Exhaust Gasket

$8.49

$

In Stock, Qty 5

0

10

Bad Boy 018-0114-00

5/16-18x1-3/4 Gr5 Hex Flange Screw Zinc Clear

$

$

Not available

11

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC

$1.99

$

In Stock, Qty 11

0

12

Bad Boy 018-5300-21

7/16-20 X 2.5" HEX Bolt GR.8 W/Patch

$3.99

$

Usually ships in 4-7 days

0

13

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

14

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

15

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

16

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

18

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

19

Bad Boy 041-7400-00

75.8" Pump Belt

$68.99

$

In Stock, Qty 16

0

20

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

21

Bad Boy 043-8930-00

2023 Rubber Battery Hold Down Strap

$22.99

$

In Stock, only 4 left!

0

22

Bad Boy 043-8931-00

Battery Tray

$21.99

$

Usually ships in 4-7 days

0

23

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

24

Bad Boy 064-8060-00

36" Red Battery Cable

$22.99

$

Usually ships in 4-7 days

0

25

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

26

Bad Boy 070-1000-00

Clutch

$319.99

$

In Stock, Qty 20+

0

27

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

28

Bad Boy 070-2503-00

2025 Maverick Frame

$

$

Currently unavailable

29

Bad Boy 086-9005-00

Compact Outlaw/Honda Starter Jumper Wire

$

$

Not available

30

Bad Boy 086-9015-21

2021 28 Briggs EFI Pigtail

$22.99

$

Usually ships in 4-7 days

0
