Maverick HD - Bad Boy Zero-Turn Mower (2025) LOWER FRAME Parts Diagram

Zero-Turn Mower

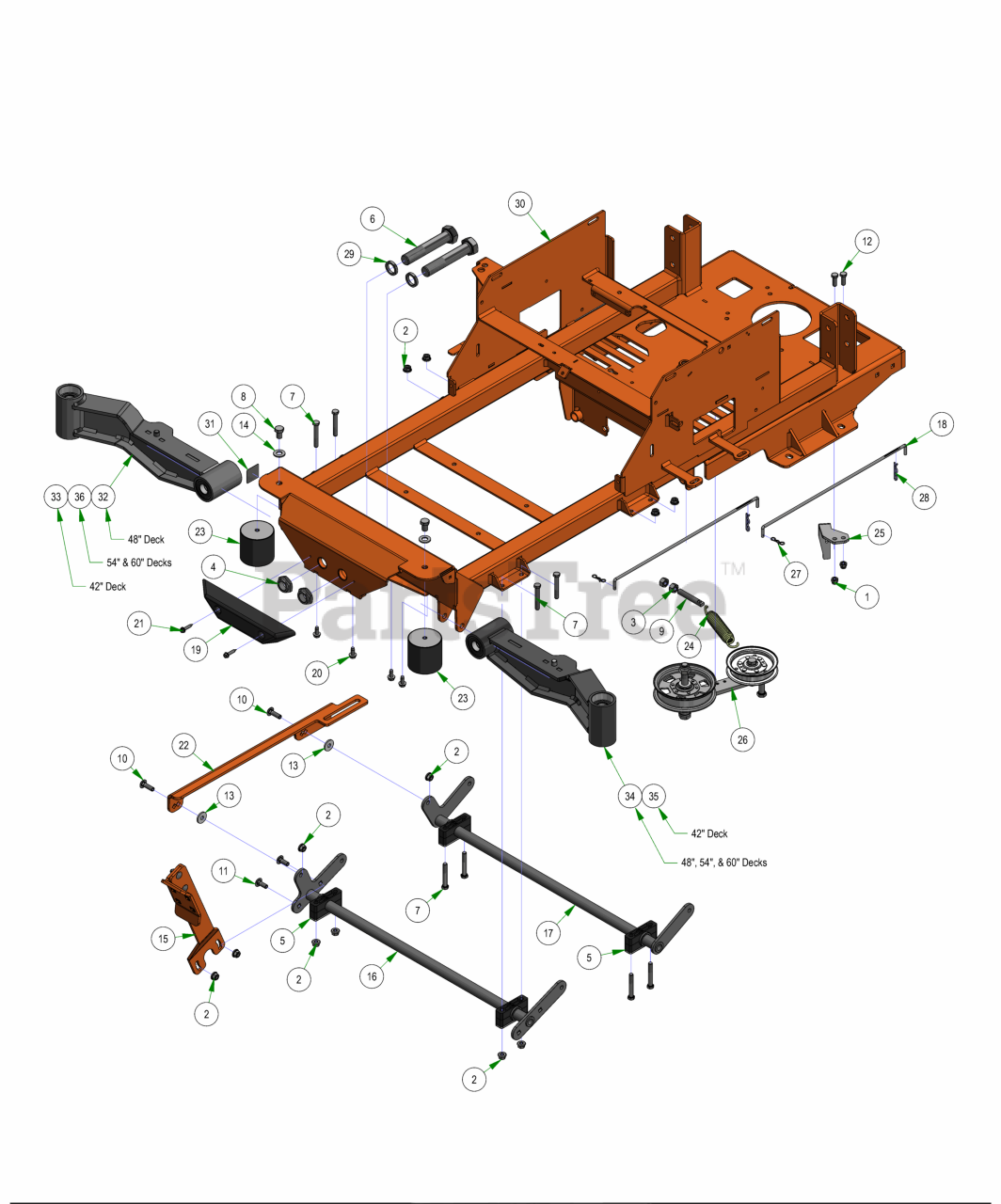

LOWER FRAME Parts Diagram

  • Title

1

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 10

0

5

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-0028-00

3/8-16 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-1055-00

1/2-13 X 3/4 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

10

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

11

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

13

Bad Boy 019-2073-00

.390 ID X 1.12 OD X .125 THK FLAT WASHER NYLON

$1.99

$

In Stock, only 3 left!

0

14

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 026-0019-01

Foot Pedal Assembly

$99.99

$

Usually ships in 4-7 days

0

16

Bad Boy 028-0002-00

Actuator Bar Front- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

0

17

Bad Boy 028-0003-00

Actuator Bar Rear- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

0

18

Bad Boy 028-0070-00

Neutral Rod

$13.99

$

Usually ships in 4-7 days

0

19

Bad Boy 029-7040-00

Bumper EZT

$33.99

$

Usually ships in 4-7 days

0

20

Bad Boy 030-7042-00

5/16-18 X 3/4 HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

21

Bad Boy 030-7047-00

1/4-14 X 1-1/4 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

22

Bad Boy 031-0510-00

2017 MZ/ZT Actuator Linkage

$49.99

$

Usually ships in 4-7 days

0

23

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

0

24

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

25

Bad Boy 039-0267-00

2025 ZT Clutch Bracket

$22.99

$

Usually ships in 0 days

0

26

Bad Boy 039-5944-05

Maverick Pump Idler

$75.99

$

Usually ships in 4-7 days

0

27

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

28

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

29

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

$

In Stock, Qty 9

0

30

Bad Boy 070-2503-00

2025 Maverick Frame

$

$

Currently unavailable

31

Bad Boy 091-8002-00

Independetly Articulating Front Suspension Arms Patent Decal

$5.99

$

Usually ships in 4-7 days

0

32

Bad Boy 250-2751-21

2021 Maverick RH Short Front Suspension Arm Assy (48")

$227.99

$

Usually ships in 4-7 days

0

33

Bad Boy 250-2752-22

2022 Maverick RH Front Suspension Arm Assy (42'')

$205.99

$

Usually ships in 0 days

0

34

Bad Boy 250-2801-21

2021 Maverick LH Front Suspension Arm Assy (48", 54" & 60")

$151.99

$

Usually ships in 4-7 days

0

35

Bad Boy 250-2802-22

2022 Maverick LH Front Suspension Arm Assy (42'')

$170.99

$

Usually ships in 4-7 days

0

36

Bad Boy 250-2851-21

2021 Maverick RH Long Front Suspension Arm Assy (54" & 60")

$170.99

$

Usually ships in 4-7 days

0
