Maverick HD - Bad Boy Zero-Turn Mower (2024) UPPER FRAME Parts Diagram

Zero-Turn Mower

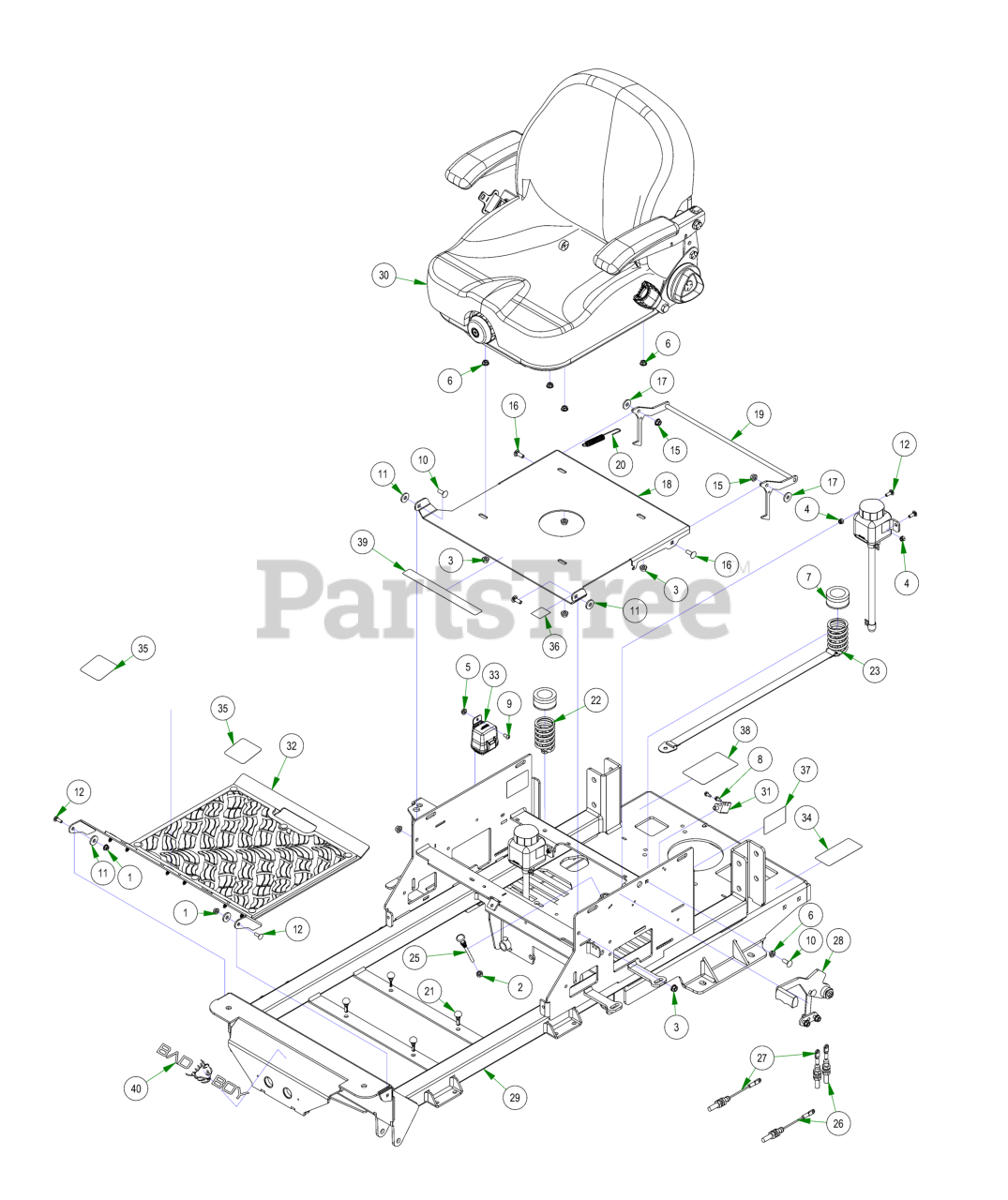

UPPER FRAME Parts Diagram

  • Title

1

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

4

Bad Boy 013-8073-00

1/4-20 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

7

Bad Boy 014-8047-00

Seat Spring Cap Cover

$2.49

$

In Stock, Qty 6

0

8

Bad Boy 018-1080-00

12-24 X 1/2 HEX WASHER UNLSOT F TCS ZINC

$2.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, only 4 left!

0

10

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

11

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

12

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

13

Bad Boy 026-0205-22

2022 Maverick Rear Cover Assembly

$182.99

$

Usually ships in 4-7 days

0

14

Bad Boy 026-1016-21

MAVERICK/COMPACT OUTLAW SEAT PLATE ASSEMBLY

$

$

Currently unavailable

15

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

16

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

17

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

18

Bad Boy 026-1016-00

Seat Plate 2016

$116.99

$

In Stock, only 2 left!

0

19

Bad Boy 028-0090-00

Seat Latch Rod Assembly

$41.99

$

Usually ships in 4-7 days

0

20

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

21

Bad Boy 029-4011-00

2023 Floor Board Rubber Bumper

$1.49

$

Usually ships in 4-7 days

0

22

Bad Boy 034-8045-03

Seat Spring Assembly

$34.99

$

Usually ships in 4-7 days

0

23

Bad Boy 034-8045-22

2022 Mav/HD seat spring assembly with strap

$34.99

$

Usually ships in 4-7 days

0

24

Bad Boy 051-0016-00

ZT/Maverick Hydro Tank Hose

$9.99

$

Usually ships in 4-7 days

0

25

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

26

Bad Boy 064-3050-21

2021 Load Balanced Brake Cable 1

$60.99

$

In Stock, only 4 left!

0

27

Bad Boy 064-3051-21

2021 Load Balanced Brake Cable 2

$60.99

$

Usually ships in 4-7 days

0

28

Bad Boy 069-1051-21

2021 Load Balanced Brake Handle Assembly

$75.99

$

Usually ships in 4-7 days

0

29

Bad Boy 070-2303-00

2023 Maverick Frame - Painted

$

$

Currently unavailable

30

Bad Boy 071-6065-22

2022 Suspension Seat w/Seatbelt

$946.99

$

Usually ships in 4-7 days

0

31

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

32

Bad Boy 079-3470-21

2021 Maverick Floorboard Assembly

$148.99

$

Usually ships in 4-7 days

0

33

Bad Boy 086-3600-00

2024 Wiring Harness with Clips

$341.99

$

Usually ships in 4-7 days

0

34

Bad Boy 091-0015-24

2024 EPA Build Date Punch Decal

$

$

Currently unavailable

35

Bad Boy 091-0021-00

2018 Maverick/2021 ZT Anti-Skid Steering Control Decals

$12.99

$

Usually ships in 4-7 days

0

36

Bad Boy 091-0339-18

2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal

$12.99

$

Usually ships in 4-7 days

0

37

Bad Boy 091-1020-00

Hydraulic Decal

$1.49

$

Usually ships in 4-7 days

0

38

Bad Boy 091-3017-50

Maverick Pump Belt Decal

$5.49

$

Usually ships in 4-7 days

0

39

Bad Boy 091-3150-00

Outlaw Warning Decal

$11.99

$

In Stock, only 2 left!

0

40

Bad Boy 091-4063-00

Flying Bulldog Front Bumper Decal

$13.99

$

Usually ships in 4-7 days

0
