Maverick HD - Bad Boy Zero-Turn Mower (2024) FUEL TANK & REAR COVER Parts Diagram

Zero-Turn Mower

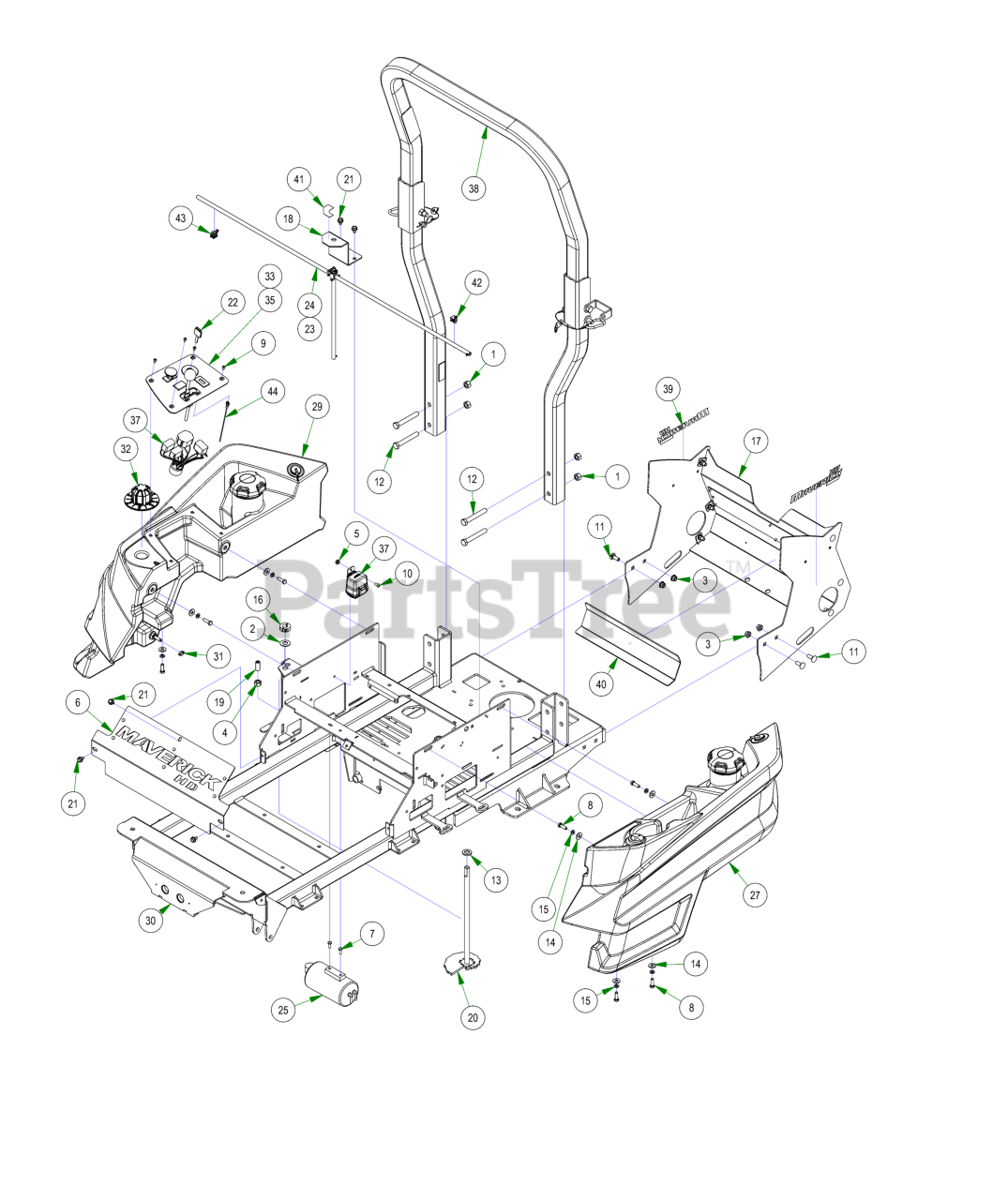

FUEL TANK & REAR COVER Parts Diagram

  • Title

1

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

$3.49

$

Usually ships in 4-7 days

0

2

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 014-1001-00

Maverick HD Cooler Cover

$125.99

$

Usually ships in 4-7 days

0

7

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

8

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

9

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, Qty 9

0

10

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-6054-00

1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 3 left!

0

13

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

15

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

16

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

17

Bad Boy 026-0205-22

2022 Maverick Rear Cover Assembly

$182.99

$

Usually ships in 4-7 days

0

18

Bad Boy 026-0309-00

Fuel Shut Off Mounting Plate

$22.99

$

Usually ships in 4-7 days

0

19

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

20

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

21

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

22

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

23

Bad Boy 051-2014-22

2023 Maverick HD Fuel Line with Shutoff

$

$

Currently unavailable

24

Bad Boy 051-2014-HD

2023 Maverick HD Fuel Line with Shutoff

$

$

Currently unavailable

25

Bad Boy 067-0020-23

2023 HD Kohler/Kawasaki EPA Canister Assembly

$

$

Currently unavailable

26

Bad Boy 067-0020-64

2023 Maverick HD Honda EPA Canister Assembly

$

$

Not available

27

Bad Boy 067-2021-00

2021 Maverick Left Side Tank

$387.99

$

Usually ships in 4-7 days

0

28

Bad Boy 067-9903-00

Fuel Pick-up for 067-2021-00

$

$

Currently unavailable

29

Bad Boy 067-2022-00

2022 Maverick HD RH Fuel Tank

$512.99

$

Usually ships in 4-7 days

0

30

Bad Boy 070-2303-00

2023 Maverick Frame - Painted

$

$

Currently unavailable

31

Bad Boy 072-8076-00

2 EAR CLAMP 12.5mm-15mm

$2.49

$

Usually ships in 4-7 days

0

32

Bad Boy 077-9000-00

MZ/ZT Deck Height Dial

$22.99

$

In Stock, only 2 left!

0

33

Bad Boy 079-3560-21

Maverick HD EFI Control Panel Assy

$

$

Currently unavailable

34

Bad Boy 079-3560-22

2022 Maverick HD Honda Control Panel Assembly

$

$

Not available

35

Bad Boy 079-3560-23

2023 Control Panel Assembly

$

$

Currently unavailable

36

Bad Boy 086-3002-00

Honda E-Throttle Adapter

$

$

Not available

37

Bad Boy 086-3600-00

2024 Wiring Harness with Clips

$341.99

$

Usually ships in 4-7 days

0

38

Bad Boy 089-0005-00

2016 2x2 ROPS

$452.99

$

Usually ships in 4-7 days

0

39

Bad Boy 091-0513-00

Maverick HD Back Plate Decal

$1.99

$

Usually ships in 4-7 days

0

40

Bad Boy 091-4050-00

Heat Shield (Fiberglass Adhesive)

$15.99

$

Usually ships in 4-7 days

0

41

Bad Boy 091-6021-00

Maverick HD Shut Off Valve Decal

$2.49

$

Usually ships in 4-7 days

0

42

Bad Boy 214-1007-00

Edge Clip With Ziptie

$

$

Currently unavailable

43

Bad Boy 214-1008-00

Edge Clip With Ziptie

$

$

Currently unavailable

44

Bad Boy 216-1000-17

2017 MZ/ZT/MAV Tach Wire Assy

$7.99

$

Usually ships in 4-7 days

0
