Maverick HD - Bad Boy Zero-Turn Mower (2024) FRAME SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

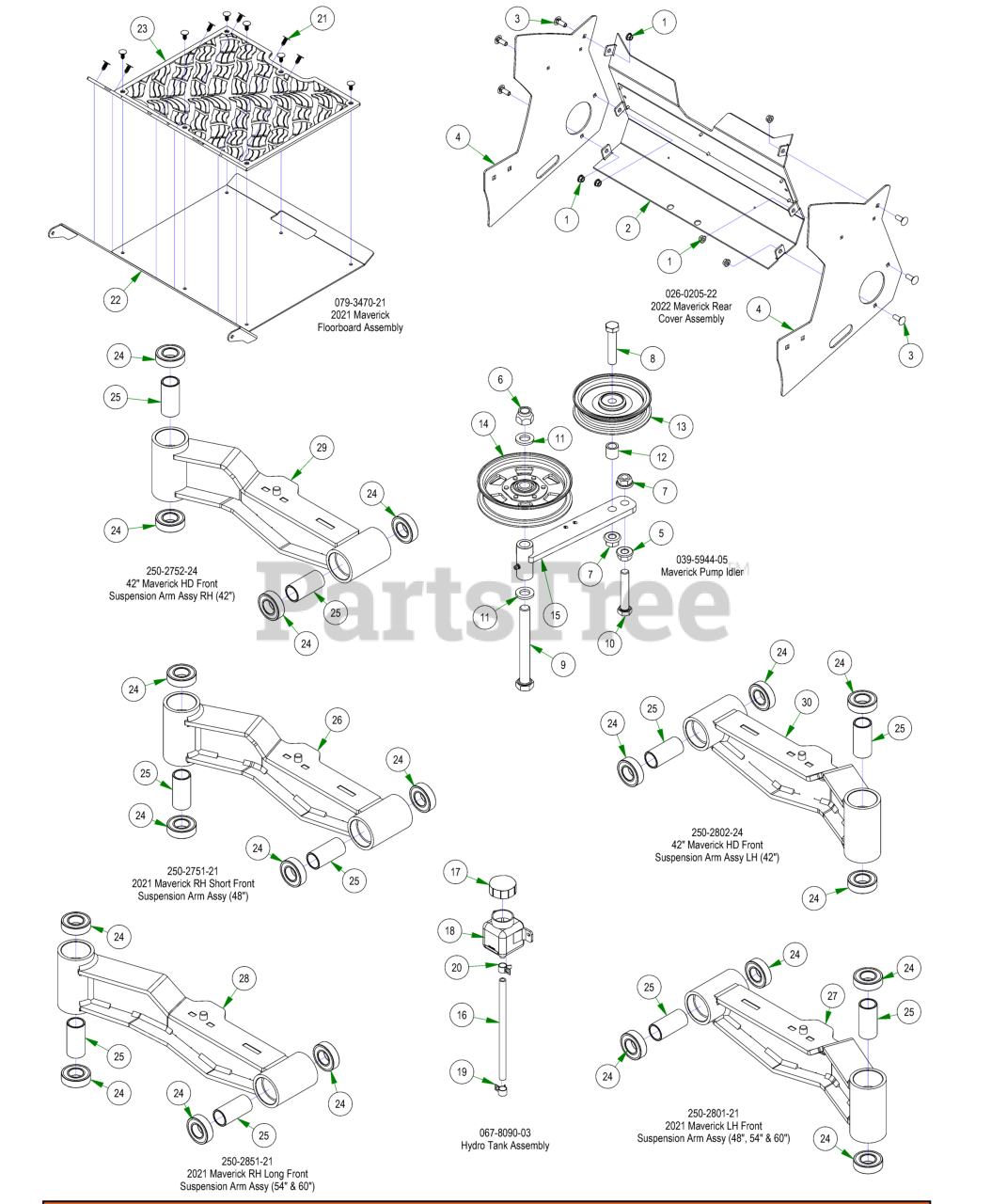

FRAME SUB ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

2

Bad Boy 014-5300-00

2021 Maverick Rear Cover Assembly

$219.99

$

Usually ships in 4-7 days

0

3

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 026-0226-00

2022 Maverick Rear Cover Side Plate - Painted

$45.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

6

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

7

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 018-0015-00

1/2-13 X 2-1/2 HEX CAP SCREW GR 5 ZINC

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-6016-00

5/8-11 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

11

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

12

Bad Boy 025-5203-00

.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC

$3.49

$

In Stock, Qty 15

0

13

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

14

Bad Boy 033-8000-00

5 3/4 Idler Pulley, 5/8 Bore

$37.99

$

In Stock, only 3 left!

0

15

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

16

Bad Boy 051-0016-00

ZT/Maverick Hydro Tank Hose

$9.99

$

Usually ships in 4-7 days

0

17

Bad Boy 066-5050-00

Hydraulic Tank Cap

$16.99

$

In Stock, only 1 left!

0

18

Bad Boy 067-8090-00

350ml Expansion Tank

$33.99

$

In Stock, Qty 9

0

19

Bad Boy 072-8065-00

3/8" Hose Clamp

$1.49

$

In Stock, only 2 left!

0

20

Bad Boy 072-8066-00

1/2 Hose Clamp

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

22

Bad Boy 079-3470-18

2018 Maverick Floorboard

$113.99

$

Usually ships in 4-7 days

0

23

Bad Boy 081-4001-00

2021 Maverick Floor Mat W/ Reaper Tread

$56.99

$

Usually ships in 4-7 days

0

24

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

25

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

26

Bad Boy 250-2751-00

2021 Maverick I-Beam Front Arm RH Short Weldment - Painted

$113.99

$

Usually ships in 0 days

0

27

Bad Boy 250-2801-00

2021 Maverick I-Beam Front Arm LH Weldment - Painted

$99.99

$

Usually ships in 4-7 days

0

28

Bad Boy 250-2851-00

2021 Maverick I-Beam Front Arm RH Long Weldment - Painted

$99.99

$

Usually ships in 4-7 days

0

29

Bad Boy 250-2752-00

2022 42" Maverick I-Beam Front Arm - RH - Painted

$

$

Currently unavailable

30

Bad Boy 250-2802-00

2022 42" Maverick I-Beam Front Arm - LH - Painted

$

$

Currently unavailable
