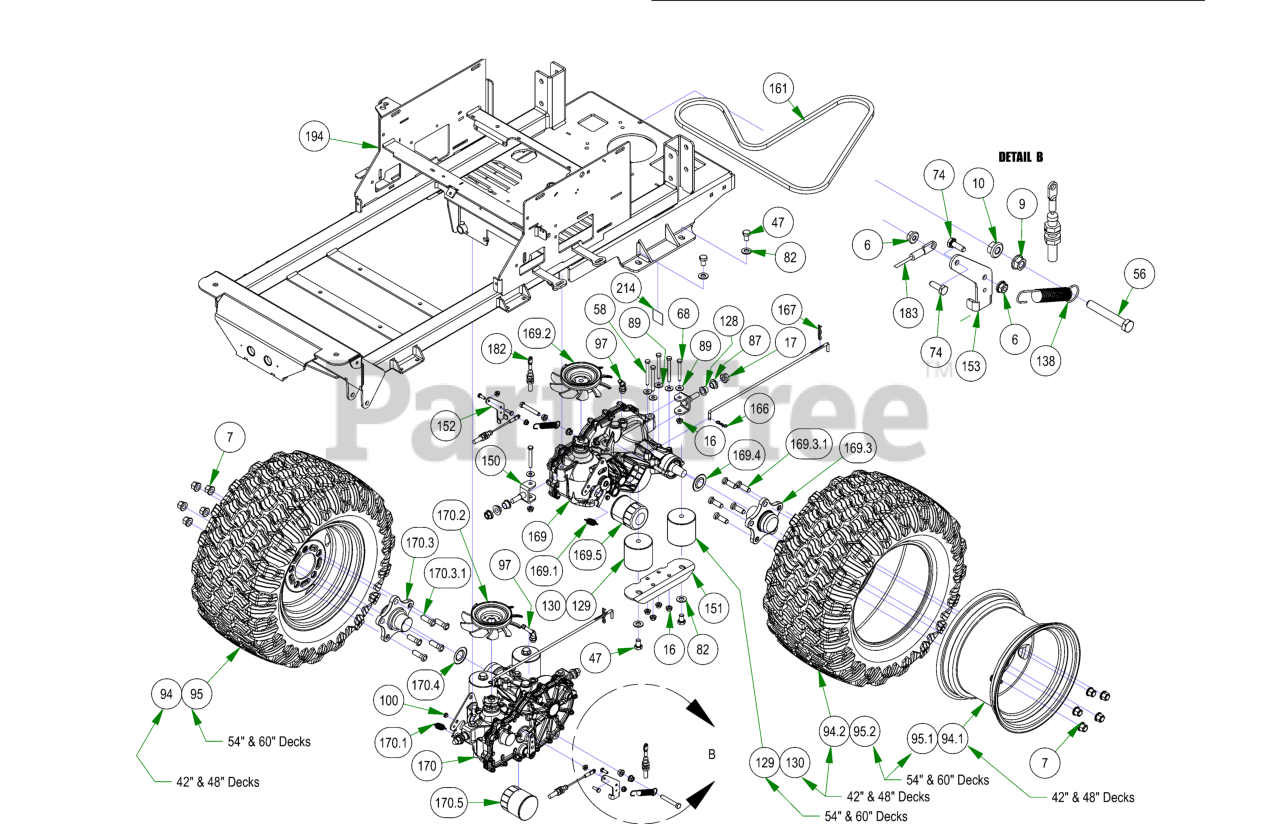

Maverick HD - Bad Boy Zero-Turn Mower (2023) TRANSAXLE Parts Diagram

Zero-Turn Mower

TRANSAXLE Parts Diagram

  • Title

6

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

7

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

9

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

16

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

47

Bad Boy 018-1055-00

1/2-13 X 3/4 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

56

Bad Boy 018-2071-00

3/8-16 X 2-1/2 HEX TAP BOLT (GR.5) ZINC Fully Threaded

$1.99

$

Usually ships in 4-7 days

0

58

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

63

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

68

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

74

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

82

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

Usually ships in 4-7 days

0

87

Bad Boy 019-8027-00

.525 ID SHOULDER WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

89

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

94

Bad Boy 022-4040-00

23x9-12 Reaper Turf Tire & Wheel Assembly

$341.99

$

Usually ships in 4-7 days

0

94.1

Bad Boy 022-3011-00

12x7" Black Wheel

$125.99

$

Usually ships in 4-7 days

0

94.2

Bad Boy 022-4035-00

23x9-12 Reaper Turf Tire Only

$196.99

$

Usually ships in 4-7 days

0

95

Bad Boy 022-4200-00

23x11-12 Reaper Turf Assembly

$331.99

$

Usually ships in 4-7 days

0

95.1

Bad Boy 022-4070-00

12x8.5 Black Wheel

$150.99

$

Usually ships in 4-7 days

0

95.2

Bad Boy 022-4195-00

Tire, 23/11x12 Reaper Turf

$257.99

$

Usually ships in 4-7 days

0

97

Bad Boy 024-1200-00

ZT Fitting, 3/8 x 3/8 45 Degree, 4603-6-6

$21.99

$

Usually ships in 4-7 days

0

100

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

115

Bad Boy 028-0070-00

Neutral Rod

$13.99

$

Usually ships in 4-7 days

0

128

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK FLANGED BEARING OIL-IMPREG BRNZ

$4.99

$

In Stock, Qty 11

0

129

Bad Boy 032-9000-00

Vibration Mount-Green Dot

$75.99

$

In Stock, only 2 left!

0

130

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

0

138

Bad Boy 034-1026-00

Brake Return Spring

$15.99

$

In Stock, only 3 left!

0

150

Bad Boy 039-0001-00

Maverick Rear Transaxle Pivot Bracket

$16.99

$

In Stock, only 3 left!

0

151

Bad Boy 039-1306-00

Rear Suspension Transaxle Mount

$16.99

$

Usually ships in 4-7 days

0

152

Bad Boy 039-1320-00

Brake Arm Ext (Left)

$6.49

$

Usually ships in 4-7 days

0

153

Bad Boy 039-1321-00

Brake Arm Ext (Right)

$8.49

$

Usually ships in 4-7 days

0

161

Bad Boy 041-7400-00

75.8" Pump Belt

$68.99

$

In Stock, Qty 16

0

166

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

167

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

169

Bad Boy 050-6000-01

Compact Outlaw/Revolt Transaxle Left 3400

$934.99

$

Usually ships in 4-7 days

0

169.1

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 7

0

169.2

Bad Boy 050-2072-00

Fan/Pulley Kit for CZT Also for the 050-0075-01

$68.99

$

Usually ships in 4-7 days

0

169.3

Bad Boy 050-2077-00

5 Bolt Hub Kit

$109.99

$

Usually ships in 4-7 days

0

169.3.1

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 20+

0

169.4

Bad Boy 050-8011-00

Seal Kit for 3400 Transaxle fits the 050-6000-01 / 050-6001-01

$125.99

$

Usually ships in 4-7 days

0

169.5

Bad Boy 063-1050-00

ZT Hydraulic Filter

$24.99

$

In Stock, Qty 20+

0

170

Bad Boy 050-6001-01

Compact Outlaw/Revolt Transaxle Right 3400

$934.99

$

Usually ships in 4-7 days

0

170.1

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 7

0

170.2

Bad Boy 050-2072-00

Fan/Pulley Kit for CZT Also for the 050-0075-01

$68.99

$

Usually ships in 4-7 days

0

170.3

Bad Boy 050-2077-00

5 Bolt Hub Kit

$109.99

$

Usually ships in 4-7 days

0

170.3.1

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 20+

0

170.4

Bad Boy 050-8011-00

Seal Kit for 3400 Transaxle fits the 050-6000-01 / 050-6001-01

$125.99

$

Usually ships in 4-7 days

0

170.5

Bad Boy 063-1050-00

ZT Hydraulic Filter

$24.99

$

In Stock, Qty 20+

0

182

Bad Boy 064-3050-21

2021 Load Balanced Brake Cable 1

$60.99

$

In Stock, only 4 left!

0

183

Bad Boy 064-3051-21

2021 Load Balanced Brake Cable 2

$60.99

$

Usually ships in 4-7 days

0

194

Bad Boy 070-2303-00

2023 Maverick Frame - Painted

$

$

Currently unavailable

214

Bad Boy 091-0019-00

Patent Decal

$3.99

$

Usually ships in 0 days

0
